MPSC Civil Engineering Services 2007 Paper II Previous Year Question Paper PDF

Maharashtra Government Jobs Engineer 2007

  • Year 2007
  • Conducted By Maharashtra Public Service Commission (MPSC)
  • Questions 5
  • Maximum Marks 200
  • Duration 3 Hours
  • Languages English

Exam Details

Detail Information
Examination Maharashtra Civil Engineering Services Main Examination
Year 2007
Conducting Body Maharashtra Public Service Commission (MPSC)
Paper Civil Engineering - Paper II
Subject Civil Engineering
Duration 3 Hours
Maximum Marks 200
Number of Questions 5
Question Type Descriptive / Subjective

This document contains the Previous Year Question Paper for the Maharashtra Civil Engineering Services Main Examination held in 2007 for Paper II. The paper, code 006312, is for Civil Engineering and has a duration of 3 hours with a maximum of 200 marks. It consists of descriptive questions divided into sections A, B, and C. Section A covers topics like surveying (traverse calculations, two-point problem, contour lines) and photogrammetry (tachometry, transition curves, satellite stations). Section B focuses on building materials and construction, including defects in paintings, seasoning methods, cement testing, fire protection systems, building ventilation, and regulations. Section C deals with geotechnical engineering and structural elements, such as safe bearing capacity, plate loading tests, brick masonry, bonding, steel vs. timber trusses, and damp proofing of roofs. The paper requires candidates to solve one question from each section, make suitable assumptions, and use non-programmable calculators. Log tables are permitted, but IS codes and steel table codes are not. The exam is conducted by the Maharashtra Public Service Commission (MPSC).

Major Topics Covered

  • Civil Engineering
  • Surveying
  • Traverse Surveying
  • Contour Lines
  • Tachometry
  • Transition Curves
  • Satellite Stations
  • Building Materials
  • Construction
  • Painting Defects
  • Cement Testing
  • Fire Protection
  • Building Ventilation
  • Building Planning
  • Geotechnical Engineering
  • Bearing Capacity
  • Brick Masonry
  • Roof Trusses
  • Damp Proofing
  • Maharashtra PSC
  • MPSC Exam
  • Engineering Services Exam
  • Previous Year Papers
  • Question Papers
  • 2007 Exam

Why This Paper is Important

  • Useful for Maharashtra Civil Engineering Services M preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

Instructions

  • PDT 2007 CIVIL ENGINEERING (Paper II) 006312 Time allowed: 3 Hours } {Maximum Marks: 200
  • Note: Solve one question from each section.
  • (ii) If more than one questions are attempted in a section, the excess will be ignored.
  • Figures to the right indicate the number of marks for the question / sub-question.
  • (iii) Make suitable assumptions, if necessary and state the same.
  • (iv) Use of log-tables, non-programmable calculators is permitted.
  • (v) Use of any kind of I.S. Codes and Steel Table Codes is NOT permitted.
  • (vii) Candidate should not write roll number, any name (including their own), signature address or any indication of their identity anywhere inside the answer book otherwise he will be penalised.

Questions (page 2)

Q1. The following are the lengths and bearings of the sides of a closed traverse ABCD.
15 Compute the length and bearing of line DA : Length in meter Line Bearings
AB 76.80 140°12′
BC 195.60 36°24'
CD
37.20 338°48'
7 DA ?

(a) Compute the length and bearing of line DA : Length in meter Line Bearings
AB 76.80 140°12′
BC 195.60 36°24'
CD
37.20 338°48'
DA ?

(b) Explain clearly the two point problem and how it is solved?

(c) What are the characteristics of contour lines?

  • (a) Compute the length and bearing of line DA : Length in meter Line Bearings
    AB 76.80 140°12′
    BC 195.60 36°24'
    CD
    37.20 338°48'
    DA ?
  • (b) Explain clearly the two point problem and how it is solved?
  • (c) What are the characteristics of contour lines?

Q2. (a) The following is the data relative to observations made on a vertically held staff

(a) The following is the data relative to observations made on a vertically held staff (a) with a tachometer fitted with an anallatic lens. The constant of the instrument was 100. Calculate the distance 'AB' and the reduced levels of 'A' and 'B': Vertical Instrument Height Staff WCB Hair Readings Remark Station of axis Station Angle 0°0' A 12° 25
1.88, 2.25, 2.62 O
1.56 R.L. of "O" 130.25 B +15°10 60° 45
1.83, 2.15, 2.47

(b) What is transition curve? Why it is used? Define shift of a curve.

(c) What is meant by a satellite station and reduction to centre? How would you correct the observation when made upon an eccentric signal?

  • (a) The following is the data relative to observations made on a vertically held staff (a) with a tachometer fitted with an anallatic lens. The constant of the instrument was 100. Calculate the distance 'AB' and the reduced levels of 'A' and 'B': Vertical Instrument Height Staff WCB Hair Readings Remark Station of axis Station Angle 0°0' A 12° 25
    1.88, 2.25, 2.62 O
    1.56 R.L. of "O" 130.25 B +15°10 60° 45
    1.83, 2.15, 2.47
  • (b) What is transition curve? Why it is used? Define shift of a curve.
  • (c) What is meant by a satellite station and reduction to centre? How would you correct the observation when made upon an eccentric signal?

Q3. (a) What are the common defects in paintings, their causes and remedial measures?

(a) What are the common defects in paintings, their causes and remedial measures?

(b) What are the methods of Artificial seasoning?

(c) Explain setting time test of cement and its importance.

  • (a) What are the common defects in paintings, their causes and remedial measures?
  • (b) What are the methods of Artificial seasoning?
  • (c) Explain setting time test of cement and its importance.

Q4.

(a) Describe various types of fire protection systems.
. What are the factors affecting ventilation of building?
Mention the various aspects and prospects to be considered under Regulations and Byelaws, by the Architect while planning and designing the layout of a building.

(b) What are the factors affecting ventilation of building?

(c) Mention the various aspects and prospects to be considered under Regulations and Byelaws, by the Architect while planning and designing the layout of a building.

Q5. (a) What is meant by safe bearing capacity of soil? Explain plate loading test for determination of bearing capacity?
What are the general principles in bricks masonry construction?
What are the rules for bricks bonding ?
What are the advantages of constructing steel roof trusses over timber trusses ?
Explain any one method of Damp proofing of flat RCC roofs.

(a) What is meant by safe bearing capacity of soil? Explain plate loading test for determination of bearing capacity?
What are the general principles in bricks masonry construction?
What are the rules for bricks bonding ?
What are the advantages of constructing steel roof trusses over timber trusses ?
Explain any one method of Damp proofing of flat RCC roofs.

(b) What are the general principles in bricks masonry construction?
What are the rules for bricks bonding ?

(c) What are the advantages of constructing steel roof trusses over timber trusses ?
Explain any one method of Damp proofing of flat RCC roofs.

  • (a) What is meant by safe bearing capacity of soil? Explain plate loading test for determination of bearing capacity?
    What are the general principles in bricks masonry construction?
    What are the rules for bricks bonding ?
    What are the advantages of constructing steel roof trusses over timber trusses ?
    Explain any one method of Damp proofing of flat RCC roofs.
  • (b) What are the general principles in bricks masonry construction?
    What are the rules for bricks bonding ?
  • (c) What are the advantages of constructing steel roof trusses over timber trusses ?
    Explain any one method of Damp proofing of flat RCC roofs.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

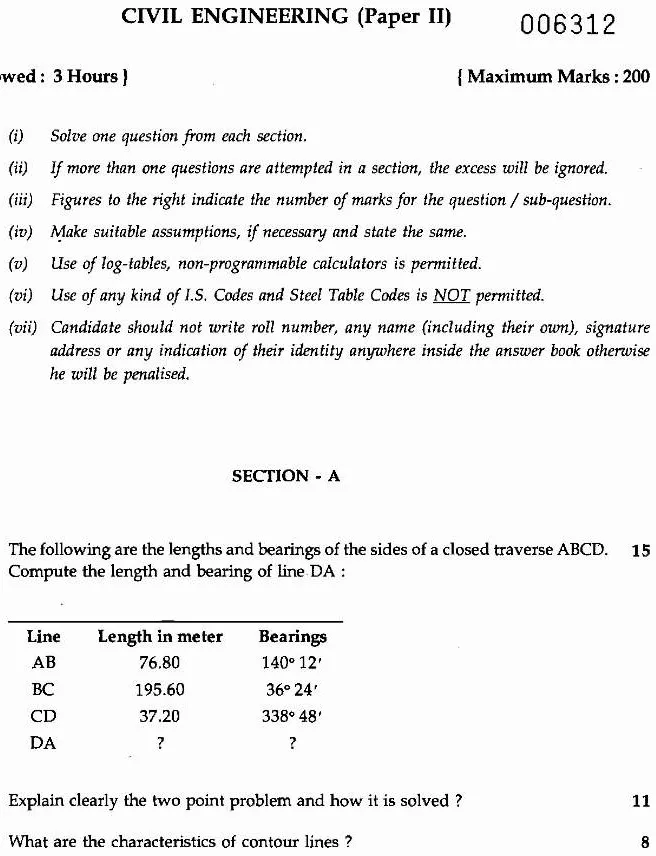

Page 1
MPSC Civil Engineering Services 2007 Paper II Previous Year Question Paper PDF — page 1 instructions scan PDF download
Page 2
MPSC Civil Engineering Services 2007 Paper II Previous Year Question Paper PDF — page 1 instructions scan PDF download

Free question paper download

Download question paper PDF

  • 41 KB
  • 5 pages
  • PDF format

Frequently asked questions

What is the exam name and year for this question paper?

The exam name is Maharashtra Civil Engineering Services Main Examination, and the year is 2007.

What is the subject and paper code?

The subject is Civil Engineering, and the paper code is 006312.

What is the total duration and maximum marks for the paper?

The total duration is 3 hours, and the maximum marks are 200.

What type of questions are included in this paper?

This paper includes descriptive type questions, divided into sections.

What are the main topics covered in Section A of the paper?

Section A covers surveying topics like closed traverse calculations, the two-point problem, contour lines, tachometry, transition curves, and satellite stations.

What subjects are included in Section B?

Section B includes topics related to building materials and construction, such as defects in paintings, artificial seasoning, cement testing, fire protection systems, building ventilation, and planning regulations.
