UKPSC Draftsman Examination 2023 - General Studies Question Paper

Uttarakhand Government Jobs Other Jobs 2023

  • Year 2023
  • Conducted By UKPSC
  • Maximum Marks 100

Exam Details

Detail Information
Examination UKPSC Draftsman Examination
Year 2023
Conducting Body UKPSC
Subject General Studies
Maximum Marks 100

The UKPSC Draftsman Examination 2023 General Studies paper includes multiple-choice questions covering various topics. This paper is essential for candidates preparing for the exam.

Major Topics Covered

  • General Studies
  • UKPSC Draftsman Examination
  • Multiple Choice Questions
  • Subjective Knowledge
  • Elasticity
  • Construction Materials
  • Drawing Sheets
  • Scale and Measurement
  • Architecture

Why This Paper is Important

  • Useful for UKPSC Draftsman Examination preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

Instructions

  • यदि किसी प्रश्न में किसी प्रकार की कोई मुद्रण या तथ्यात्मक त्रुटि हो तो प्रश्न के अंग्रेजी तथा हिन्दी रूपान्तरें में से अंग्रेजी रूपान्तर को मानक माना जायेगा ।
  • अभ्यर्थी अपने अनुक्रमांक, विषय-कोड एवं प्रश्न-पुस्तिका की सीरीज का अंकन OMR Sheet में निर्दिष्ट कॉलम में सही-सही करें, अन्यथा
  • उत्तर-पत्रक का मुल्यांकन नहीं किया जायेगा।
  • अभ्यर्थी रफ कार्य हेतु प्रश्न-पुस्तिका (बुकलेट) के अन्त में दिये गये पृष्ठों का ही केवल उपयोग करें ।
  • अभ्यर्थी प्रश्न-पुस्तिका के अंदर रफ कार्य के अतिरिक्त कुछ भी न लिखें ।
  • इस प्रश्न-पुस्तिका में विषयपरक जानकारी के 100 प्रश्न दिए गये हैं ।
  • प्रत्येक प्रश्न के चार वैकल्पिक उत्तर, प्रश्न के नीचे (a), (b), (c) एवं (d) दिये गये
  • इन चारों में से केवल एक ही सही उत्तर है।
  • जिस उत्तर को आप सही या सबसे उचित समझते हैं, उत्तर-पत्रक (ओ.एम.आर. आंसर शीट) में उसके अक्षर वाले वृत्त को काले अथवा नीले बॉल प्वाइंट पेन से पूरा काला / नीला कर दें।
  • प्रश्न–पुस्तिका में अंकित सभी प्रश्न अनिवार्य हैं और प्रत्येक प्रश्न के अंक समान हैं ।
  • आपके जितने उत्तर सही होंगे, उन्हीं के अनुसार अंक दिये जायेंगे ।
  • आयोग द्वारा आयोजित की जाने वाली वस्तुनिष्ठ प्रकृति की परीक्षाओं में ऋणात्मक मूल्यांकन (Negative Marking) पद्धति अपनायी जायेगी ।
  • अभ्यर्थी द्वारा प्रत्येक प्रश्न हेतू दिए गए गलत उत्तर के लिए या अभ्यर्थी द्वारा एक प्रश्न के एक से अधिक उत्तर देने के लिए (चाहे दिए गए उत्तर में से एक सही ही क्यों न हो), उस प्रश्न के लिए निर्धारित अंकों का एक-चौथाई दण्ड के रूप में काटा जाएगा ।
  • दण्ड स्वरूप प्राप्त अंकों के योग को कुल प्राप्तांक में से घटाया जाएगा ।
  • अपने उत्तर आपको अलग से दिये गये ओ.एम.आर. उत्तर-पत्रक में अंकित करने हैं ।
  • आपके द्रारा सभी उत्तर केवल ओ.एम.आर. उत्तर-पत्रक पर ही
  • ओ.एम.आर. उत्तर-पत्रक के अतिरिक्त अन्य कहीं पर दिया गया उत्तर मान्य नहीं होगा ।
  • ओ.एम.आर. उत्तर-पत्रक पर कुछ लिखने के पूर्व उसमें दिये गये सभी अनुदेशों को सावधानीपूर्वक पढ़ लें ।
  • सूचनाओं को अभ्यर्थी द्वारा परीक्षा प्रारम्भ होने से पूर्व भरा जाना अनिवार्य है ।
  • ओ.एम.आर. उत्तर-पत्रक तीन प्रतियों (मूल प्रति, कार्यालय प्रति एवं अभ्यर्थी प्रति) में है ।
  • परीक्षा समाप्ति के उपरान्त अभ्यर्थी ओ.एम.आर. उत्तर- पत्रक की मूल प्रति एवं कार्यालय प्रति अन्तरीक्षक (Invigilator) को हस्तगत करने के उपरान्त ही कक्ष छोड़े, अन्यथा की स्थिति में आयोग द्वारा नियमानुसार कार्यवाही की जाएगी ।
  • ओ.एम.आर. उत्तर-पत्रक की अभ्यर्थी प्रति, अभ्यर्थी अपने साथ ले जा सकते हैं ।
  • यदि आपने इन अनुदेशों को पढ़ लिया है, इस पृष्ठ पर अपना अनुक्रमांक अंकित कर दिया है और ओ.एम.आर. उत्तर-पत्रक पर वांछित सूचनायें भर दी हैं, तो तब तक प्रतीक्षा करें, जब तक आपको प्रश्न-पुस्तिका खोलने को नहीं कहा जाता ।
  • ओ. एम. आर. उत्तर-पत्रक (O. M. R. Answer Sheet) का मूल्यांकन ओ. आंसर शीट पर अभ्यर्थी द्वारा अंकित सीरीज कोड (A, B, C, D) के आधार पर ही किया जायेगा ।
  • प्रश्न-पुस्तिका (Question Booklet) में से ओ. एम. आर. उत्तर-पत्रक (O. M. R. Answer Sheet) निकालने के पश्चात् ओ. उत्तर-पत्रक पर प्रश्न-पुस्तिका क्रमांक एवं प्रश्न-पुस्तिका के सीरीज कोड (A, B, C, D) की प्रविष्टि सावधानीपूर्वक करें।
  • यदि उक्तानुसार कार्यवाही नहीं की जाती है, तो उसके लिए अभ्यर्थी स्वयं जिम्मेदार होगा ।
  • जब तक कहा न जाय इस प्रश्न-पुस्तिका को न खोलें ।
  • महत्त्वपूर्ण : प्रश्न-पुस्तिका खोलने पर तुरन्त जाँच कर देख लें कि प्रश्न-पुस्तिका के सभी पेज भली-भाँति छपे हुए हैं ।
  • यदि प्रश्न-पुस्तिका सीलबंद न हो अथवा कोई अन्य कमी हो, तो अन्तरीक्षक को दिखाकर उसी सीरीज की दूसरी प्रश्न-पुस्तिका प्राप्त कर लें ।

Questions (page 2)

Q1. The ratio of Young's modulus of elasticity of high tensile steel to that of mild steel is about

  • (a) 1.4
  • (b) 2.0
  • (c) 1.5
  • (d) 1.0

Q2. Unslaked lime is

  • (a) calcium carbonate
  • (b) calcium oxide
  • (c) calcium hydroxide
  • (d) calcium sulphate

Q3. Size of cube for finding compressive strength of cement is

  • (a) 50.6 mm
  • (b) 60.6 mm
  • (c) 70.6 mm
  • (d) 80.6 mm

Q4. Percentage of alumina in a good brick earth is

  • (a) 10 to 15%
  • (b) 50 to 60%
  • (c) 70 to 80%
  • (d) 20 to 30%

Q5. In which of the following directions wood have maximum strength?

  • (a) Parallel to grains
  • (b) 45° to grains
  • (c) Perpendicular to grains
  • (d) In all directions

Q6. The trimmed size of A3 drawing sheet in mm will be

  • (a) 297 × 420
  • (b) 210 × 297
  • (c) 148 × 210
  • (d) 420 × 594

Q7. Which of the scale is largest amongst the following?

  • (a) 1 : 200
  • (b) 1 : 50
  • (c) 1 : 25
  • (d) 1 : 10

Q8. You want to draw an arc of a circle. The parameters required will be

  • (a) three points on the chord of the arc.
  • (b) start and centre point of the arc.
  • (c) start and end point of the arc.
  • (d) centre and end point of the arc.

Q9. When drawings are drawn smaller than the actual size of the objects, the scale used is called _____ scale.

  • (a) enlarging
  • (b) reducing
  • (c) representative
  • (d) graphical

Q10. The size of the title block for all sizes of drawing sheets in mm is

  • (a) 185 × 75
  • (b) 195 × 75
  • (c) 185 × 65
  • (d) 160 × 65

Q11. The lowest part of the super structure between the ground and the floor is called

  • (a) D.P.C.
  • (b) Lintel
  • (c) Plinth
  • (d) Beam

Q12. The thickness of the lintel is 80 mm and span of the lintel is 10 m. What will be taken as bearing of the lintel?

  • (a) 90 mm
  • (b) 80 mm
  • (c) 100 mm
  • (d) 110 mm

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

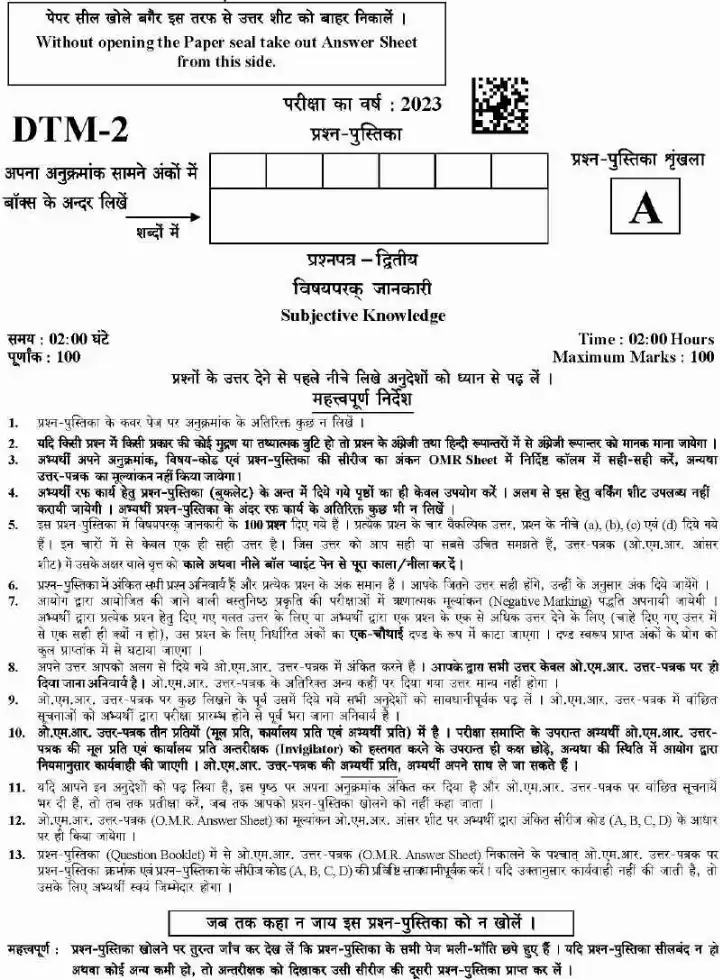

Page 1
UKPSC Draftsman Examination 2023 - General Studies Question Paper — page 1 instructions scan PDF download
Page 2
UKPSC Draftsman Examination 2023 - General Studies Question Paper — page 1 instructions scan PDF download

Free question paper download

Download question paper PDF

  • 427 KB
  • 16 pages
  • PDF format

Frequently asked questions

What is the duration of the UKPSC Draftsman Examination?

The duration is 02:00 hours.

What is the maximum marks for the UKPSC Draftsman Examination?

The maximum marks are 100.

What type of questions are included in the General Studies paper?

The paper includes multiple-choice questions.

Is there negative marking in the UKPSC Draftsman Examination?

Yes, there is a negative marking system.

How should answers be marked in the exam?

Answers should be marked on the OMR answer sheet.

What is the penalty for incorrect answers?

A penalty of one-fourth of the marks is deducted for incorrect answers.
