Q1. In an RL circuit R = 20 \Omega while L = 60 mH. The input current lag the supply voltage by 60 degree. Obtain value of applied frequency.
- (1) 91.93 Hz
- (2) 108.41 Hz
- (3) 93.91 Hz
- (4) 41.10 Hz
- (5) Question not attempted
RPSC Electrical Engineering Question Paper 2024 PDF | Voice Principal ITI Exam
- Year 2024
- Conducted By RPSC
- Questions 150
- Maximum Marks 150
- Duration 02:30 Hours + 10 Minutes Extra
- Languages Hindi & English
Exam Details
| Detail | Information |
|---|---|
| Examination | Voice Principal / Superintendent ITI Comp. Exam |
| Year | 2024 |
| Conducting Body | RPSC |
| Paper | Electrical Engineering |
| Subject | Electrical Engineering |
| Duration | 02:30 Hours + 10 Minutes Extra |
| Maximum Marks | 150 |
| Number of Questions | 150 |
| Question Type | Objective (MCQ) |
This document contains the official question paper for the RPSC Voice Principal / Superintendent ITI Competitive Examination 2024, specifically for the Electrical Engineering paper. The exam, conducted by RPSC, allows 02:30 hours plus 10 minutes extra, with a maximum of 150 marks. It is designed for candidates aspiring for ITI Principal and Superintendent roles. Aspirants can use this paper to understand the exam pattern, question difficulty, and important topics covered in Electrical Engineering for RPSC recruitment. Practicing with this paper is crucial for effective preparation.
Major Topics Covered
- Electrical Engineering
- Circuit Theory
- Electromagnetism
- Electrical Machines
- Power Systems
- Control Systems
- Electronics
Why This Paper is Important
- Useful for Voice Principal / Superintendent ITI Com preparation
- Helps understand the latest exam pattern
- Useful for practice and self-assessment
- Covers frequently asked General Studies topics
- Helpful for analysing question trends
Related Resources
- RPSC Electrical Engineering Previous Year Papers
- ITI Superintendent Exam Papers
- Voice Principal Exam Papers
- Rajasthan Govt Jobs Question Papers
- RPSC Electrical Engineering Answer Key 2024
- RPSC Electrical Engineering Syllabus
- ITI Superintendent ITI Syllabus
- RPSC Electrical Engineering Exam Pattern

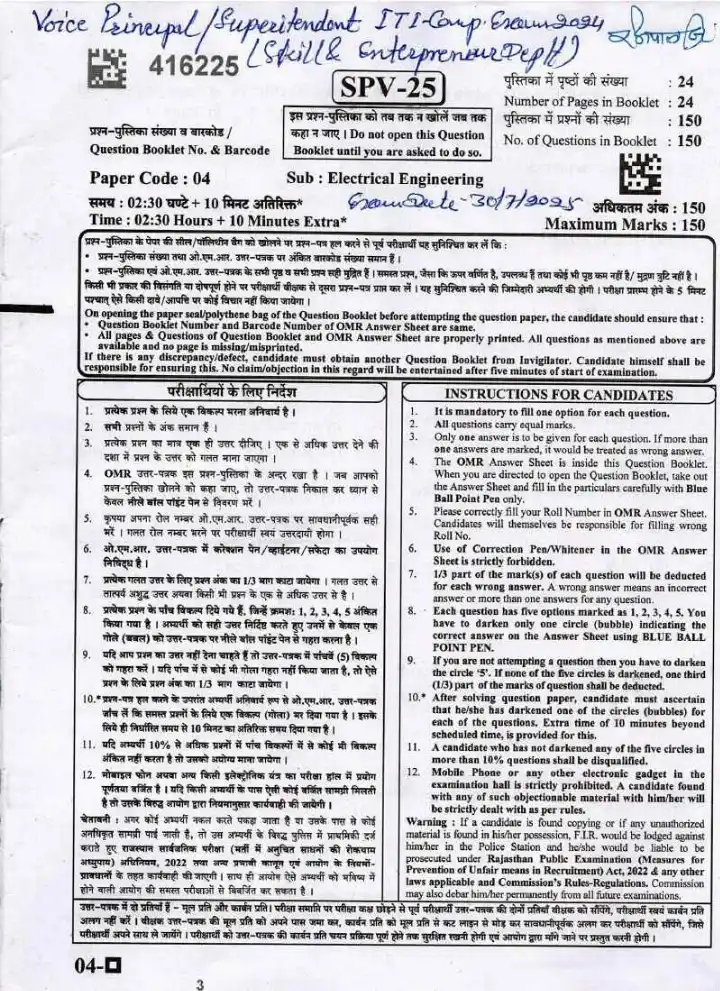

Instructions
- All questions carry equal marks. सभी प्रश्नों के अंक समान हैं।
- प्रत्येक प्रश्न का मात्र एक ही उत्तर दीजिए ।
- एक से अधिक उत्तर देने की one answers are marked, it would be treated as wrong answer. दशा में प्रश्न के उत्तर को गलत माना जाएगा । The OMR Answer Sheet is inside this Question Booklet.
- OMR उत्तर-पत्रक इस प्रश्न-पुस्तिका के अन्दर रखा है । जब आपको
- When you are directed to open the Question Booklet, take out प्रश्न-पुस्तिका खोलने को कहा जाए, तो उत्तर-पत्रक निकाल कर ध्यान से the Answer Sheet and fill in the particulars carefully with Blue Ball Point Pen only. केवल नीले बॉल पॉइंट पेन से विवरण भरें । Please correctly fill your Roll Number in OMR Answer Sheet.
- कृपया अपना रोल नम्बर ओ.एम.आर. उत्तर-पत्रक पर सावधानीपूर्वक सही
- Candidates will themselves be responsible for filling wrong भरें ।
- गलत रोल नम्बर भरने पर परीक्षार्थी स्वयं उत्तरदायी होगा । Roll No. ओ.एम.आर. उत्तर-पत्रक में करेक्शन पेन/व्हाईटनर/सफेदा का उपयोग Use of Correction Pen/Whitener in the OMR Answer
- Sheet is strictly forbidden. निषिद्ध है ।
- 1/3 part of the mark(s) of each question will be deducted प्रत्येक गलत उत्तर के लिए प्रश्न अंक का 1/3 भाग काटा जायेगा । गलत उत्तर से
- for each wrong answer. A wrong answer means an incorrect तात्पर्य अशुद्ध उत्तर अथवा किसी भी प्रश्न के एक से अधिक उत्तर से है। answer or more than one answers for any question.
- प्रत्येक प्रश्न के पाँच विकल्प दिये गये हैं, जिन्हें क्रमश: 1, 2, 3, 4, 5 अंकित Each question has five options marked as 1, 2, 3, 4, 5. You
- किया गया है । अभ्यर्थी को सही उत्तर निर्दिष्ट करते हुए उनमें से केवल एक have to darken only one circle (bubble) indicating the correct answer on the Answer Sheet using BLUE BALL गोले (बबल) को उत्तर-पत्रक पर नीले बॉल पॉइंट पेन से गहरा करना है। POINT PEN.
- यदि आप प्रश्न का उत्तर नहीं देना चाहते हैं तो उत्तर-पत्रक में पाँचवें (5) विकल्प
- If you are not attempting a question then you have to darken को गहरा करें।
- यदि पाँच में से कोई भी गोला गहरा नहीं किया जाता है, तो ऐसे the circle '5'. If none of the five circles is darkened, one third प्रश्न के लिये प्रश्न अंक का 1/3 भाग काटा जायेगा।
- (1/3) part of the marks of question shall be deducted.
- * प्रश्न-पत्र हल करने के उपरांत अभ्यर्थी अनिवार्य रूप से ओ.एम.आर. उत्तर-पत्रक
- * After solving question paper, candidate must ascertain that he/she has darkened one of the circles (bubbles) for जाँच लें कि समस्त प्रश्नों के लिये एक विकल्प (गोला) भर दिया गया है।
- इसके each of the questions. Extra time of 10 minutes beyond लिये ही निर्धारित समय से 10 मिनट का अतिरिक्त समय दिया गया है। scheduled time, is provided for this.
- यदि अभ्यर्थी 10% से अधिक प्रश्नों में पाँच विकल्पों में से कोई भी विकल्प A candidate who has not darkened any of the five circles in
- अंकित नहीं करता है तो उसको अयोग्य माना जायेगा। more than 10% questions shall be disqualified. Mobile Phone or any other electronic gadget in the
- मोबाइल फोन अथवा अन्य किसी इलेक्ट्रोनिक यंत्र का परीक्षा हॉल में प्रयोग
- examination hall is strictly prohibited. A candidate found पूर्णतया वर्जित है ।
- यदि किसी अभ्यर्थी के पास ऐसी कोई वर्जित सामग्री मिलती with any of such objectionable material with him/her will है तो उसके विरुद्ध आयोग द्वारा नियमानुसार कार्यवाही की जायेगी । be strictly dealt with as per rules. चेतावनी : अगर कोई अभ्यर्थी नकल करते पकड़ा जाता है या उसके पास से कोई Warning : If a candidate is found copying or if any unauthorized अनधिकृत सामग्री पाई जाती है, तो उस अभ्यर्थी के विरुद्ध पुलिस में प्राथमिकी दर्ज material is found in his/her possession, F.I.R. would be lodged against कराते हुए राजस्थान सार्वजनिक परीक्षा (भर्ती में अनुचित साधनों की रोकथाम him/her in the Police Station and he/she would be liable to be prosecuted under Rajasthan Public Examination (Measures for अध्युपाय) अधिनियम, 2022 तथा अन्य प्रभावी कानून एवं आयोग के नियमों- Prevention of Unfair means in Recruitment) Act, 2022 & any other प्रावधानों के तहत कार्यवाही की जाएगी।
- साथ ही आयोग ऐसे अभ्यर्थी को भविष्य में laws applicable and Commission's Rules-Regulations. Commission होने वाली आयोग की समस्त परीक्षाओं से विवर्जित कर सकता है। may also debar him/her permanently from all future examinations. उत्तर-पत्रक में दो प्रतियाँ हैं – मूल प्रति और कार्बन प्रति।
- परीक्षा मसमाप्त पर परीक्षा कार भाज को पुरी परिक्षा कार्य कार्य कार्य कार्य कार्य कार्य कार्य कार्य कार्य कार्य कार्य कार्य प्रति अलग नहीं करें ।
- वीक्षक उत्तर–पत्रक की मूल प्रति को अपने पास जमा कर, कार्बन प्रति को मूल प्रति से कट लाइन से मोड़ कर सावधानीपूर्वक अलग कर परीक्षार्थी को सौंपेंगे, जिसे परीक्षार्थी अपने साथ ले जायेंगे ।
- परीक्षार्थी को उत्तर–पत्रक की कार्बन प्रति चयन प्रक्रिया पूरी तक सुरक्षित रखनी होगी एवं आयोग द्वारा माँगे जाने पर प्रस्तुत करनी होगी । 04 - \Box 3
- It is mandatory to fill one option for each question.
- Only one answer is to be given for each question. If more than
Questions (page 2)

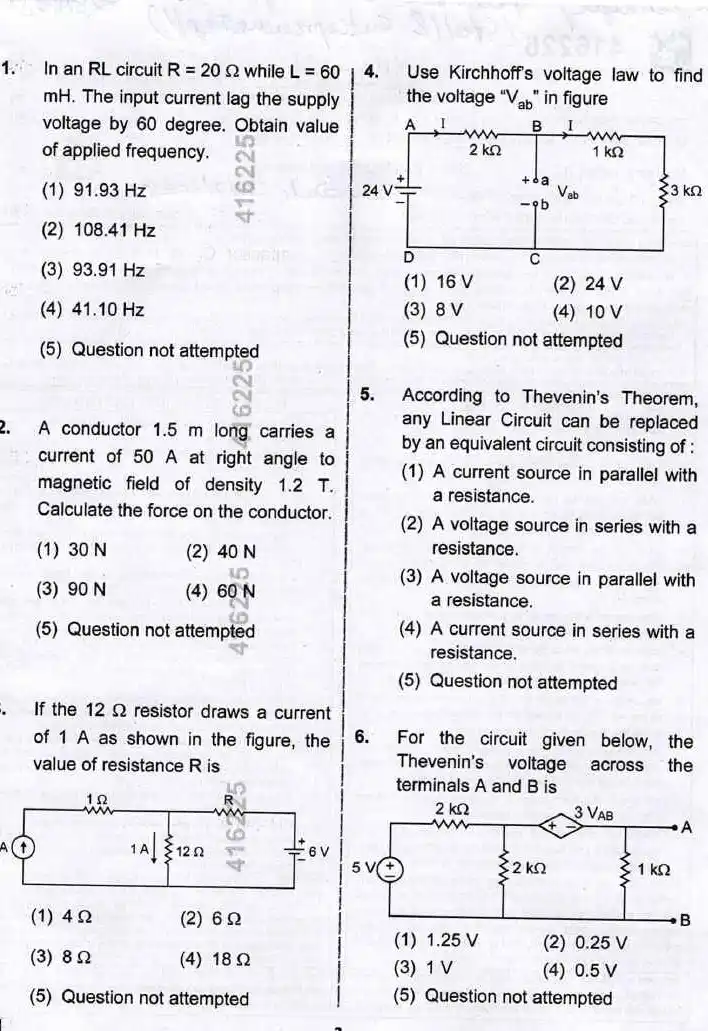

Q2. A conductor 1.5 m long carries a current of 50 A at right angle to magnetic field of density 1.2 T. Calculate the force on the conductor.
- (1) 30 N
- (2) 40 N
- (3) 90 N
- (4) 60 N
- (5) Question not attempted
Q3. If the 12 \Omega resistor draws a current of 1 A as shown in the figure, the value of resistance R is
- (1) 4 \Omega
- (2) 6 \Omega
- (3) 8 \Omega
- (4) 18 \Omega
- (5) Question not attempted
Q4. Use Kirchhoff's voltage law to find the voltage "V_{ab}" in figure A.
- (1) 16 V
- (2) 24 V
- (3) 8 V
- (4) 10 V
- (5) Question not attempted
Q5. According to Thevenin's Theorem, any Linear Circuit can be replaced by an equivalent circuit consisting of :
- (1) A current source in parallel with a resistance.
- (2) A voltage source in series with a resistance.
- (3) A voltage source in parallel with a resistance.
- (4) A current source in series with a resistance.
- (5) Question not attempted
Q6. For the circuit given below, the Thevenin's voltage across the terminals A and B is
- (1) 1.25 V
- (2) 0.25 V
- (3) 1 V
- (4) 0.5 V
- (5) Question not attempted
