ASST. ENGINEER COMB. COMP. EXAM 2018 Electrical Engineering Paper-II PDF

Rajasthan Government Jobs Engineer 2018

  • Year 2018
  • Conducted By RPSC
  • Questions 100
  • Maximum Marks 200
  • Duration 2.00 Hours
  • Languages Hindi & English

Exam Details

Detail Information
Examination ASST. ENGINEER COMB. COMP. EXAM
Year 2018
Conducting Body RPSC
Paper Electrical Engineering Paper-II
Subject Electrical Engineering
Duration 2.00 Hours
Maximum Marks 200
Number of Questions 100
Question Type Objective (MCQ)

This is the official question paper for the ASST. ENGINEER COMB. COMP. EXAM 2018, specifically Paper-II focusing on Electrical Engineering, conducted by RPSC. The exam allows 2.00 hours to complete and is out of a maximum of 200 marks. This paper is crucial for aspirants preparing for the Assistant Engineer recruitment, providing insights into the types of questions, difficulty level, and important topics covered in the Electrical Engineering domain. Practicing with this previous year's paper can significantly enhance preparation strategy and boost confidence for the upcoming examination.

Major Topics Covered

  • Electrical Engineering
  • Rectifiers
  • Thyristors
  • Measuring Instruments
  • Synchronous Generators
  • Cyclo-converters
  • Transformers
  • Control Systems
  • Voltmeter

Why This Paper is Important

  • Useful for ASST. ENGINEER COMB. COMP. EXAM preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • ASST. ENGINEER COMB. COMP. EXAM 2017 Electrical Engineering Paper-II
  • ASST. ENGINEER COMB. COMP. EXAM 2019 Electrical Engineering Paper-II
  • RPSC AE Electrical Engineering Previous Year Papers
  • ASST. ENGINEER COMB. COMP. EXAM 2018 Electrical Engineering Paper-II Answer Key
  • RPSC Assistant Engineer Electrical Engineering Syllabus
  • RPSC Assistant Engineer Exam Pattern
  • RPSC AE Exam
  • SSC JE Electrical

Instructions

  • सभी प्रश्नों के उत्तर दीजिए। Answer all questions.
  • प्रत्येक प्रश्न का केवल एक ही उत्तर दीजिए।
  • एक से अधिक उत्तर देने की दशा में प्रश्न के उत्तर को गलत माना as wrong answer. जाएगा।
  • प्रत्येक प्रश्न के चार वैकल्पिक उत्तर दिये गये हैं, जिन्हें क्रमशः 1, 2, serially as 1, 2, 3,
  • You have to darken only one circle or 3, 4 अंकित किया गया है।
  • अभ्यर्थी को सही उत्तर निर्दिष्ट करते हुए bubble indicating the correct answer on the Answer Sheet using BLUE BALL POINT PEN. उनमें से केवल एक गोले अथवा बबल को उत्तर पत्रक पर नीले बॉल
  • The OMR Answer Sheet is kept with this Test Booklet. प्वॉइंट पेन से गहरा करना है। When you are directed to open the Test Booklet, take out
  • OMR उत्तर पत्रक इस परीक्षा पुरितका के साथ रखा है।
  • जब the Answer Sheet and fill in the particulars carefully with आपको परीक्षा पुरितका खोलने को कहा जाए, तो उत्तर पत्रक निकाल blue ball point pen only. Please fill the Question Paper Booklet no. on the OMR Answer Sheet carefully. कर ध्यान से केवल नीले बॉल प्वॉइंट पेन से विवरण भरें। OMR
  • 1/3 part of the mark(s) of each question will be उत्तर पत्रक पर प्रश्न–पत्र पुस्तिका संख्या ध्यानपूर्वक भरें। deducted for each wrong answer. (A wrong answer
  • प्रत्येक गलत उत्तर के लिए प्रश्न अंक का 1/3 माग काटा जायेगा। means an incorrect answer or more than one answers for (गलत उत्तर से तात्पर्य अशुद्ध उत्तर अथवा किसी भी प्रश्न के एक any question. Leaving all the relevant circles or bubbles of से अधिक उत्तर से है।
  • किसी भी प्रश्न से संबंधित गोले या बबल को any question blank will not be considered as wrong answer.) खाली छोड़ना गलत उत्तर नहीं माना जायेगा।)
  • मोबाइल फोन अथवा इलेक्ट्रॉनिक यंत्र का परीक्षा हॉल में प्रयोग examination hall is strictly prohibited. A candidate found पूर्णतया वर्जित है।
  • यदि किसी अभ्यर्थी के पास ऐसी कोई वर्जित with any of such objectionable materials with him/her will सामग्री मिलती है, तो उसके विरुद्ध आयोग द्वारा नियमानुसार be strictly dealt as per rules. कार्यवाही की जायेगी। Please correctly fill your Roll Number in O.M.R. Sheet.
  • कृपया अपना रोल नम्बर ओ. एम. आर. पत्रक पर सावधानीपूर्वक सही 5 Marks can be deducted for filling wrong or incomplete भरें।
  • गलत अथवा अपूर्ण रोल नम्बर भरने पर 5 अंक कुल प्राप्तांकों Roll Number.
  • If there is any sort of ambiguity/mistake either of printing में से काटे जा सकते हैं। or factual nature then out of Hindi and English Version of
  • यदि किसी प्रश्न में किसी प्रकार की कोई मुद्रण या तथ्यात्मक प्रकार the question, the English Version will be treated as की त्रुटि हो तो प्रश्न के हिन्दी तथा अंग्रेजी रूपान्तरों में से अंग्रेजी standard. रूपान्तर मान्य होगा।
  • चेतावनी: अगर कोई अभ्यर्थी नकल करते पकड़ा जाता है या उसके Warning : If a candidate is found copying or if any unauthorized material is found in his/her पास से कोई अनधिकृत सामग्री पाई जाती है, उस अभ्यर्थी के विरुद्ध possession, F.I.R. would be lodged against him/her पुलिस में प्राथमिकी दर्ज कराते हुए विविध नियमों-प्रावधानों के तहत in the Police Station and he/she would liable to be कार्यवाही की जाएगी।
  • साथ ही विभाग ऐसे अभ्यर्थी को भविष्य में होने prosecuted. Department may also debar him/her वाली विभाग की समस्त परीक्षाओं से विवर्जित कर सकता है permanently from all future examinations. इस परीक्षा पुस्तिका को तब तक न खोलें जब तक कहा न जाए। Do not open this Test Booklet until you are asked to do so. [03] \overline{E} Page 1 of 16

  • \overline{2}. All questions carry equal marks,
  • Only one answer is to be given for each question.
  • If more than one answers are marked, it would be treated
  • Each question has four alternative responses marked
  • Mobile Phone or any other electronic gadget in the

Questions (page 2)

Q1. The frequency of ripple in the output voltage of a three phase controlled bridge rectifier depends on-

  • (1) firing angle
  • (2) load inductance
  • (3) load resistance
  • (4) supply frequency

Q2. A thyristor has internal power dissipation of 40W and is operated at an ambient temperature of 20°C. If thermal resistance is 1.6°C/W, the junction temperature is-

  • (1) 114\circC
  • (2) 164\circC
  • (3) 94\circC
  • (4) 84\circC

Q3. A meter has a full-scale deflection of 90 degree at a current of 1 Ampere. The response of the meter is square law. Assuming spring control, the current for a deflection of 45 degree will be-

  • (1) 25 Ampere.
  • (2) 50 Ampere.
  • (3) 67 Ampere.
  • (4) 707 Ampere.

Q4. A 75 MVA, 10 kV synchronous generator has Xd = 0. 4 p. u. The Xd value (in p. ) to a base of 100 MVA, 11 kV is-.

Q5. A cyclo-converter is operating on a 50 Hz supply. The range of output frequency that can be obtained with acceptable quality, is-

  • (1) 0 - 16 Hz
  • (2) 0 - 132 Hz
  • (3) 0 - 64 Hz
  • (4) 0 - 128 Hz

Q6. A 2 kVA transformer has iron loss of 150 Watts and full-load copper loss of 250 Watts. The maximum efficiency of the transformer would occur when the total loss is-

  • (1) 500 W
  • (2) 400 W
  • (3) 300 W
  • (4) 275 W

Q7. The system described by the following state equations-
dotx = eginbmatrix 0 & 1 \ 2 & -3 endbmatrix x + eginbmatrix 0 \ 1 endbmatrix u; quad y = eginbmatrix 1 & 1 endbmatrix x
1. Completely controllable
2. Completely observable
Which of the above statement is/are correct?

  • (1) 1 only
  • (2) 2 only
  • (3) Both 1 and 2
  • (4) Neither 1 nor 2

Q8. An analog voltmeter uses external multiplier settings. With a multiplier setting of 20 kOmega, it reads 440 V and with a multiplier setting of 80 kOmega, it reads 352 V. For a multiplier setting of 40 kOmega the voltmeter reads-

  • (1) 371 V
  • (2) 383 V
  • (3) 394 V
  • (4) 406 V

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

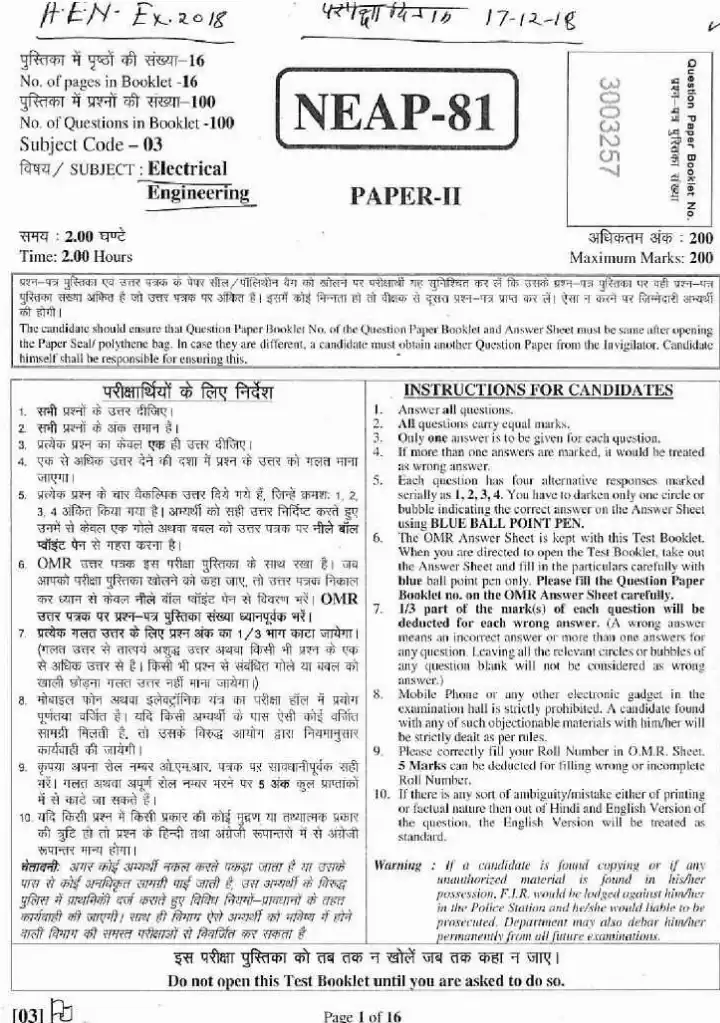

Page 1
ASST. ENGINEER COMB. COMP. EXAM 2018 Electrical Engineering Paper-II question paper page 1 instructions scan PDF download RPSC

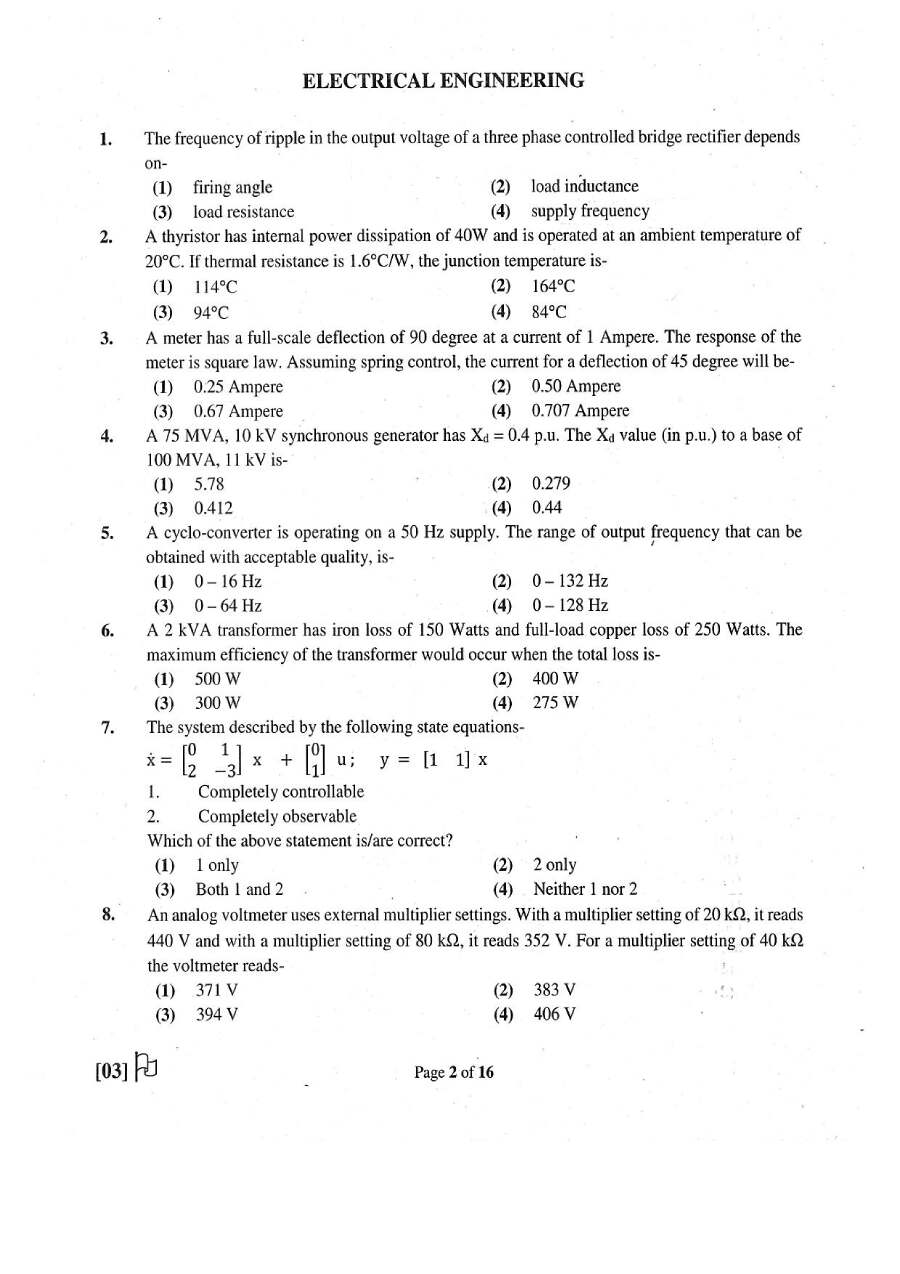

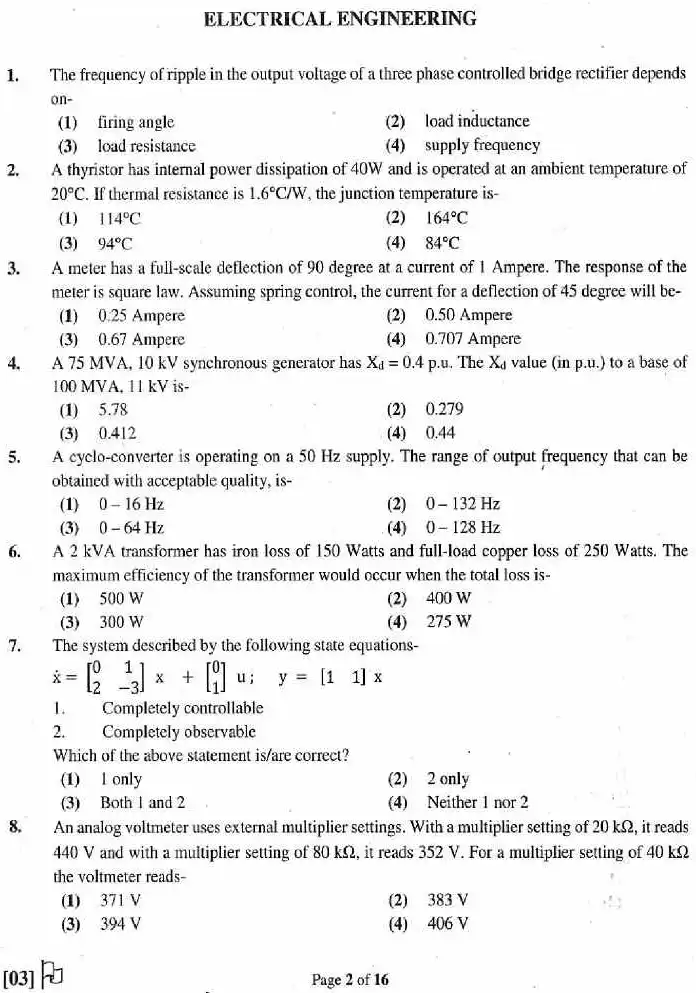

Page 2
ASST. ENGINEER COMB. COMP. EXAM 2018 Electrical Engineering Paper-II question paper page 1 instructions scan PDF download RPSC

Free question paper download

Download question paper PDF

  • 3.0 MB
  • 16 pages
