Maharashtra Forest Services Civil Engineering 2024 Question Paper
- Year 2024
- Conducted By Maharashtra Forest Department (Government of Maharashtra)
- Questions 8
- Maximum Marks 200
- Duration Three Hours
- Languages English & Marathi
Exam Details
| Detail | Information |
|---|---|
| Examination | Maharashtra Forest Services Main Examination |
| Year | 2024 |
| Conducting Body | Maharashtra Forest Department (Government of Maharashtra) |
| Paper | Civil Engineering |
| Subject | Civil Engineering |
| Duration | Three Hours |
| Maximum Marks | 200 |
| Number of Questions | 8 |
| Question Type | Conventional |
This dataset provides OCR-corrected details for the Maharashtra Forest Services Main Examination Civil Engineering paper (2024). It includes exam metadata such as maximum marks (200), duration (Three Hours), paper type (Conventional) and medium (English). It states eight questions across two sections, with questions 1 and 5 compulsory and candidates to select at least one question from each section. Page 2 presents Q1 of Section A: 'Solve any five out of seven' with four parts (a)-(d), each comprising sub-parts. The content combines theoretical prompts (D'Alembert's principle, welded connections, kinematic viscosity, soil phase diagram) and numerical/analytical prompts (friction on a moving box, tie strength, velocity distribution, porosity-based calculations). The material offers context for exam preparation and SEO metadata generation.
Major Topics Covered
- Forest Services
- Civil Engineering
- Theory of Machines
- Soil Mechanics
- Hydraulics
- Strength of Materials
- Welded connections
- Riveted joints
- Kinematic viscosity
- Compressibility
- Porosity
- Dry density
- Unit weight
- Shear stress
- Friction
- D'Alembert's principle
- Frames and trusses
- P.T.O.
- Calculators in exams
- Blue-book conventions
Why This Paper is Important
- Useful for Maharashtra Forest Services Main Examina preparation
- Helps understand the latest exam pattern
- Useful for practice and self-assessment
- Covers frequently asked General Studies topics
- Helpful for analysing question trends
Related Resources

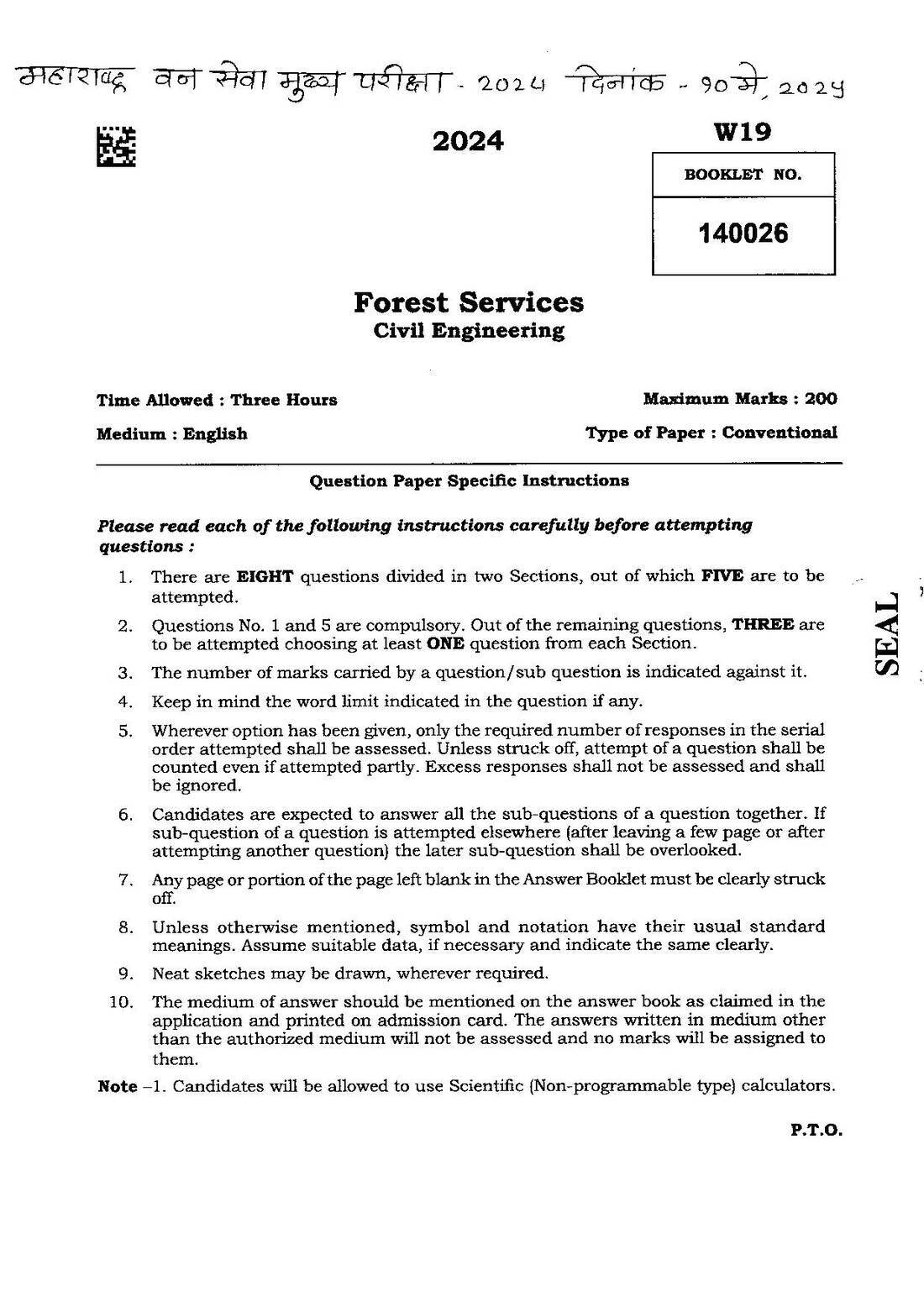

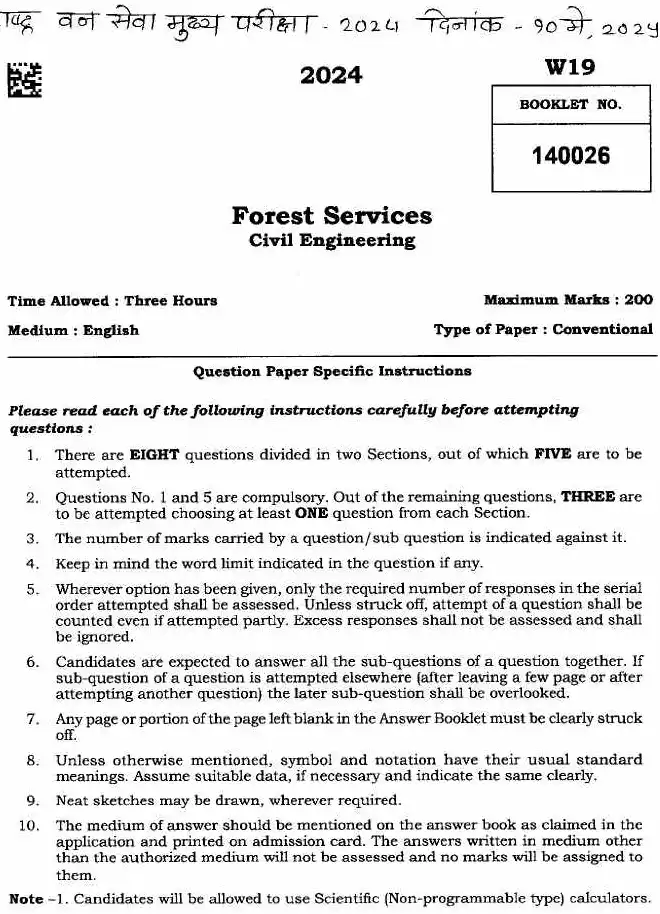

Instructions
- वन सेवा मूब्यू परीक्षा - 2024 - दिनांक - 90 में, 2024 महाराष्ट्र W19 2024 BOOKLET NO. 140026 Forest Services Civil Engineering Maximum Marks: 200
- There are EIGHT questions divided in two Sections, out of which FIVE are to be SEAL attempted.
- Questions No. 1 and 5 are compulsory.
- Out of the remaining questions, THREE are to be attempted choosing at least ONE question from each Section.
- The number of marks carried by a question/sub question is indicated against it. З.
- Keep in mind the word limit indicated in the question if any.
- Wherever option has been given, only the required number of responses in the serial order attempted shall be assessed.
- Unless struck off, attempt of a question shall be counted even if attempted partly.
- Excess responses shall not be assessed and shall be ignored.
- Candidates are expected to answer all the sub-questions of a question together.
- If sub-question of a question is attempted elsewhere (after leaving a few page or after attempting another question) the later sub-question shall be overlooked.
- Any page or portion of the page left blank in the Answer Booklet must be clearly struck off.
- Unless otherwise mentioned, symbol and notation have their usual standard
- meanings. Assume suitable data, if necessary and indicate the same clearly.
- Neat sketches may be drawn, wherever required.
- The medium of answer should be mentioned on the answer book as claimed in the application and printed on admission card.
- The answers written in medium other than the authorized medium will not be assessed and no marks will be assigned to them.
- Candidates will be allowed to use Scientific (Non-programmable type) calculators.

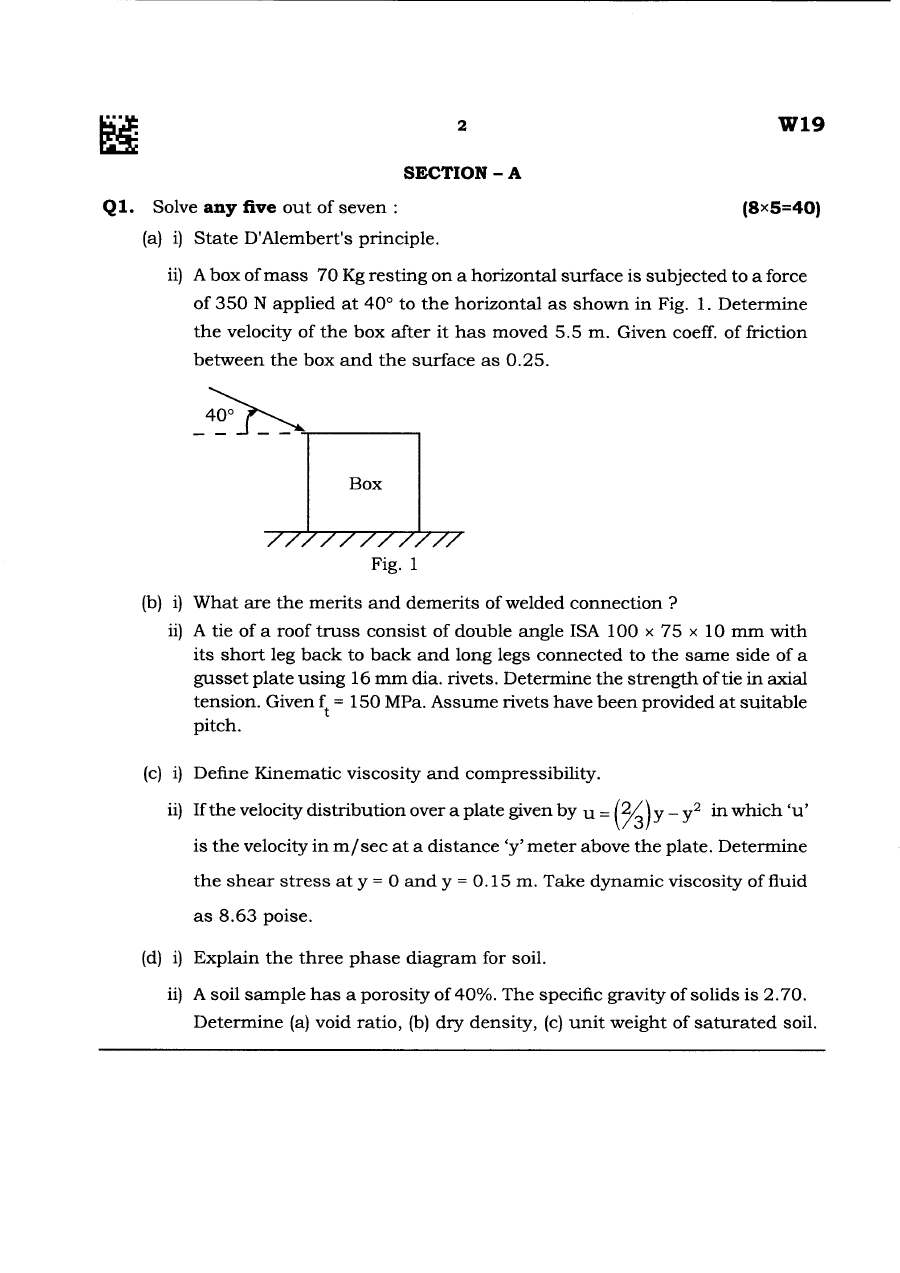

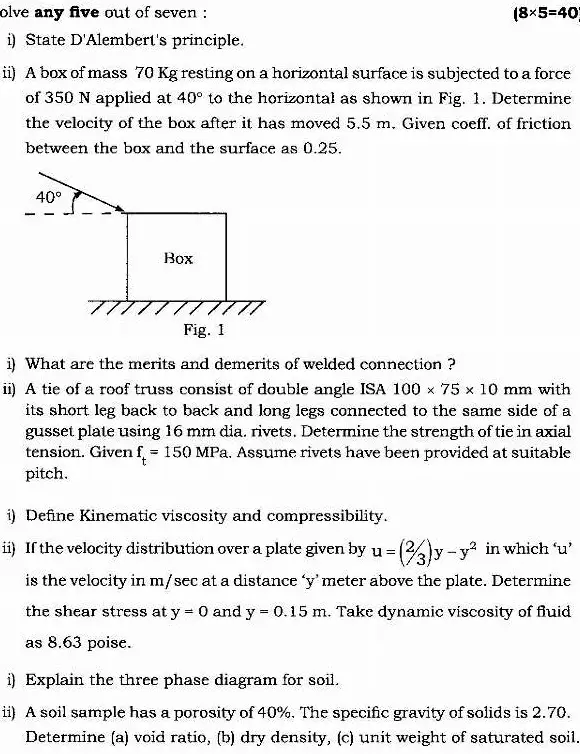

Questions (page 2)
Q0. Q1. Solve any five out of seven : (8 × 5 = 40)
Q1.
(a) W19 \mathbf 2 SECTION - A Q1. Solve any five out of seven : (8 × 5 = 40) i) State D'Alembert's principle. ii) A box of mass 70 Kg resting on a horizontal surface is subjected to a force of 350 N applied at 40\circ to the horizontal as shown in Fig. 1. Determine the velocity of the box after it has moved 5.5 m. Given coeff, of friction between the box and the surface as 0.25. 40° Box 77777777777 Fig. 1
(b) i) What are the merits and demerits of welded connection ? ii) A tie of a roof truss consist of double angle ISA 100 × 75 × mm with its short leg back to back and long legs connected to the same side of a gusset plate using 16 mm dia. rivets. Determine the strength of tie in axial tension. Given ft = 150 MPa. Assume rivets have been provided at suitable pitch.
(c) i) Define Kinematic viscosity and compressibility. ii) If the velocity distribution over a plate given by u = (2/3)y - y2 in which 'u' is the velocity in m/sec at a distance 'y' meter above the plate. Determine the shear stress at y = 0 and y = 0.15 m. Take dynamic viscosity of fluid as 8.63 poise.
(d) i) Explain the three phase diagram for soil. ii) A soil sample has a porosity of 40%. The specific gravity of solids is
Q2.
(a) Determine void ratio,
(b) dry density,
(c) unit weight of saturated soil.
Question paper preview
Scanned pages 1–2 for reference. Download the official PDF for the full paper.
Free question paper download
Download question paper PDF
Your download starts in 10s
Preparing your question paper file…
Frequently asked questions
What is the exam name and year?
Maharashtra Forest Services Main Examination, 2024 Civil Engineering.
What is the subject of the paper?
Civil Engineering.
What are the maximum marks and duration?
Maximum marks 200; duration Three Hours.
What is the paper medium?
English.
How many questions are there and how are they distributed?
Eight questions in two sections.
Which questions are compulsory?
Questions 1 and 5 are compulsory.
