JPSC AE Civil Engineering Paper-I 2023 Question Paper PDF

Jharkhand Government Jobs Engineer

  • Conducted By JPSC
  • Questions 8
  • Maximum Marks 200
  • Duration 3 Hours
  • Languages English

Exam Details

Detail Information
Examination ASSISTANT ENGINEER WRITTEN EXAM
Conducting Body JPSC
Paper CIVIL ENGINEERING PAPER-I
Subject Civil Engineering
Duration 3 Hours
Maximum Marks 200
Number of Questions 8
Question Type Mixed

This document contains the JPSC Assistant Engineer Written Exam, Civil Engineering Paper-I (Subject Code 08) question paper. The exam, conducted by JPSC, allows 3 hours to answer a total of 8 questions across two sections, with a maximum of 200 marks. Compulsory questions include Question 1 from Section-A and Question 5 from Section-B, requiring candidates to attempt three additional questions, with at least one from each section. This paper is crucial for aspirants preparing for the Assistant Engineer role in Civil Engineering, providing a clear understanding of the exam's scope and difficulty.

Major Topics Covered

  • Timber Defects
  • Plywood
  • Seasoning of Timber
  • Preservation of Timber
  • Prismatic Bar Elongation
  • Continuous Beam Analysis
  • Moment Distribution Method
  • Centroid of T-section
  • Muller Breslau Principle
  • Rapid Hardening Cement
  • Ordinary Portland Cement
  • Cantilever Beam Deflection
  • Triangular Load
  • Solid Shaft vs Tubular Shaft
  • Angle of Twist
  • Modulus of Rigidity
  • Brick Earth Ingredients
  • Types of Bricks
  • Timber Beam Design
  • Uniformly Distributed Load
  • Concentrated Load
  • Cross-section Modification

Why This Paper is Important

  • Useful for ASSISTANT ENGINEER WRITTEN EXAM preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • JPSC AE Civil Engineering Paper-II
  • JPSC AE Previous Year Papers
  • JPSC Assistant Engineer Exam Papers
  • JPSC AE Civil Engineering Paper-I Answer Key 2023
  • JPSC AE Civil Engineering Syllabus
  • Assistant Engineer Civil Engineering Syllabus
  • JPSC AE Exam Pattern
  • Assistant Engineer Civil Engineering Exam Pattern

Instructions

  • Answers must be written in ENGLISH only. \left( l\right) The question paper contains a total of 8 questions in TWO Sections : Section-A (2) and Section-B.
  • (FOUR questions in each section) Question No. 1 of Section 'A' and Question No. 5 of Section 'B' are compulsory.
  • (3) Candidates have to attempt another THREE questions from remaining SIX (4) questions choosing atleast ONE question from each section.
  • Assume suitable data if found necessary.

Questions (page 2)

Q1.

(ii) Calculate the total elongation of a prismatic bar of length l and cross sectional area 'A' which hangs vertically under its own weight.

(iii) Analyze the continuous beam shown in Fig. 1 (iii) by Moment Distribution Method and find the Moment at various points A, B and C.
Fig. 1 (iii)

(iv) Find the centroid of a 120 mm x 150 mm x 20 mm T section.

(v) State the Muller Breslau principle and its applications.

Q2.

(i) What is rapid hardening cement ? What is its significance ? How does it differ from ordinary Portland cement ?

(ii) Find the deflection at free end of a cantilever beam of length l, loaded with triangular load, w per unit length at fixed end and zero at free end.

(iii) A solid shaft of aluminum of length 1.5 m and of 60 mm diameter is to be replaced by a tabular steel shaft of the same length and the same outside diameter, such that each of two shafts have the same angle of twist per unit torsional moment over the total length. Determine the inner diameter of the tubular steel shaft, if the modulus of rigidity of steel is three times that of aluminum.

Q3.

(i) Explain various ingredients of brick earth work and state different types of bricks as per Indian Standard code ?

(ii) A timber beam of rectangular section is to support a load of 25 kN (uniformly distributed) over a span of 4 m. If the depth of the section is to be twice the breadth, and the stress in the timber is not to exceed 50 N/mm^2, find the dimensions of the cross section.
How the cross-section of the beam would be modify if it were a concentrated load placed at the centre with the same ratio of breadth to depth.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

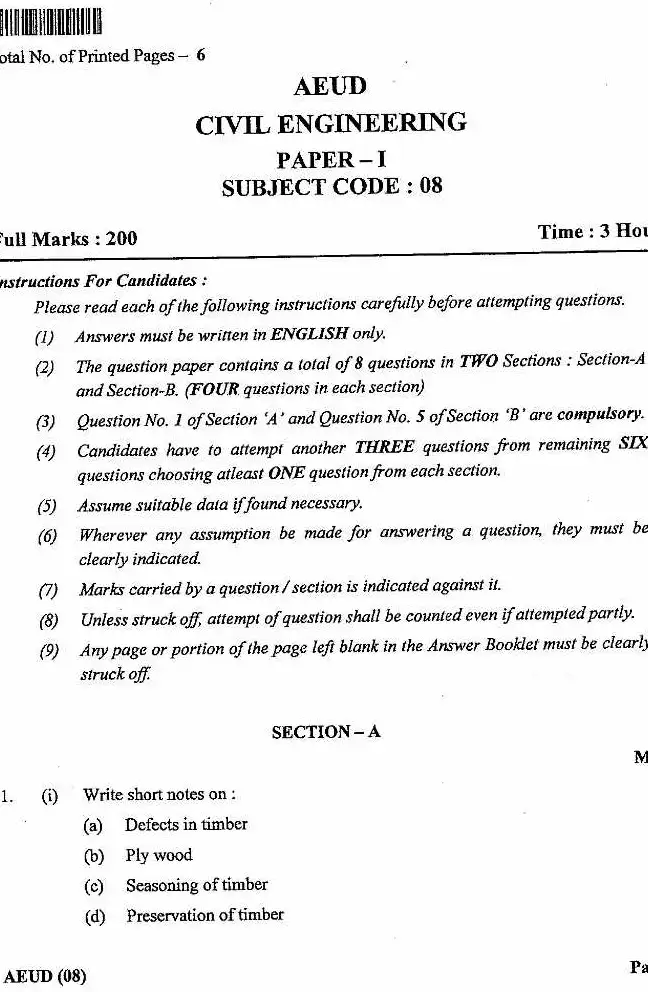

Page 1
JPSC AE Civil Engineering Paper-I 2023 question paper page 1 instructions scan PDF download

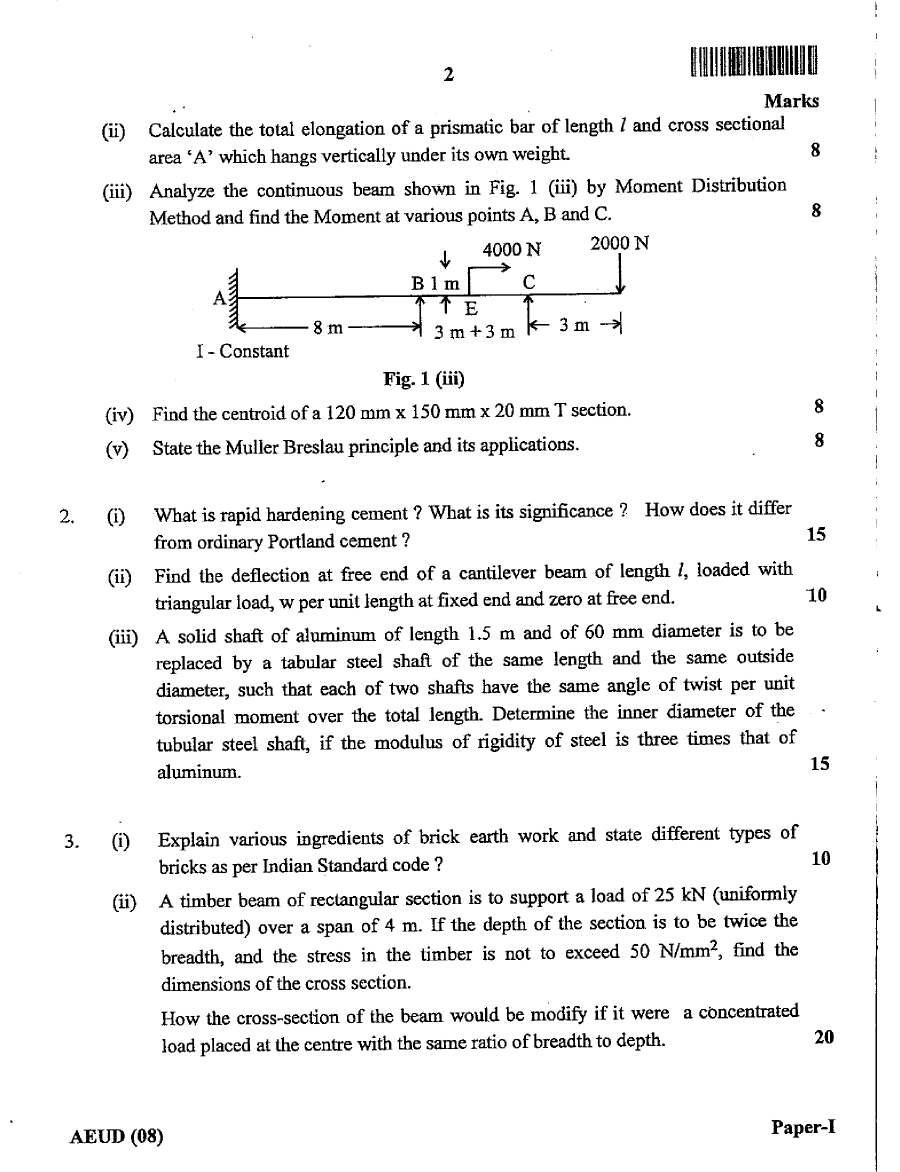

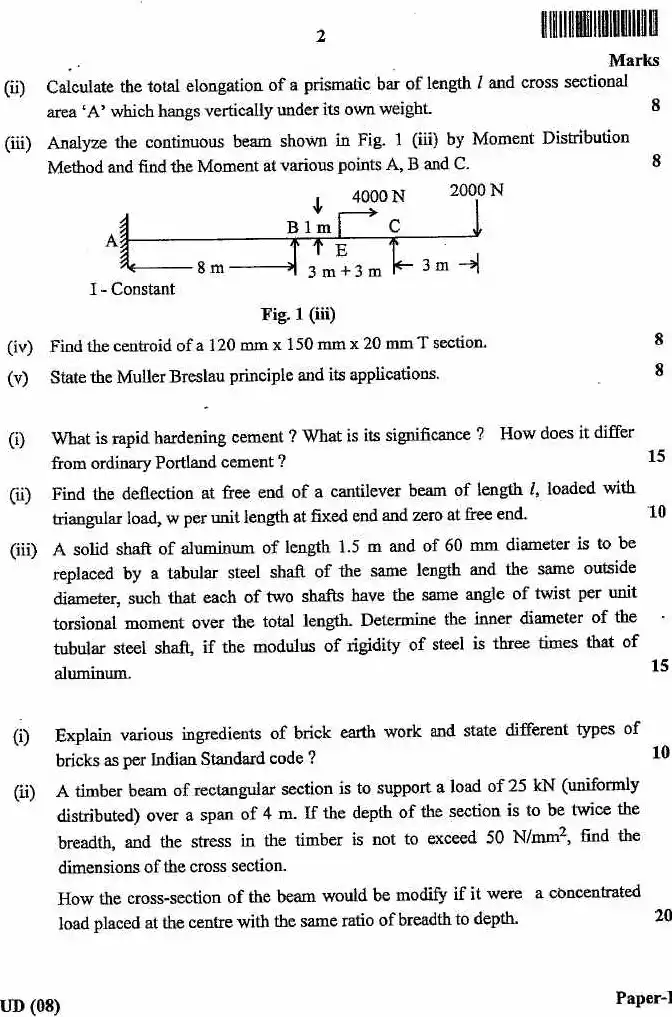

Page 2
JPSC AE Civil Engineering Paper-I 2023 question paper page 1 instructions scan PDF download

Free question paper download

Download question paper PDF

  • 170 KB
  • 7 pages
