Haryana Mechanical Engg Mains 2023 Question Paper

Haryana Government Jobs Engineer 2023

  • Year 2023
  • Conducted By Government of Haryana
  • Questions 3
  • Maximum Marks 200
  • Duration 3 Hours
  • Languages English & Hindi

Exam Details

Detail Information
Examination HCS (Ex.Br.) & Other Allied Services Mains Exam - Mechanical Engineering
Year 2023
Conducting Body Government of Haryana
Paper Mechanical Engineering
Subject Mechanical Engineering
Duration 3 Hours
Maximum Marks 200
Number of Questions 3
Question Type Descriptive / Subjective

The 2023 Mechanical Engineering paper for Haryana's HCS Ex-Br. & Allied Services Mains comprises two sections, with Section A containing five subparts totaling 40 marks. Candidates must answer five questions in total, with questions 1 and 5 compulsory and at least one question from each section. Page 2 contains the descriptive Q2(a), a torque-based rotation problem requiring torsional stress calculation, and Q2(b), which asks for explanations of critical speed, flyball governor, and cam pressure angle. The exam is bilingual (English and Hindi), with English as the final word in translation ambiguities. The overall paper is 200 marks, to be completed in 3 hours.

Major Topics Covered

  • Mechanical Engineering
  • Haryana Public Service Commission
  • Rotor Dynamics
  • Torsion in Shafts
  • Flywheel Theory
  • Cam Theory
  • Pressure Angle
  • Governor Mechanisms
  • Torque and Inertia
  • Moment of Inertia
  • Shear Modulus
  • Disk Rotor Systems
  • Dynamic Systems
  • Critical Speed
  • Flyball Governor
  • Cam Mechanisms
  • Vibrations in Rotating Machinery
  • Power Transmission
  • Engineering Mechanics
  • Examinations and Paper Structures

Why This Paper is Important

  • Useful for HCS (Ex.Br.) & Other Allied Services Mai preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

Instructions

  • 2023 MECHANICAL ENGINEERING मैकेनिकल इंजीनियरिंग Time: 3 hours Maximum Marks: 200 समय: 3 घंटे अधिकतम अंक : 200

  • This paper is divided into two Sections, Section-A and Section-B. ये प्रश्नपत्र दो खंडों में विभाजित है, खंड-A और खंड-B
  • Each Section contains four (4) questions. प्रत्येक खंड में चार प्रश्न है।
  • Candidate has to attempt five questions in all. परीक्षार्थी को पांच प्रश्नों का उत्तर लिखना है।
  • Question Nos. 1 and 5 are compulsory and out of the remaining, THREE questions are to be attempted choosing at least ONE question from each Section. प्रश्न संख्या 1 और 5 अनिवार्य है और शेष प्रश्नों में से किन्हीं तीन का उत्तर लिखना है, प्रत्येक खंड से एक प्रश्न को हल करना है।
  • Word limit in questions, where specified, should be adhered to. प्रश्नों में शब्द सीमा, जहाँ विनिर्दिष्ट है, का अनुसरण किया जाना चाहिए।
  • The number of marks carried by a question/part is indicated against it. प्रत्येक प्रश्न/ भाग के लिए नियत अंक उसके सामने दिए गए हैं।
  • Questions are printed in English & Hindi languages.
  • In case of any ambiguity in translation of any question, English version shall be treated as final. प्रत्येक प्रश्न हिन्दी और अंग्रेजी दोनों भाषाओं में छपा है। प्रश्नों के अनुवाद में किसी अस्पष्टता की स्थिति में, अंग्रेजी सस्करण को ही अन्तिम माना जाएगा। Mechanical Engineering / 2023 (1)

Questions (page 2)

Q1. Q1.

() 1(a) Flywheels / फ्लाईव्हील

() 1(b) Maximum shear stress theory of failure / विफलता का अधिकतम कतरनी तनाव (shear stress) सिद्धांत

() 1
(c) Role of plastics in Electrical vehicles / विद्युत वाहनों में प्लास्टिक की भूमिका

() 1(d) Taylor's tool life equation / टेलर का उपकरण जीवनकाल (tool life) समीकरण

() 1(e) Endurance limit of a ferrous material / लौह पदार्थ की सहनशक्ति सीमा

Q2. Q2(a). A disc with a moment of inertia J=0.5 kg-m2 is attached to one end of a shaft whose other end is fixed. The length and diameter of the shaft are 310 mm and 32 mm respectively. If the shear modulus of the shaft material is G = 8.2 x 104 MPa, determine the maximum shear stress developed in the shaft when the disc is subjected to a torque [20] 290 cos 315t N-m, where t is the time.

Q3.

() Q2(b). Explain the following:
(i) Critical speed of a rotor dynamic system
(ii) Flyball governor
(iii) Pressure angle of a cam

() (ii) Flyball governor

() (iii) Pressure angle of a cam

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

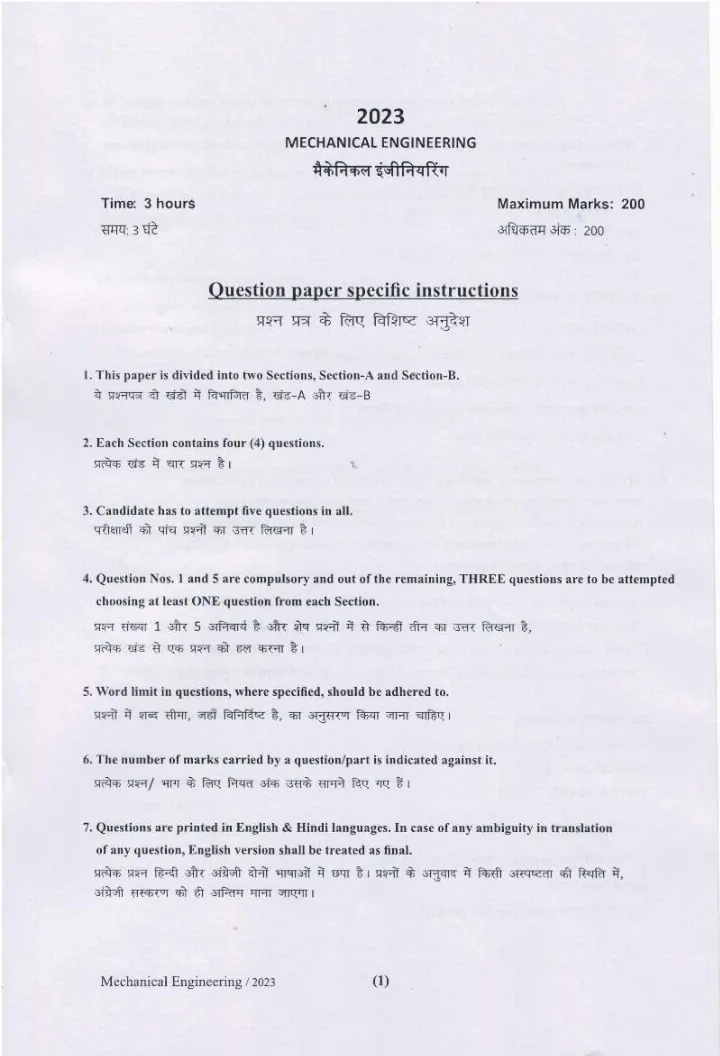

Page 1
Haryana Mechanical Engg Mains 2023 Question Paper — page 1 instructions scan PDF download
Page 2
Haryana Mechanical Engg Mains 2023 Question Paper — page 1 instructions scan PDF download

Free question paper download

Download question paper PDF

  • 3.6 MB
  • 5 pages
  • PDF format

Frequently asked questions

What is the exam year and title?

2023, Haryana HCS (Ex-Br.) & Other Allied Services Mains - Mechanical Engineering

How many sections are in the paper?

Two sections: Section A and Section B.

How many questions must be attempted?

Five questions in total.

Which questions are compulsory?

Questions 1 and 5 are compulsory.

From which section should you attempt at least one question?

At least one question from each section.

What are the language options for questions?

Questions are printed in English and Hindi; English version is treated as final in case of ambiguity.
