Haryana AE Mechanical 2024 Paper (33E) – OCR Repair & Questions
- Year 2024
- Conducted By Irrigation & Water Resources Department, Haryana
- Questions 18
- Maximum Marks 150
- Duration 3 Hours
- Languages Hindi & English
Exam Details
| Detail | Information |
|---|---|
| Examination | Assistant Engineer (Mechanical) |
| Year | 2024 |
| Conducting Body | Irrigation & Water Resources Department, Haryana |
| Paper | Assistant Engineer (Mechanical) |
| Subject | Mechanical Engineering |
| Duration | 3 Hours |
| Maximum Marks | 150 |
| Number of Questions | 18 |
| Question Type | Descriptive + objective |
This dataset corresponds to the 2024 Assistant Engineer (Mechanical) examination paper (33E) for the Irrigation & Water Resources Department, Haryana. Page 1 presents the exam header, the paper’s total questions (18) with a requirement to answer 15, the 3-hour duration, and a maximum of 150 marks. It also notes that the exam is bilingual (Hindi and English) and that no extra sheet will be provided. Page 2 provides repaired OCR content containing six descriptive/quantitative questions: Q1A and Q1B address the Merchant's model for orthogonal cutting and related calculations; Q2 covers the 3-2-1 principle in jigs and fixtures; Q3 involves performance metrics for an M/M/1 queue; Q4 discusses patterns and pattern materials in expendable mould casting; Q5 presents a classic EOQ-type inventory problem with specific data. The SEO content aggregates these topics into a comprehensive overview, with metadata, FAQ, topics, tags, and image optimization hints aimed at search visibility for Haryana government engineering exams.
Major Topics Covered
- Orthogonal cutting
- Merchant model
- Shear angle
- Chip formation
- Rake angle
- Cutting forces
- NC machining
- Queueing theory
- M/M/1 queue
- Performance measures
- Expendable mould casting
- Pattern materials
- Patterns
- Inventory management
- Economic Order Quantity (EOQ)
- Open store days
- Lead time
- Jigs and fixtures
- 3-2-1 principle
- Manufacturing processes
Why This Paper is Important
- Useful for Assistant Engineer (Mechanical) preparation
- Helps understand the latest exam pattern
- Useful for practice and self-assessment
- Covers frequently asked General Studies topics
- Helpful for analysing question trends
Related Resources
- HSPCB AEE Group-B SKT 2026 – Roll No Wise Marks
- Mechanical Engineering 2017 Haryana Mains Paper (Code 1151) – Q2-3
- Mechanical Engineering HCS Mains 2021 Question Paper (5406) - Haryana
- HCS Electrical Eng Mains 2021 Paper (33A) – Section A & B
- Civil Engineering HCS Mains 2021 Question Paper (Page 1-2)
Instructions

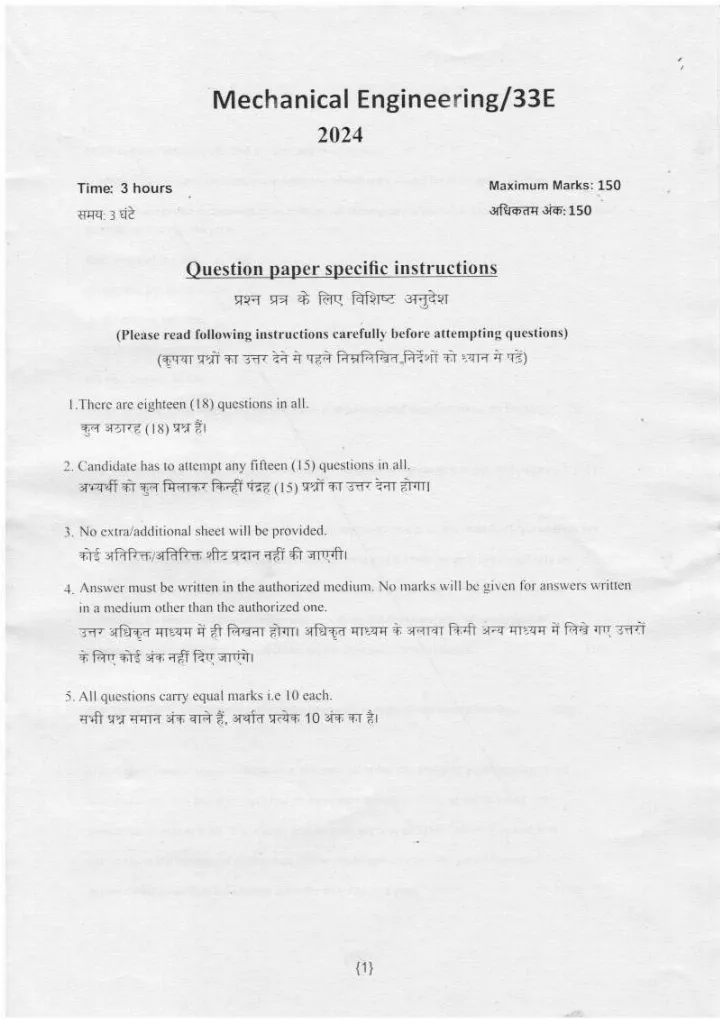

- Mechanical Engineering/33E 2024 Maximum Marks: 150 Time: 3 hours अधिकतम अंक: 150 समय: 3 घंटे
- प्रश्न प्रत्र के लिए विशिष्ट अनुदेश (Please read following instructions carefully before attempting questions) (कुपया प्रश्नों का उत्तर देने से पहले निम्नलिखित निर्देशों को ध्यान से पढ़ें)
- There are eighteen (18) questions in all. कुल अठारह (18) प्रश्न हैं।
- Candidate has to attempt any fifteen (15) questions in all. अभ्यर्थी को कुल मिलाकर किन्हीं पंद्रह (15) प्रश्नों का उत्तर देना होगा।
- No extra/additional sheet will be provided. कोई अतिरिक्त/अतिरिक्त शीट प्रदान नहीं की जाएगी।
- Answer must be written in the authorized medium.
- No marks will be given for answers written in a medium other than the authorized one. उत्तर अधिकृत माध्यम में ही लिखना होगा। अधिकृत माध्यम के अलावा किसी अन्य माध्यम में लिखे गए उत्तरों के लिए कोई अंक नहीं दिए जाएंगे।
- All questions carry equal marks i.e 10 each. सभी प्रश्न समान अंक वाले हैं, अर्थात प्रत्येक 10 अंक का है। the company of the state of the company the course in 1983 basic for and the state of the effect in the state of the state and articles madé an arren sor an e pula may be the contribution of the navel {1} L.
Questions (page 2)

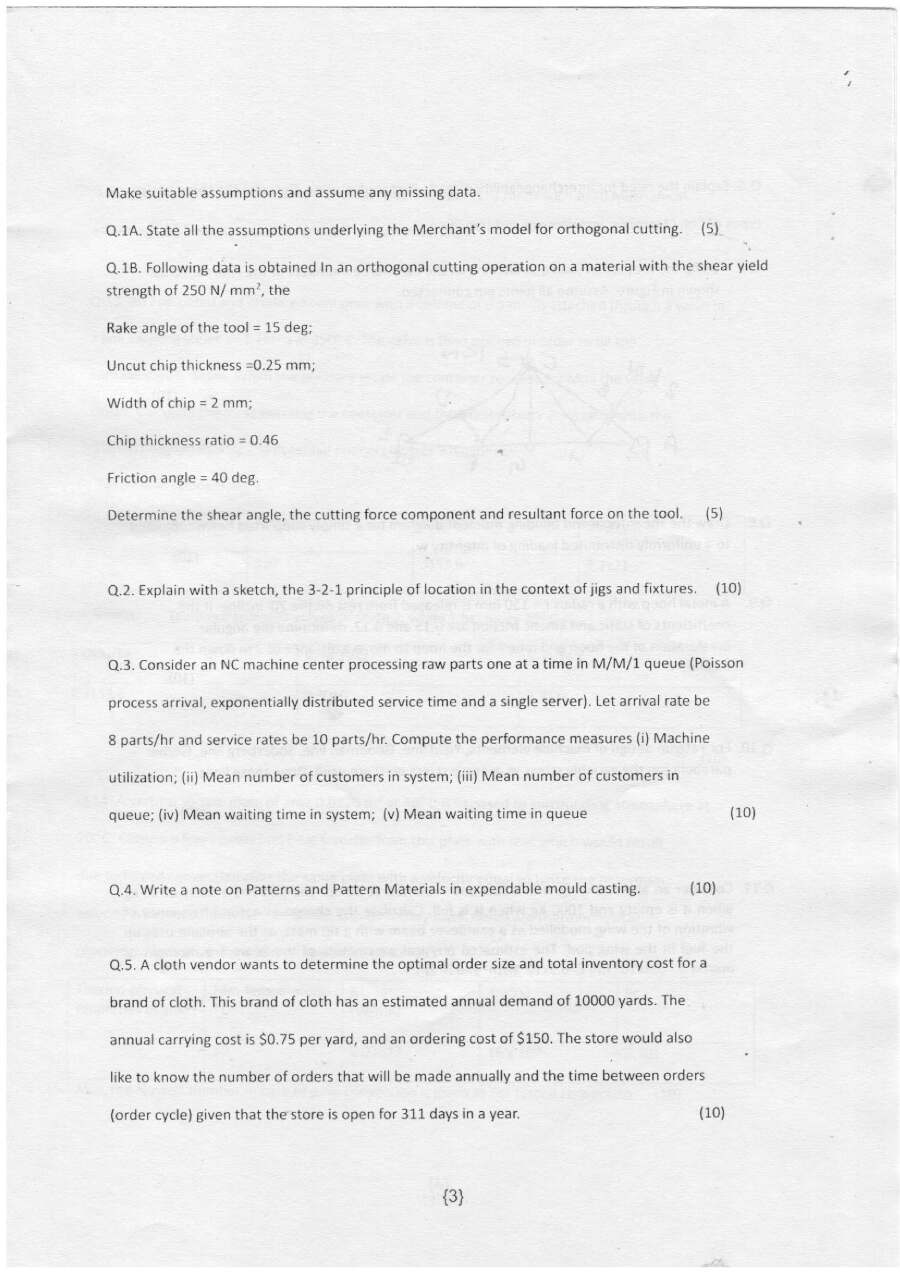

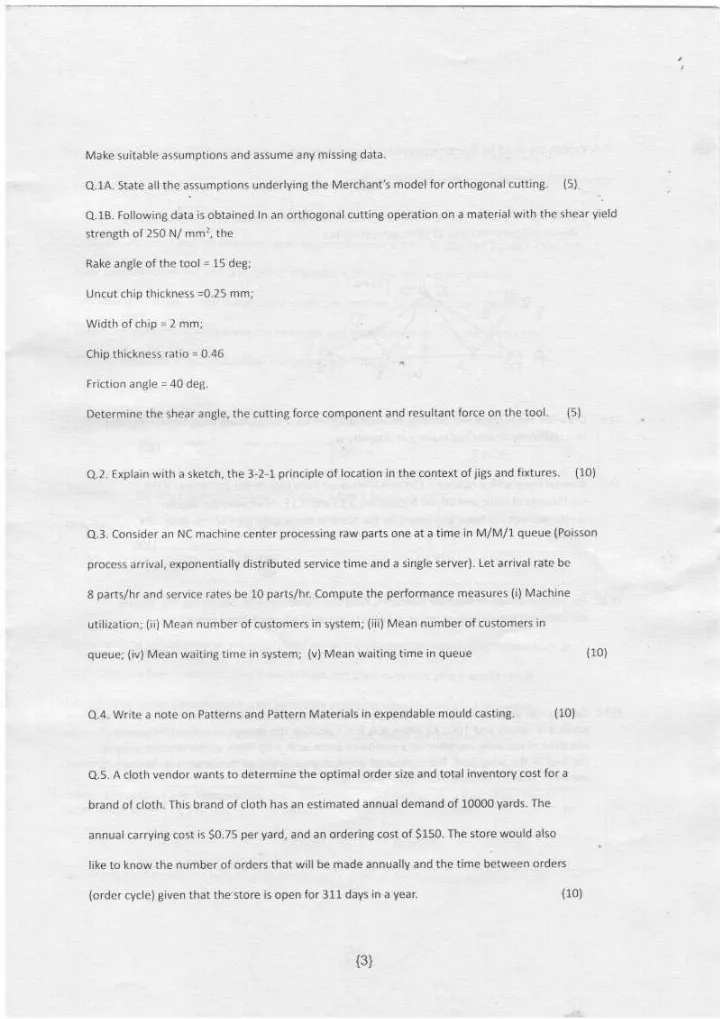

Q2. Q.1B. Following data is obtained In an orthogonal cutting operation on a material with the shear yield strength of 250 N/mm2, the Rake angle of the tool = 15 deg; Uncut chip thickness = 0.25 mm; Width of chip = 2 mm; Chip thickness ratio = 0.46 Friction angle = 40 deg. Determine the shear angle, the cutting force component and resultant force on the tool.
Q3. Q.2. Explain with a sketch, the 3-2-1 principle of location in the context of jigs and fixtures.
Q4.
Q.3. Consider an NC machine center processing raw parts one at a time in M/M/1 queue (Poisson process arrival, exponentially distributed service time and a single server). Let arrival rate be 8 parts/hr and service rates be 10 parts/hr. Compute the performance measures
(i) Machine utilization;
(ii) Mean number of customers in system;
(iii) Mean number of customers in queue;
(iv) Mean waiting time in system;
(v) Mean waiting time in queue
Q5. Q.4. Write a note on Patterns and Pattern Materials in expendable mould casting.
Q6. Q.5. A cloth vendor wants to determine the optimal order size and total inventory cost for a brand of cloth. This brand of cloth has an estimated annual demand of 10000 yards. The annual carrying cost is 0.75 per yard, and an ordering cost of 150. The store would also like to know the number of orders that will be made annually and the time between orders (order cycle) given that the store is open for 311 days in a year.
Question paper preview
Scanned pages 1–2 for reference. Download the official PDF for the full paper.
Free question paper download
Download question paper PDF
Your download starts in 10s
Preparing your question paper file…
Frequently asked questions
How many total questions are in the paper?
There are eighteen (18) questions in total; candidates must answer fifteen (15) of them.
What is the maximum marks and duration of the exam?
Maximum marks are 150 and the duration is 3 hours.
In which languages can answers be written?
Answers can be written in Hindi or English (bilingual policy).
Are there any instructions about extra sheets?
No extra/additional sheets will be provided.
Do all questions carry the same marks?
Yes, each question carries 10 marks.
Which department conducts this exam?
Irrigation & Water Resources Department, Haryana.
