Engineering Services 2023 Electronics & Telecommunication Paper II PDF

Central Government Jobs Engineer 2023

  • Year 2023
  • Conducted By UPSC
  • Questions 8
  • Maximum Marks 300
  • Duration Three Hours
  • Languages English

Exam Details

Detail Information
Examination Engineering Services (Main) Examination
Year 2023
Conducting Body UPSC
Paper Electronics and Telecommunication Engineering Paper - II
Subject Electronics and Telecommunication Engineering
Duration Three Hours
Maximum Marks 300
Number of Questions 8
Question Type Mixed

This is the official question paper for the Engineering Services (Main) Examination 2023, Paper II, focusing on Electronics and Telecommunication Engineering. Conducted by UPSC, this paper carries a maximum of 300 marks and candidates are allotted three hours to complete it. It comprises eight questions divided into two sections, with compulsory questions and a requirement to attempt at least one from each section. This paper is crucial for aspirants aiming for top positions in engineering services, providing a realistic assessment of their technical knowledge and problem-solving abilities in the specified domain.

Major Topics Covered

  • Electronics and Telecommunication Engineering
  • Signal Processing
  • Control Systems
  • Computer Architecture

Why This Paper is Important

  • Useful for ENGINEERING SERVICES (MAIN) EXAMINATION preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • Engineering Services Main 2023 Paper I
  • Engineering Services Main 2022 Paper II
  • GATE 2023 Electronics and Communication Engineering
  • ESE 2023 Paper II Answer Key
  • UPSC Engineering Services 2023 Solutions
  • ESE Electronics and Telecommunication Engineering Syllabus
  • UPSC Engineering Services Main Syllabus
  • ESE Exam Pattern

Instructions

  • There are EIGHT questions divided in TWO sections.
  • Candidate has to attempt FIVE questions in all.
  • Questions No. 1 and 5 are compulsory and out of the remaining, any THREE are to be attempted choosing at least ONE question from each section.
  • The number of marks carried by a question / part is indicated against it.
  • Wherever any assumptions are made for answering a question, they must be clearly indicated.
  • Diagrams/figures, wherever required, shall be drawn in the space provided for answering the question itself.
  • Unless otherwise mentioned, symbols and notations have their usual standard meanings.
  • Attempts of questions shall be counted in sequential order.
  • Unless struck off, attempt of a question shall be counted even if attempted partly.
  • Any page or portion of the page left blank in the Question-cum-Answer (QCA) Booklet must be clearly struck off.
  • Answers must be written in ENGLISH only.

Questions (page 2)

Section A

Q1.

(a) A band limited random signal X(t) has two-sided power spectral density SX(f) (PSD) given by
SX(f) = \begincases 10-6(3000 - \mid f \mid) \text watts/Hz for \mid f \mid ≤ 3 \text kHz \\ 0, \hspace1.5cm \textotherwise. \endcases
where f is frequency expressed in Hz.
This signal modulates a carrier cos 16000pit and resultant signal is passed through an ideal band pass filter of unit gain with central frequency of 8 kHz and bandwidth of 2 kHz. Draw two-sided power spectral density diagram for the given signal, modulated carrier and the output of the filter.

(b) Convert the given block diagram to equivalent signal flow graph. Find the transfer function using Mason's Gain Formula.

(c) What do cores mean in a processor ? Differentiate between Multi-core and Many-core architectures.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

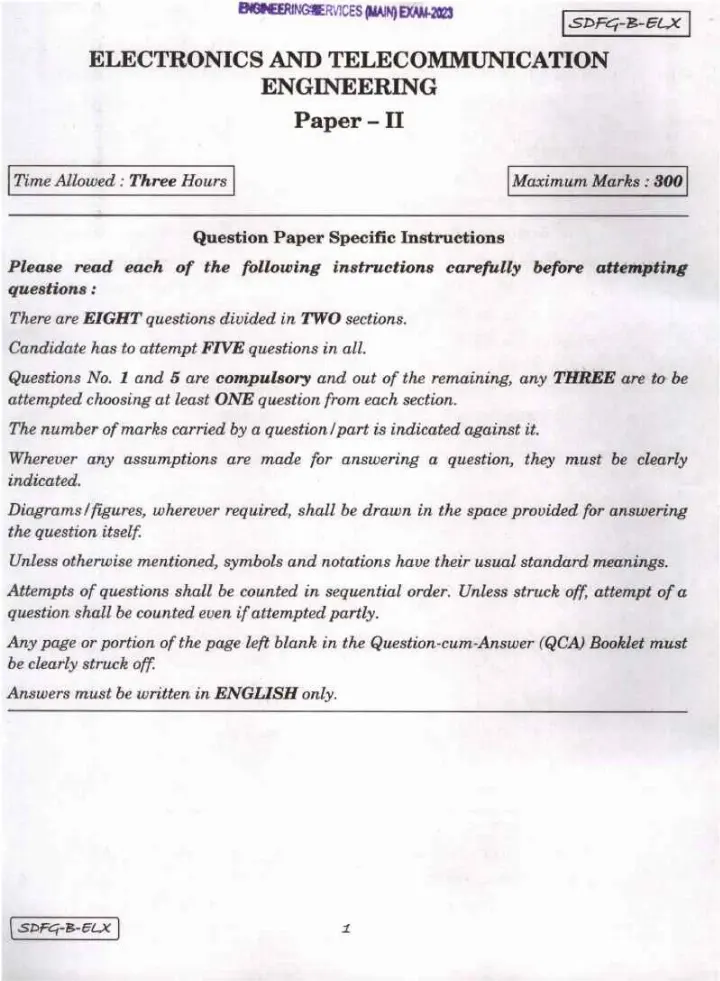

Page 1
UPSC Engineering Services Main 2023 Paper II for Electronics and Telecommunication Engineering page 1 scan, showing exam details and instructions. PDF download.
Page 2
UPSC Engineering Services Main 2023 Paper II for Electronics and Telecommunication Engineering page 1 scan, showing exam details and instructions. PDF download.

Free question paper download

Download question paper PDF

  • 6.2 MB
  • 12 pages
  • PDF format

Frequently asked questions

What is the full name of the exam?

The full name of the exam is the Engineering Services (Main) Examination.

Which year is this question paper for?

This question paper is for the 2023 examination.

Who conducts the Engineering Services Examination?

The Engineering Services Examination is conducted by UPSC (Union Public Service Commission).

What is the subject of Paper II?

Paper II is for Electronics and Telecommunication Engineering.

What is the maximum marks for this paper?

The maximum marks for this paper are 300.

What is the time duration allowed for this paper?

The time allowed for this paper is Three Hours.
