Indian Forest Service 2017 Agricultural Engineering Paper II PDF

Central Government Jobs Engineer 2017

  • Year 2017
  • Conducted By UPSC
  • Questions 8
  • Maximum Marks 200
  • Duration Three Hours
  • Languages English

Exam Details

Detail Information
Examination Indian Forest Service (Main) Examination
Year 2017
Conducting Body UPSC
Paper Agricultural Engineering Paper II
Subject Agricultural Engineering
Duration Three Hours
Maximum Marks 200
Number of Questions 8
Question Type Mixed

This is the question paper for the Indian Forest Service (Main) Examination 2017, specifically for Agricultural Engineering Paper II. Conducted by UPSC, this paper carries a maximum of 200 marks and allows three hours for completion. It is designed for candidates aspiring to join the Indian Forest Service. The paper consists of a mix of objective and descriptive questions, testing in-depth knowledge of agricultural engineering principles and their application. Aspirants can use this paper to understand the exam pattern, difficulty level, and important topics covered, aiding in their preparation strategy.

Major Topics Covered

  • Farm Mechanization
  • Tractor Design
  • Internal Combustion Engines
  • Biogas Plants
  • Tillage Systems
  • Cooling Systems
  • Energy Efficient Cooking Stoves
  • Wind Energy Systems

Why This Paper is Important

  • Useful for Indian Forest Service (Main) Examination preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • Indian Forest Service (Main) Examination 2017 Agricultural Engineering Paper I
  • Indian Forest Service (Main) Examination 2016 Agricultural Engineering Paper II
  • Engineering Services Examination 2017 Mechanical Engineering Paper I
  • IFS Main 2017 Agricultural Engineering Paper II Answer Key
  • Indian Forest Service Main Syllabus
  • Agricultural Engineering Syllabus for UPSC Exams
  • IFS Main Exam Pattern
  • UPSC Exam Pattern

Instructions

  • I.F.S. EXAM-(M)2017 वियोज्य DETACHABLE AGRICULTURAL ENGINEERING Paper II Maximum Marks: 200

  • There are EIGHT questions in all, out of which FIVE are to be attempted.
  • Out of the remaining SIX questions, THREE are to be attempted selecting at least ONE question from each of the two Sections A and B.
  • Attempts of questions shall be counted in sequential order.
  • Unless struck off, attempt of a question shall be counted even if attempted partly.
  • Any page or portion of the page left blank in the Question-cum-Answer Booklet must be clearly struck off.
  • The number of marks carried by a question/part is indicated against it.
  • Answers must be written in ENGLISH only.
  • Unless otherwise mentioned, symbols and notations have their usual standard meanings.
  • Assume suitable data, if necessary and indicate the same clearly.
  • Neat sketches may be drawn, wherever required.

Questions (page 2)

Section A

Q1.

(a) Define farm mechanization index. Discuss the mechanization status of different farm operations in India. What is the power availability on Indian farms and their constituent sources compared to developed countries.

(b) Differentiate between the following:
(i) CI and SI engine
(ii) Octane Number and Cetane Number
(iii) Thermal efficiency and Mechanical efficiency
(iv) Caster angle and Camber angle in tractor

(c) List the factors to be considered for the design of biogas plant. Briefly discuss the components of a biogas plant with the help of neat sketch.

(d) Total draft of a 4-bottom trailed Mould Board plough is 2000 kg when it is moving at a speed of 6 km/h. Calculate
(i) the unit draft in kg/cm^2 if the depth of cut is 20 cm
(ii) drawbar horse power required to operate the implement and
(iii) field capacity.

(e) What is secondary tillage system? Write its objectives. Explain utility of spike tooth and spring tooth harrows.

Section A

Q2.

(a) Explain the importance of cooling system in a tractor. Describe the principle and working of a forced circulation system. Why thermostat is used?

(b) Explain the working principle of internal combustion engine. How it differs from external combustion engine?

(c) A 4-stroke engine has a mean effective pressure of 7 kg/cm^2; area of piston 730 cm2; 45 cm stroke length; 110 kg-m torque due to brake load; 4.5 kg fuel consumption per hour and working speed 120 rpm. Calculate IHP, BHP, Mechanical efficiency and specific fuel consumption.

(d) Calculate the compression ratio and clearance volume of an engine whose dimensions are 100 imes 120 mm and the length of clearance space at top dead centre being 8 mm.

Section A

Q3.

(a) Describe in brief various energy efficient cooking stoves and alternate cooking fuels.

(b) Describe the working of wind energy system with the help of line diagram along with main components.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

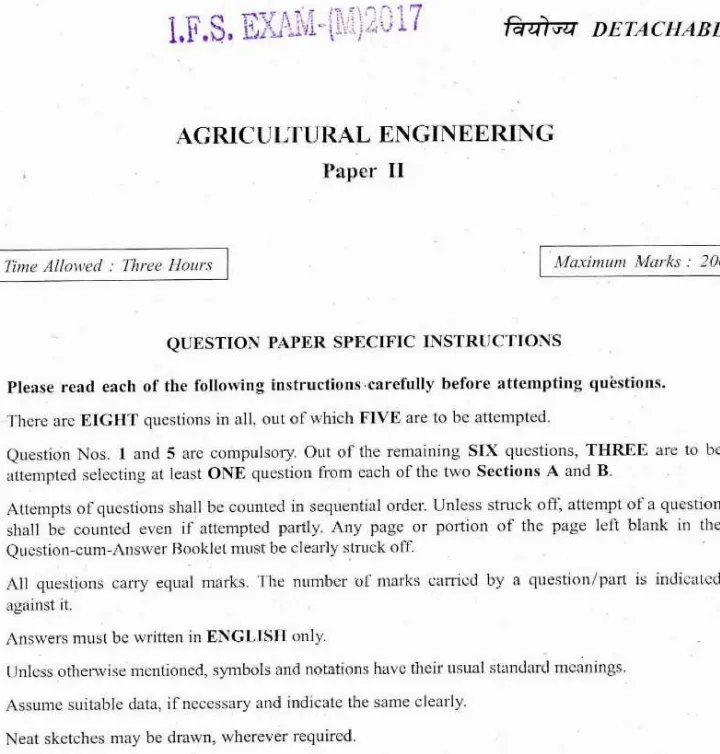

Page 1
Indian Forest Service Main 2017 Agricultural Engineering Paper II question paper page 1 scan PDF download. UPSC IFS exam instructions and header.
Page 2
Indian Forest Service Main 2017 Agricultural Engineering Paper II question paper page 1 scan PDF download. UPSC IFS exam instructions and header.

Free question paper download

Download question paper PDF

  • 1.8 MB
  • 4 pages
  • PDF format

Frequently asked questions

What is the name of the examination?

The examination is the Indian Forest Service (Main) Examination.

Which year is this question paper from?

This question paper is from the year 2017.

Who conducts the Indian Forest Service Examination?

The Indian Forest Service Examination is conducted by UPSC (Union Public Service Commission).

What is the subject of this paper?

This paper is for Agricultural Engineering, specifically Paper II.

What is the maximum marks for this paper?

The maximum marks for Agricultural Engineering Paper II is 200.

What is the time allowed to complete the paper?

The time allowed to complete the paper is Three Hours.
