UPSC Civil Services Mechanical Engineering Paper I 2018 PDF

Central Government Jobs Engineer 2018

  • Year 2018
  • Conducted By UPSC
  • Questions 8
  • Maximum Marks 250
  • Duration Three Hours
  • Languages Hindi & English

Exam Details

Detail Information
Examination UPSC Civil Services Main Examination
Year 2018
Conducting Body UPSC
Paper Mechanical Engineering Paper - I
Subject Mechanical Engineering
Duration Three Hours
Maximum Marks 250
Number of Questions 8
Question Type Mixed

This is the official question paper for the Mechanical Engineering Paper I of the UPSC Civil Services Main Examination held in 2018. The paper consists of 8 questions divided into two sections, with candidates required to answer a total of five questions. Questions 1 and 5 are compulsory, and at least one question must be attempted from each section. The exam is conducted by UPSC and allows three hours to complete, with a maximum of 250 marks. This paper is crucial for aspirants preparing for the Mechanical Engineering specialization in the Civil Services exam.

Major Topics Covered

  • Mechanical Engineering
  • Statics
  • Forces
  • Tension
  • Pulleys
  • Equilibrium

Why This Paper is Important

  • Useful for UPSC Civil Services Main Examination preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • UPSC Civil Services Main Examination 2018 Mechanical Engineering Paper II
  • UPSC Civil Services Main Examination 2017 Mechanical Engineering Paper I
  • IES 2018 Mechanical Engineering Paper I
  • UPSC Civil Services Main Examination 2018 Mechanical Engineering Paper I Answer Key
  • Mechanical Engineering Paper I 2018 Solutions
  • UPSC Civil Services Main Examination Mechanical Engineering Syllabus
  • Mechanical Engineering Syllabus for UPSC Mains
  • UPSC Civil Services Main Examination Pattern

Instructions

  • पुस्तिका के मुख-पृष्ठ पर निर्दिष्ट स्थान पर किया जाना चाहिए ।
  • प्राधिकृत माध्यम के अतिरिक्त अन्य किसी माध्यम में लिखे गए उत्तर पर कोई अंक नहीं मिलेंगे ।
  • प्रश्न का उत्तर देने के लिए बदि कोई पूर्वधारणाएँ बनाई गई हों, तो उन्हें स्पष्ट रूप से निर्दिष्ट कीजिए ।
  • जहाँ आवश्यक हो, आरेखों व चित्राकृतियों को, प्रश्न का उत्तर देने के लिए दिए गए स्थान में ही बनाइए ।
  • जब तक उल्लिखित न हो. संकेत तथा शब्दावली प्रचलित मानक अर्थों में प्रयुक्त हैं ।
  • प्रश्मों के उत्तरों की गणना क्रमानुसार की जाएगी ।
  • यदि काटा नहीं हो, तो प्रश्न के उत्तर की गणना की जाएगी चाहे वह उत्तर अंशतः दिया गया हो ।
  • प्रश्न-सह-उत्तर पुस्तिका में खाली छोड़ा हुआ पुष्ठ या उसके अंश को स्पष्ट रूप से काटा जाना चाहिए ।

  • There are EIGHT questions divided in TWO SECTIONS and printed both in HINDI and in ENGLISH.
  • Candidate has to attempt FIVE questions in all.
  • Questions no. 1 and 5 are compulsory and out of the remaining, any THREE are to be attempted choosing at least ONE question from each section.
  • The number of marks carried by a question [ part is indicated against it.
  • Answers must be written in the medium authorized in the Admission Certificate which must be stated clearly on the cover of this Question-cum-Answer (QCA) Booklet in the space provided.
  • No marks will be given for answers written in a medium other than the authorized one.
  • Wherever any assumptions are made for answering a question, they must be clearly indicated.
  • Diagrams/Figures, wherever required, shall be drawn in the space provided for answering the question itself.
  • Unless otherwise mentioned, symbols and notations carry their usual standard meanings.
  • Attempts of questions shall be counted in sequential order.
  • Unless struck off, attempt of a question shall be counted even if attempted partly.
  • Any page or portion of the page left blank in the Question-cum-Answer Booklet must be clearly struck off.

Questions (page 2)

Section A

Q1.

(a) एक 5 m लम्बी रस्सी ACB, 3 m की दूरी पर स्थित दो खड़ी दीवारों के A एवं B बिन्दुओं पर संलग्न है (चित्र 1) । 200 N भार एक नगण्य त्रिज्या वाली घिरनी पर निलंबित है तथा रस्सी के साथ बिना घर्षण के लुढ़कने हेतु स्वतंत्र है। संतुलन की अवस्था में घिरनी द्वारा ग्रहण की गई दूरी X तथा रस्सी में उत्पन्न तनाव बल भी ज्ञात कीजिए ।
A cord ACB, 5 m long is attached at points A and B to the vertical walls, 3 m apart (Figure 1). A pulley of negligible radius carries a suspended load of 200 N and is free to roll without friction along the cord. Determine the position of equilibrium as defined by the distance X, that the pulley will assume and also the tensile force in the cord.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

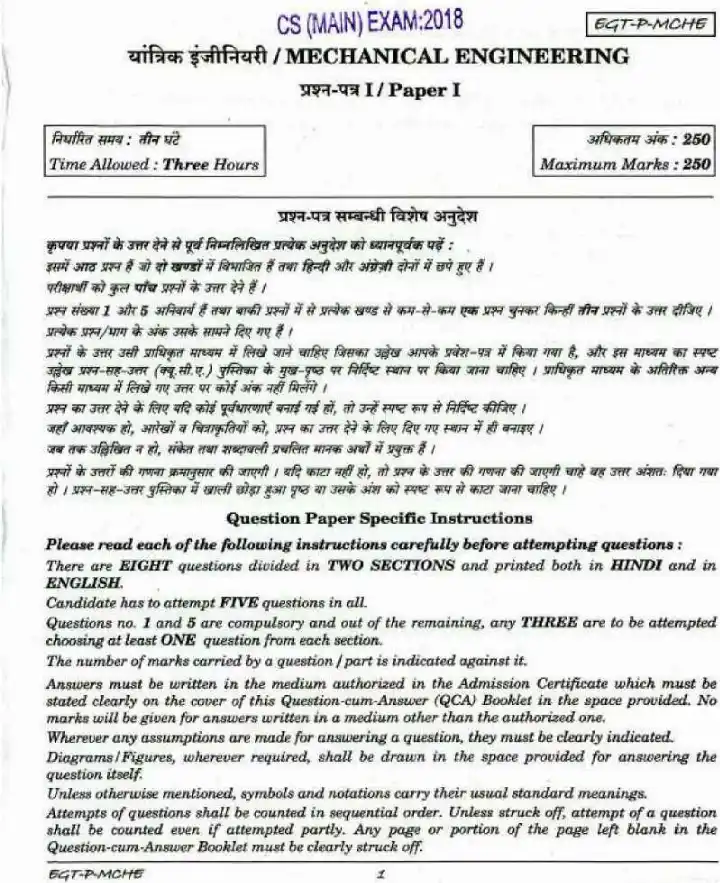

Page 1
UPSC Civil Services Main Examination 2018 Mechanical Engineering Paper I page 1 instructions scan PDF download

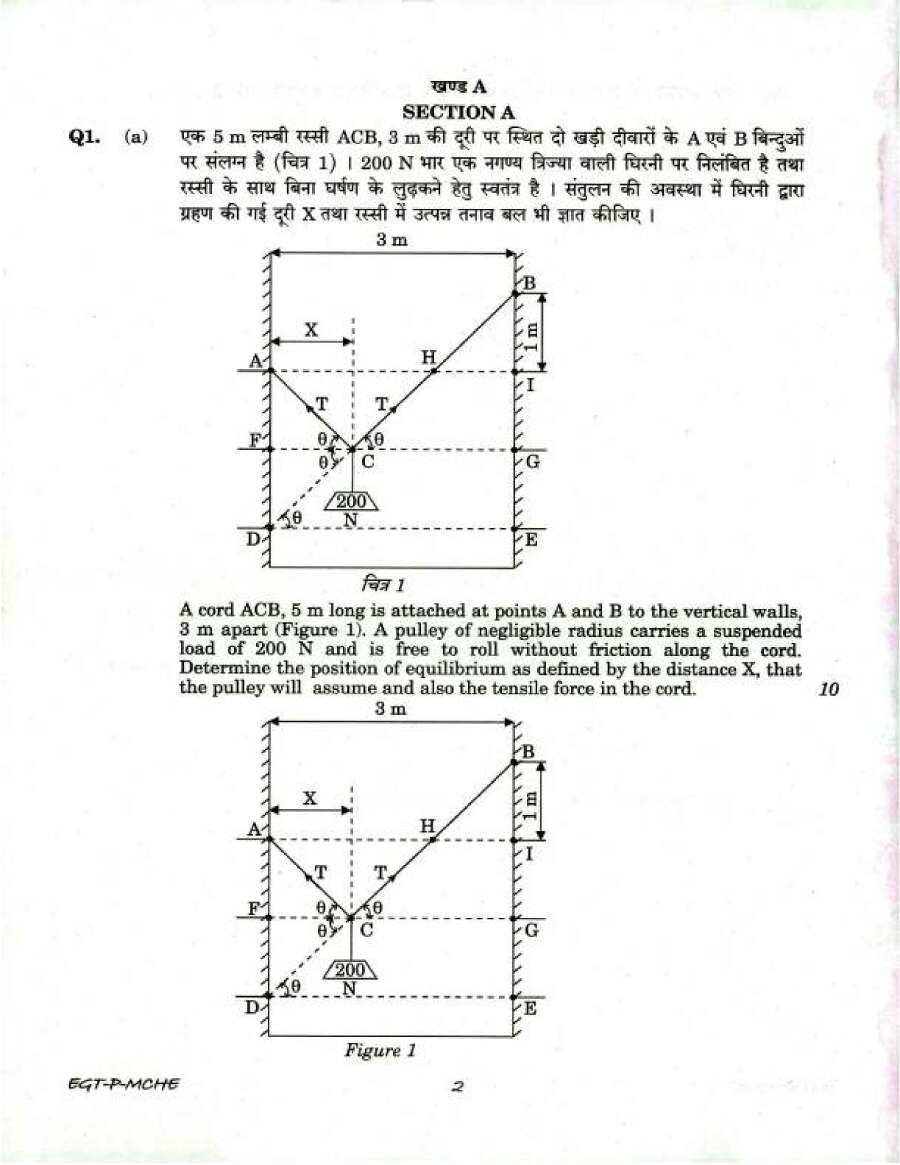

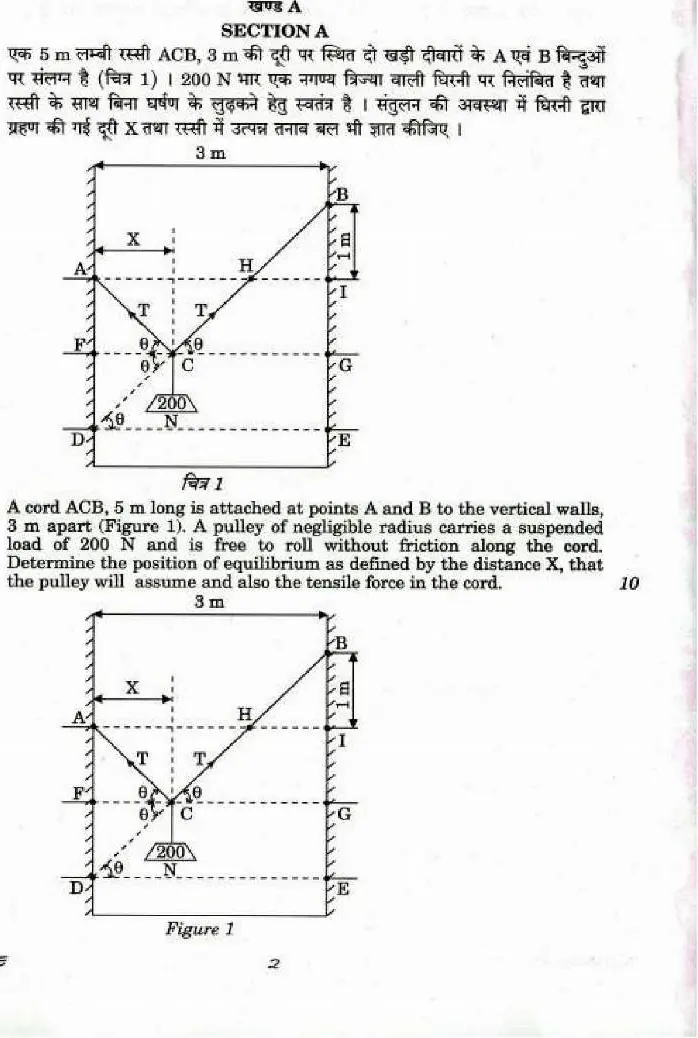

Page 2
UPSC Civil Services Main Examination 2018 Mechanical Engineering Paper I page 1 instructions scan PDF download

Free question paper download

Download question paper PDF

  • 1.0 MB
  • 16 pages
  • PDF format
