Indian Forest Service 2019 Mechanical Engineering Paper II PDF

Central Government Jobs Engineer 2019

  • Year 2019
  • Conducted By UPSC
  • Questions 8
  • Maximum Marks 200
  • Duration Three Hours
  • Languages English

Exam Details

Detail Information
Examination Indian Forest Service (Main) Examination
Year 2019
Conducting Body UPSC
Paper Mechanical Engineering Paper - II
Subject Mechanical Engineering
Duration Three Hours
Maximum Marks 200
Number of Questions 8
Question Type Mixed

This is the official question paper for the Indian Forest Service (Main) Examination 2019, Paper II, focusing on Mechanical Engineering. Conducted by UPSC, this paper carries a maximum of 200 marks and is to be completed within three hours. It is a crucial resource for aspirants preparing for the Mechanical Engineering section of the IFS Main exam, offering insights into the types of questions, marking scheme, and difficulty level. Studying this paper can significantly aid in targeted preparation and understanding the exam's scope.

Major Topics Covered

  • Mechanical Engineering
  • Thermodynamics
  • Fluid Mechanics
  • Heat Transfer
  • Boilers
  • Turbines
  • Similitude
  • Entropy
  • Available Energy

Why This Paper is Important

  • Useful for Indian Forest Service (Main) Examination preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • Indian Forest Service (Main) Examination 2018 Mechanical Engineering Paper II
  • Indian Forest Service (Main) Examination 2020 Mechanical Engineering Paper II
  • Engineering Services Examination 2019 Mechanical Engineering Paper I
  • Indian Forest Service 2019 Mechanical Engineering Paper II Answer Key
  • Indian Forest Service Mechanical Engineering Syllabus
  • UPSC Main Exam Syllabus
  • Indian Forest Service Exam Pattern
  • UPSC Main Exam Pattern

Instructions

  • There are EIGHT questions in all, out of which FIVE are to be attempted.
  • Out of the remaining SIX questions, THREE are to be attempted selecting at least ONE question from each of the two Sections A and B.
  • Attempts of questions shall be counted in sequential order.
  • Unless struck off, attempt of a question shall be counted even if attempted partly.
  • Any page or portion of the page left blank in the Question-cum-Answer Booklet must be clearly struck off.
  • The number of marks carried by a question/part is indicated against it.
  • Answers must be written in ENGLISH only.
  • Unless otherwise mentioned, symbols and notations have their usual standard meanings.
  • Assume suitable data, if necessary and indicate the same clearly.
  • Neat sketches may be drawn, wherever required.
  • Newton may be converted to kgf using the equality 1 kilonewton (1 kN) ---- 100 kgf, if found necessary.
  • Take: 1 kcal = 4.187 kJ and 1 kg/cm2 - 0.98 bar 1 bar = 10^5 pascals Universal gas constant = 8314.6 J/kmol-K Psychrometric chart is enclosed.

Questions (page 2)

Section A

Q1.

(a) A non-flow quasi-static process occurs for which P = -3V + 16 bar, where V is the volume in m3. What is the work done when V changes from 2 \text m3 to 6 m3?

(b) Air flows steadily at the rate of 1 kg/s through an air compressor. The properties of air at entry are velocity 7 m/s, pressure 105 kPa, specific volume 0.95 m3/kg. The properties at exit are velocity 5 m/s, pressure 700 kPa, specific volume 0.19 \text m3/kg. The internal energy of the air increases by 95 kJ/kg, as it flows through the compressor. Cooling water in the compressor jacket removes heat from the air at the rate of 60 kW.
(i) Compute the rate of shaft work input to the air, in kW.
(ii) Find the ratio of inlet pipe diameter to outlet pipe diameter.

(c) Define specific speed of a turbine. Derive its expression in terms of speed, power and head.

(d) Explain what you understand by Similitude. Further, explain the following:
(i) Geometric Similarity
(ii) Kinematic Similarity
(iii) Dynamic Similarity

(e) Sketch and describe a natural circulation high pressure boiler.

Section A

Q2.

(a) A system at 500 K receives 7000 kJ/min from a source at 1000 K. The temperature of atmosphere is 300 K. Assuming that the temperature of the system and source remain constant during heat transfer, find out :
(i) The entropy produced during heat transfer
(ii) The decrease in available energy of source after heat transfer and increase in available energy of the system.
Show the process on the T-s diagram and mark the increase in unavailable energy.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

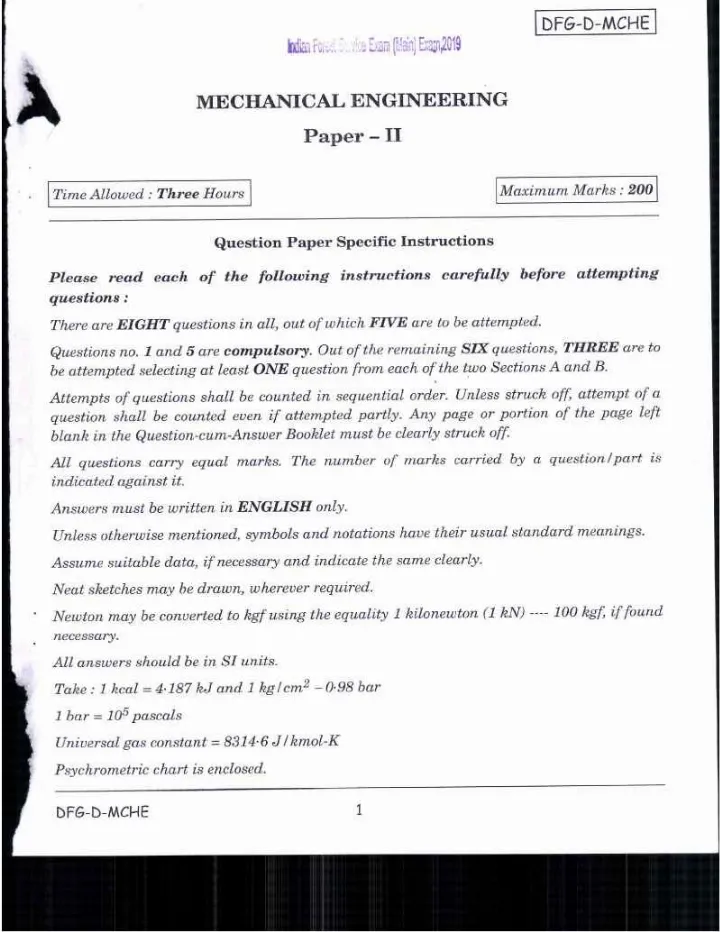

Page 1
Indian Forest Service (Main) Examination 2019 Mechanical Engineering Paper II question paper page 1 instructions scan PDF download UPSC

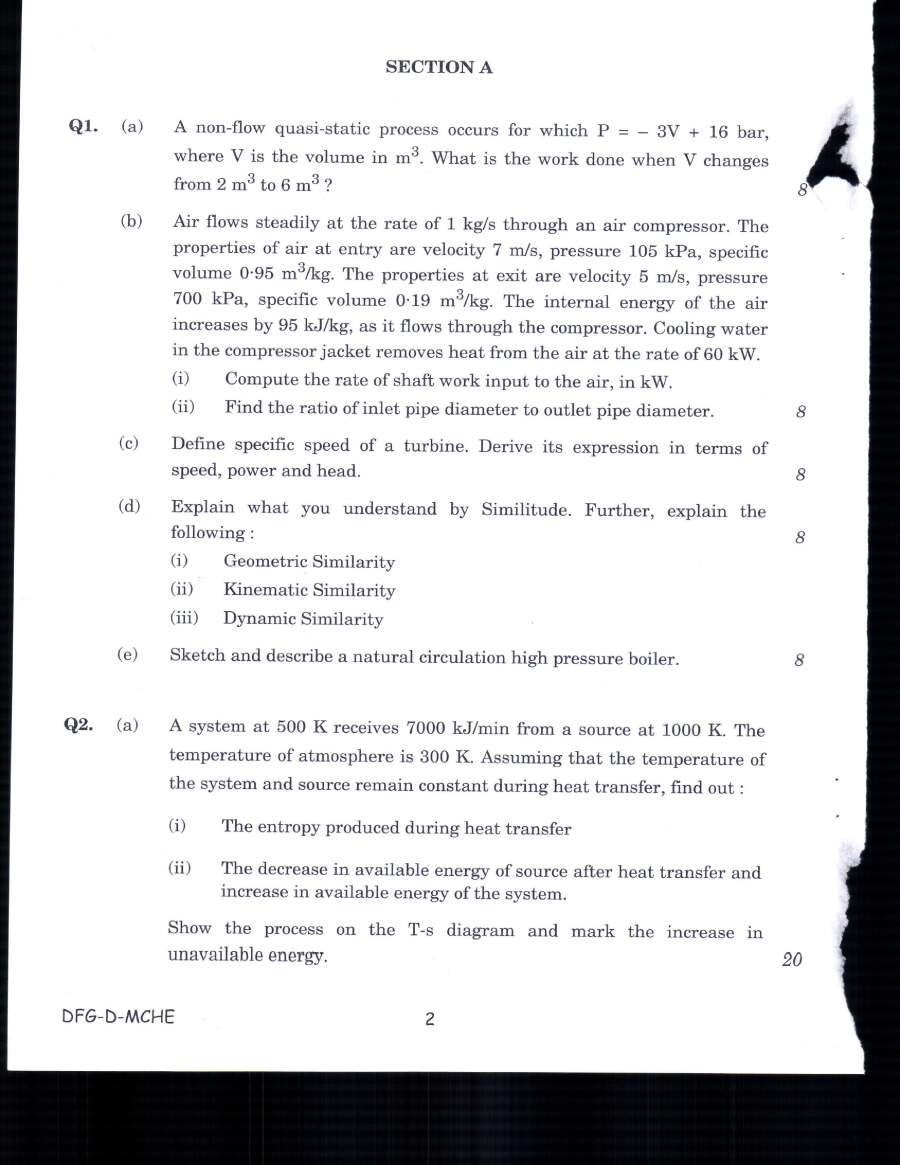

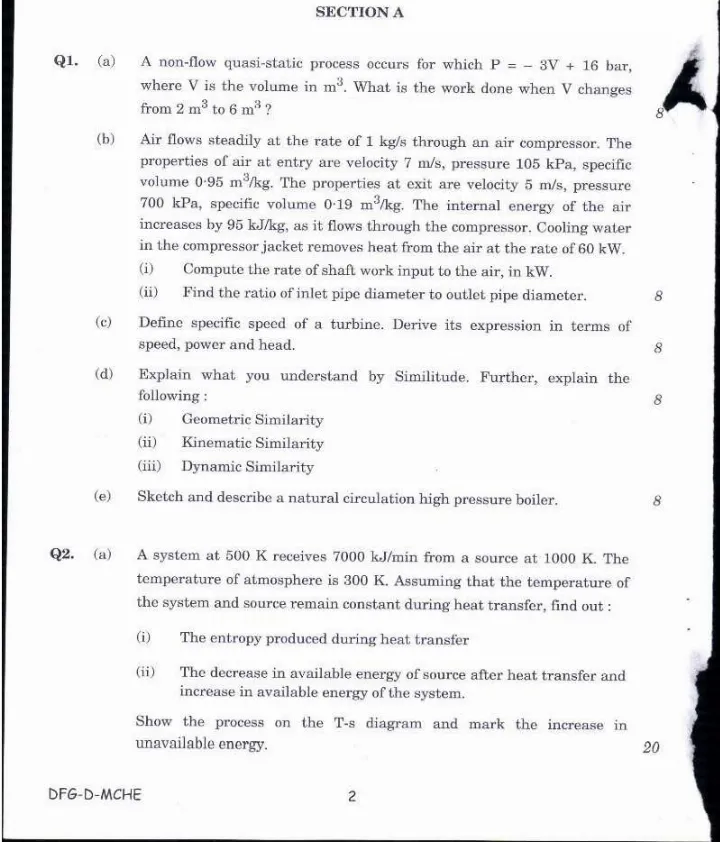

Page 2
Indian Forest Service (Main) Examination 2019 Mechanical Engineering Paper II question paper page 1 instructions scan PDF download UPSC

Free question paper download

Download question paper PDF

  • 7.9 MB
  • 16 pages
  • PDF format
