UPSC Engineering Services Electrical Engineering Paper II 2020 Question Paper PDF

Central Government Jobs Engineer 2020

  • Year 2020
  • Conducted By UPSC
  • Questions 8
  • Maximum Marks 300
  • Duration Three Hours
  • Languages English

Exam Details

Detail Information
Examination UPSC Engineering Services (Main) Examination
Year 2020
Conducting Body UPSC
Paper Electrical Engineering Paper - II
Subject Electrical Engineering
Duration Three Hours
Maximum Marks 300
Number of Questions 8
Question Type Mixed

This is the official question paper for the UPSC Engineering Services (Main) Examination 2020, specifically for Electrical Engineering Paper II. Conducted by the UPSC, this paper is designed to assess candidates' in-depth knowledge in electrical engineering subjects. The exam allows three hours to complete and is worth a maximum of 300 marks. It comprises eight questions divided into two sections, with candidates required to attempt five, including compulsory questions. This paper is crucial for aspirants aiming to secure a position in the engineering services, providing a clear understanding of the exam's scope and difficulty.

Major Topics Covered

  • Electrical Engineering
  • Circuit Analysis
  • Bode Plots
  • LTIV Systems
  • Induction Motors
  • Torque Calculation

Why This Paper is Important

  • Useful for UPSC Engineering Services (Main) Examina preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • UPSC Engineering Services (Main) Examination 2019 Electrical Engineering Paper II
  • UPSC Engineering Services (Main) Examination 2021 Electrical Engineering Paper II
  • UPSC Engineering Services (Main) Examination 2020 Electrical Engineering Paper I
  • UPSC ESE 2020 Electrical Engineering Paper II Answer Key
  • UPSC ESE Electrical Engineering Syllabus
  • UPSC ESE Main Exam Syllabus
  • UPSC ESE Exam Pattern
  • UPSC ESE Main Exam Pattern

Instructions

  • There are EIGHT questions divided in TWO sections.
  • Candidate has to attempt FIVE questions in all.
  • Questions No. 1 and 5 are compulsory and out of the remaining, THREE are to be attempted choosing at least ONE question from each Section.
  • The number of marks carried by a question / part is indicated against it.
  • Wherever any assumptions are made for answering a question, they must be clearly indicated.
  • Diagrams/Figures, wherever required, shall be drawn in the space provided for answering the question itself.
  • Unless otherwise mentioned, symbols and notations have their usual standard meanings.
  • Attempts of questions shall be counted in sequential order.
  • Unless struck off, attempt of a question shall be counted even if attempted partly.
  • Any page or portion of the page left blank in the Question-cum-Answer Booklet must be clearly struck off.
  • Answers must be written in ENGLISH only.

Questions (page 2)

Section A

Q1.

(a) For the circuit shown in the figure below, derive the expression for output voltage and sketch the nature of the output when V2 = 10 V and V1 = 5 V.

(b) A continuous LTIV system S with frequency response H(jOmega) is constructed by cascading two continuous-time LTIV systems with frequency response H1(jOmega) and H2(jOmega), respectively. Figures a and b show the straight-line approximations of Bode magnitude plots of H1(jOmega) and H(jOmega), respectively. Find H2(jOmega).

(c) Consider a three-phase induction motor with the following parameters :
Number of poles : 4
Supply frequency : 50\ \mathrmHz
Full load speed : 1470 rpm
Rotor resistance : 0.12 \ \Omega
Standstill reactance : 1.12 \ \Omega
Find the
(i) Slip for maximum torque
(ii) Ratio of maximum torque to full load torque.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

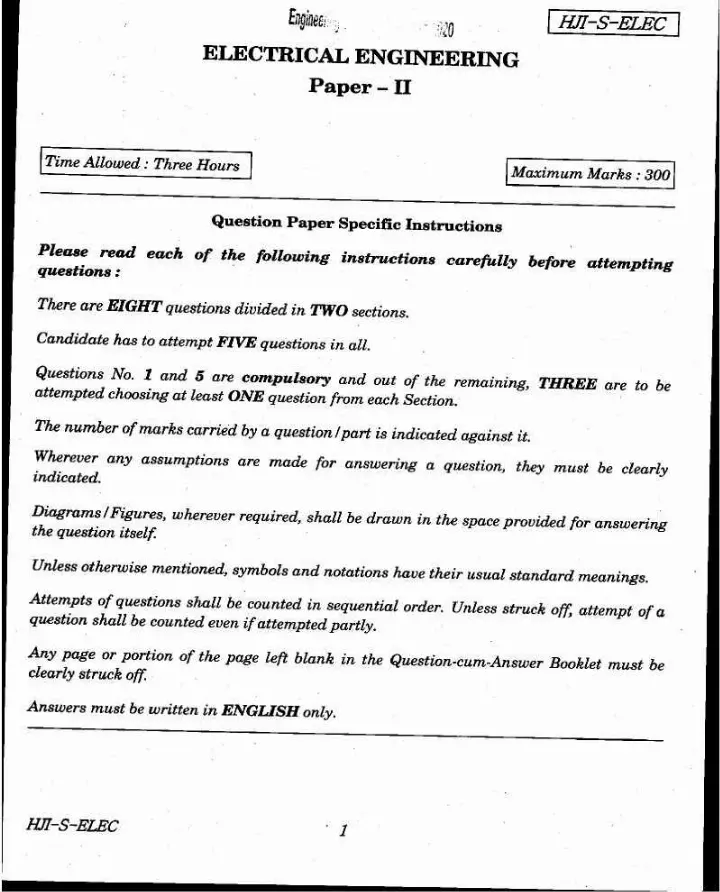

Page 1
UPSC Engineering Services Main 2020 Electrical Engineering Paper II question paper page 1 instructions scan PDF download

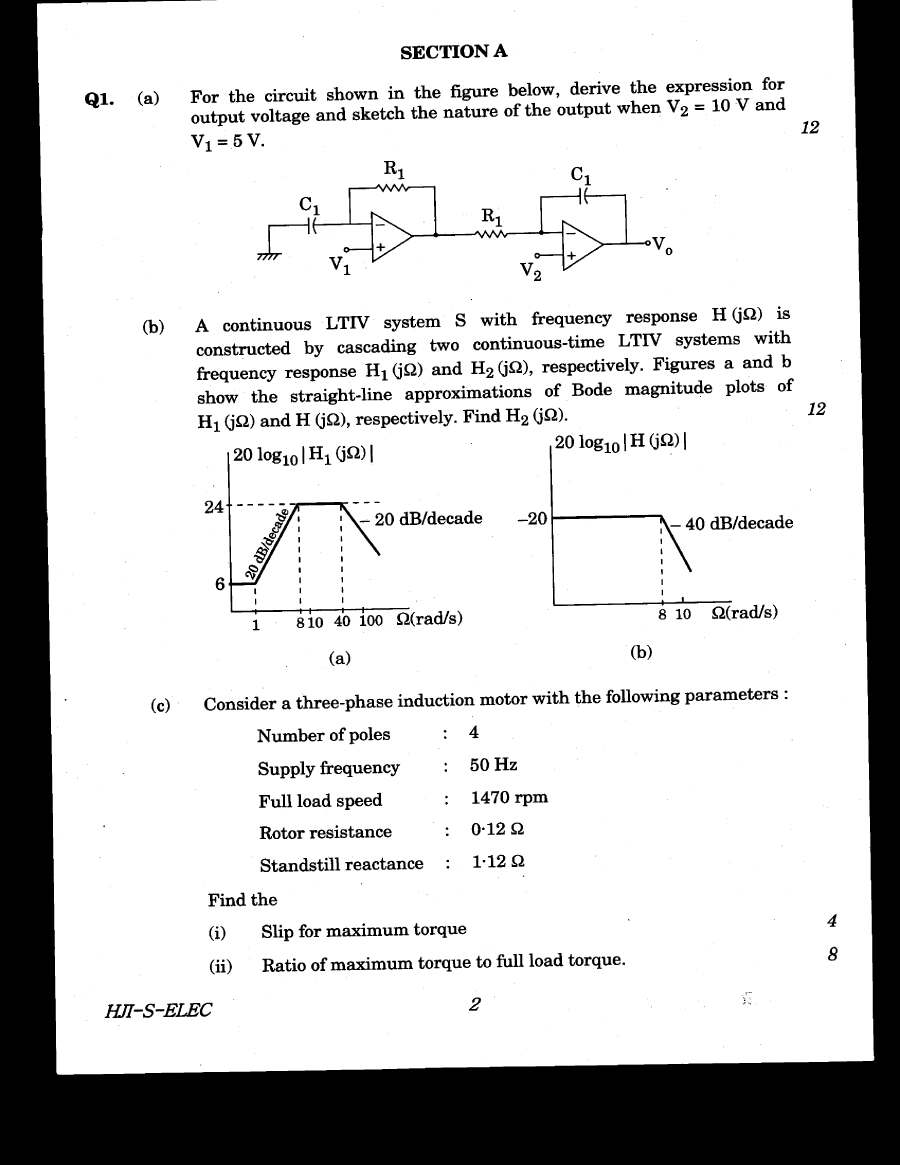

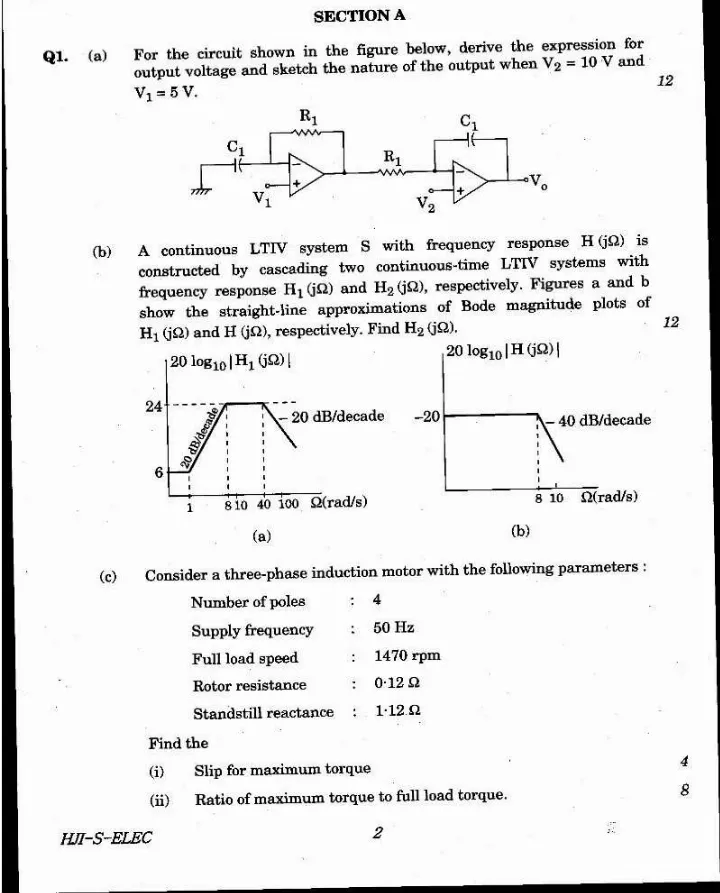

Page 2
UPSC Engineering Services Main 2020 Electrical Engineering Paper II question paper page 1 instructions scan PDF download

Free question paper download

Download question paper PDF

  • 374 KB
  • 12 pages
  • PDF format
