UPSC Engineering Services 2020 Civil Engineering Paper-I PDF

Central Government Jobs Engineer 2020

  • Year 2020
  • Conducted By UPSC
  • Questions 8
  • Maximum Marks 300
  • Duration Three Hours
  • Languages English

Exam Details

Detail Information
Examination Engineering Service (Main) Examination
Year 2020
Conducting Body UPSC
Paper CIVIL ENGINEERING Paper-I
Subject Civil Engineering
Duration Three Hours
Maximum Marks 300
Number of Questions 8
Question Type Mixed

This is the question paper for the Engineering Service (Main) Examination 2020, specifically for Civil Engineering Paper-I, conducted by UPSC. The paper is designed to test the in-depth knowledge of Civil Engineering concepts. It consists of 8 questions divided into two sections, with a total maximum mark of 300 and a time limit of three hours. Candidates must attempt five questions, including compulsory questions 1 and 5, and at least one from each section. This paper is crucial for aspirants aiming to qualify for engineering positions in government services, providing a clear understanding of the examination's scope and difficulty.

Major Topics Covered

  • Aggregates
  • Bulking of Sand
  • Workability of Concrete
  • Compacting Factor Test
  • Steel Bar
  • Axial Stiffness
  • Modulus of Elasticity
  • Composite Structures
  • Harmonic Load
  • Natural Frequency
  • Cable Structures
  • Uniformly Distributed Load (UDL)
  • Maximum Tension
  • Horizontal Pull

Why This Paper is Important

  • Useful for Engineering Service (Main) Examination preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • UPSC Engineering Services (Main) Examination 2020 Civil Engineering Paper-II
  • UPSC Engineering Services (Main) Examination 2019 Civil Engineering Paper-I
  • SSC JE Civil Engineering Previous Year Papers
  • UPSC Engineering Services (Main) Examination 2020 Civil Engineering Paper-I Answer Key
  • ESE 2020 Civil Engineering Paper-I Solutions
  • UPSC Engineering Services Civil Engineering Syllabus
  • ESE 2020 Civil Engineering Syllabus
  • UPSC Engineering Services Exam Pattern

Instructions

  • There are EIGHT questions divided in TWO sections.
  • Candidate has to attempt FIVE questions in all.
  • Questions No. 1 and 5 are compulsory and out of the remaining, any THREE are to be attempted choosing at least ONE question from each section.
  • The number of marks carried by a question / part is indicated against it.
  • Wherever any assumptions are made for answering a question, they must be clearly indicated.
  • Diagrams/Figures, wherever required, shall be drawn in the space provided for answering the question itself.
  • Unless otherwise mentioned, symbols and notations have their usual standard meanings.
  • Attempts of questions shall be counted in sequential order.
  • Unless struck off, attempt of a question shall be counted even if attempted partly.
  • Any page or portion of the page left blank in the Question-cum-Answer Booklet must be clearly struck off.
  • Answers must be written in ENGLISH only.

Questions (page 2)

Section A

Q1.

(a) How are aggregates classified based on particle size? What is bulking of sand?

(i) How are aggregates classified based on particle size? What is bulking of sand?

(ii) How is workability of concrete defined as per Indian Standard Specification IS 1199 - 1959 ? Briefly explain the method of measurement of workability through compacting factor test.

(b) A semi-composite steel bar as shown in Figure 1 is loaded at free end with an axial load of 50 kN. Determine the axial stiffness of the system and extension of the free end. Diameter of steel bar is 40 mm, outer diameter of the concrete portion is 200 mm. Modulus of elasticity of steel = 200 GPa, Modulus of elasticity of concrete = 20 GPa. Central portion of the bar is embedded with concrete.

(c) A machine is mounted at the centre of a simple supported beam that can exert a harmonic load F(t) = 20 sin (0.12 t) kN in vertical direction. The length of beam is 4 m and its cross-section is uniform throughout. Cross-section of beam: width 20 mm and depth 40 mm. A weight W = 200 N is suspended from the centre of the beam by a spring of spring constant Ks = 40 N/m. Determine the natural frequency of the weight W. Neglect mass of the beam and weight of machine. E = 2 × 105 MPa.

(d) A cable of uniform cross-section hangs between two points A and B, which are 150 m apart. The end 'A' of the cable is 3 m above the other end of the cable. The sag of the cable measured from 'B' is 2 m. If the cable carries a UDL of 12 kN/m, determine the maximum tension in the cable. Also find the horizontal pull.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

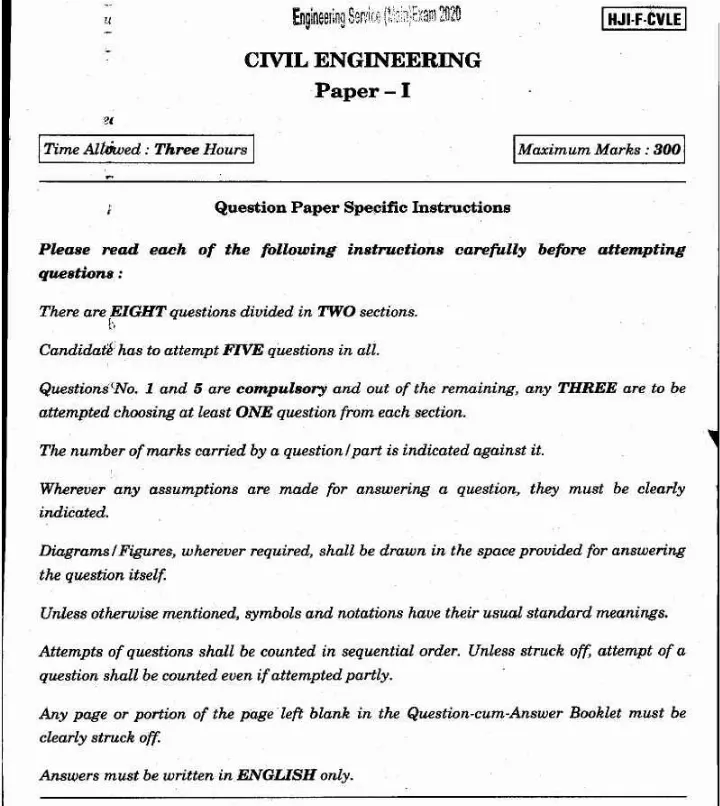

Page 1
UPSC Engineering Services Main Exam 2020 Civil Engineering Paper-I question paper page 1 instructions scan PDF download
Page 2
UPSC Engineering Services Main Exam 2020 Civil Engineering Paper-I question paper page 1 instructions scan PDF download

Free question paper download

Download question paper PDF

  • 361 KB
  • 12 pages
  • PDF format
