CS (Main) Exam 2020 Civil Engineering Paper I PDF

Central Government Jobs Engineer 2020

  • Year 2020
  • Conducted By UPSC
  • Questions 8
  • Maximum Marks 250
  • Duration Three Hours
  • Languages Hindi & English

Exam Details

Detail Information
Examination CS (Main) Exam
Year 2020
Conducting Body UPSC
Paper Civil Engineering Paper - I
Subject Civil Engineering
Duration Three Hours
Maximum Marks 250
Number of Questions 8
Question Type Mixed

This is the official question paper for the Civil Engineering Paper I of the CS (Main) Exam held in 2020 by UPSC. The paper is divided into two sections with a total of eight questions, and candidates are required to answer five questions in all. Questions 1 and 5 are compulsory, and at least one question must be attempted from each section. The exam allows three hours to complete and carries a maximum of 250 marks. This paper is crucial for aspirants preparing for the Civil Services Main Examination, specifically for the Civil Engineering optional subject.

Major Topics Covered

  • Civil Engineering
  • Structural Analysis
  • Reinforced Cement Concrete (RCC)
  • Limit State Design

Why This Paper is Important

  • Useful for CS (Main) Exam preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • CS (Main) Exam 2021 Civil Engineering Paper I
  • CS (Main) Exam 2019 Civil Engineering Paper I
  • Civil Engineering Paper II CS (Main) Exam 2020
  • CS (Main) Exam 2020 Civil Engineering Paper I Answer Key
  • CS (Main) Exam Civil Engineering Syllabus
  • CS (Main) Exam Pattern
  • IES Exam
  • GATE Civil Engineering

Instructions

  • पुस्तिका के मुख-पृष्ठ पर निर्दिष्ट स्थान पर किया जाना चाहिए ।
  • प्राधिकृत माध्यम के अतिरिक्त अन्य किसी माध्यम में लिखे गए उत्तर पर कोई अंक नहीं मिलेंगे ।
  • प्रश्न का उत्तर देने के लिए यदि कोई पूर्वधारणाएँ बनाई गई हों, तो उन्हें स्पष्ट रूप से निर्दिष्ट कीजिए ।
  • जहाँ आवश्यक हो, आरेखों व चित्राकृतियों को, प्रश्न का उत्तर देने के लिए दिए गए स्थान में ही बनाइए ।
  • जब तक उल्लिखित न हो, संकेत तथा शब्दावली प्रचलित मानक अर्थों में प्रयुक्त हैं ।
  • प्रश्नों के उत्तरों की गणना क्रमानुसार की जाएगी ।
  • यदि काटा नहीं हो, तो प्रश्न के उत्तर की गणना की जाएगी चाहे वह उत्तर अंशतः दिया गया हो ।
  • प्रश्न-सह-उत्तर पुस्तिका में खाली छोड़ा हुआ पृष्ठ या उसके अंश को स्पष्ट रूप से काटा जाना चाहिए ।

  • There are EIGHT questions divided in TWO SECTIONS and printed both in HINDI and in ENGLISH.
  • Candidate has to attempt FIVE questions in all.
  • Questions no. 1 and 5 are compulsory and out of the remaining, any THREE are to be attempted choosing at least ONE question from each section.
  • The number of marks carried by a question / part is indicated against it.
  • Answers must be written in the medium authorized in the Admission Certificate which must be stated clearly on the cover of this Question-cum-Answer (QCA) Booklet in the space provided.
  • No marks will be given for answers written in a medium other than the authorized one.
  • Wherever any assumptions are made for answering a question, they must be clearly indicated.
  • Diagrams/Figures, wherever required, shall be drawn in the space provided for answering the question itself.
  • Unless otherwise mentioned, symbols and notations carry their usual standard meanings.
  • Attempts of questions shall be counted in sequential order.
  • Unless struck off, attempt of a question shall be counted even if attempted partly.
  • Any page or portion of the page left blank in the Question-cum-Answer Booklet must be clearly struck off.

Questions (page 2)

Section A

Q1.

(a) एक प्रास (कैन्टीलीवर) धरन ऊर्ध्वाधर तल में एक वृत्त के एक-चौथाई भाग के रूप में है जैसा कि नीचे चित्र में दिखाया गया है और इसके मुक्त सिरे पर ऊर्ध्वाधर भार P लगा है । मुक्त सिरे पर ऊर्ध्वाधर और क्षैतिज विस्थापन ज्ञात कीजिए, यदि आनमनी दृढ़ता प्रास (कैन्टीलीवर) धरन की पूरी लम्बाई में समान है।
A cantilever beam is in the form of a quarter of a circle in vertical plane and is subjected to a vertical load P at its free end as shown in the figure below. Find the vertical and horizontal displacements at the free end, if flexural rigidity is same throughout the length of cantilever.

(b) प्रबलित सीमेंट कंक्रीट (आर.सी.सी.) संरचनाओं की सीमांत अवस्था अभिकल्पना के लिए कोड की अनुशंसाओं के अनुसार आनमन में कंक्रीट, मृदु इस्पात एवं एच.वाई.एस.डी. (HYSD) इस्पात के लिए अभिलक्षणिक प्रतिबल-विकृति वक्र सभी प्रासंगिक मानों को दर्शाते हुए बनाइए ।
Draw characteristic stress-strain curve for concrete, mild steel and HYSD steel in flexure giving all relevant values as per codal recommendations for limit state design of RCC structures.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

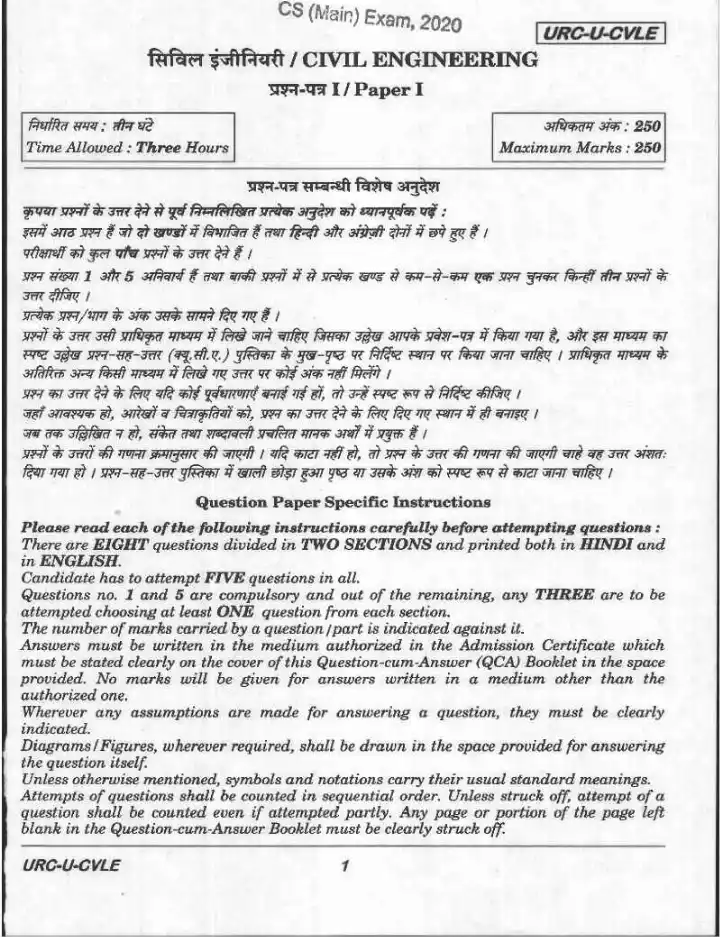

Page 1
CS (Main) Exam 2020 Civil Engineering Paper I question paper page 1 instructions scan PDF download UPSC

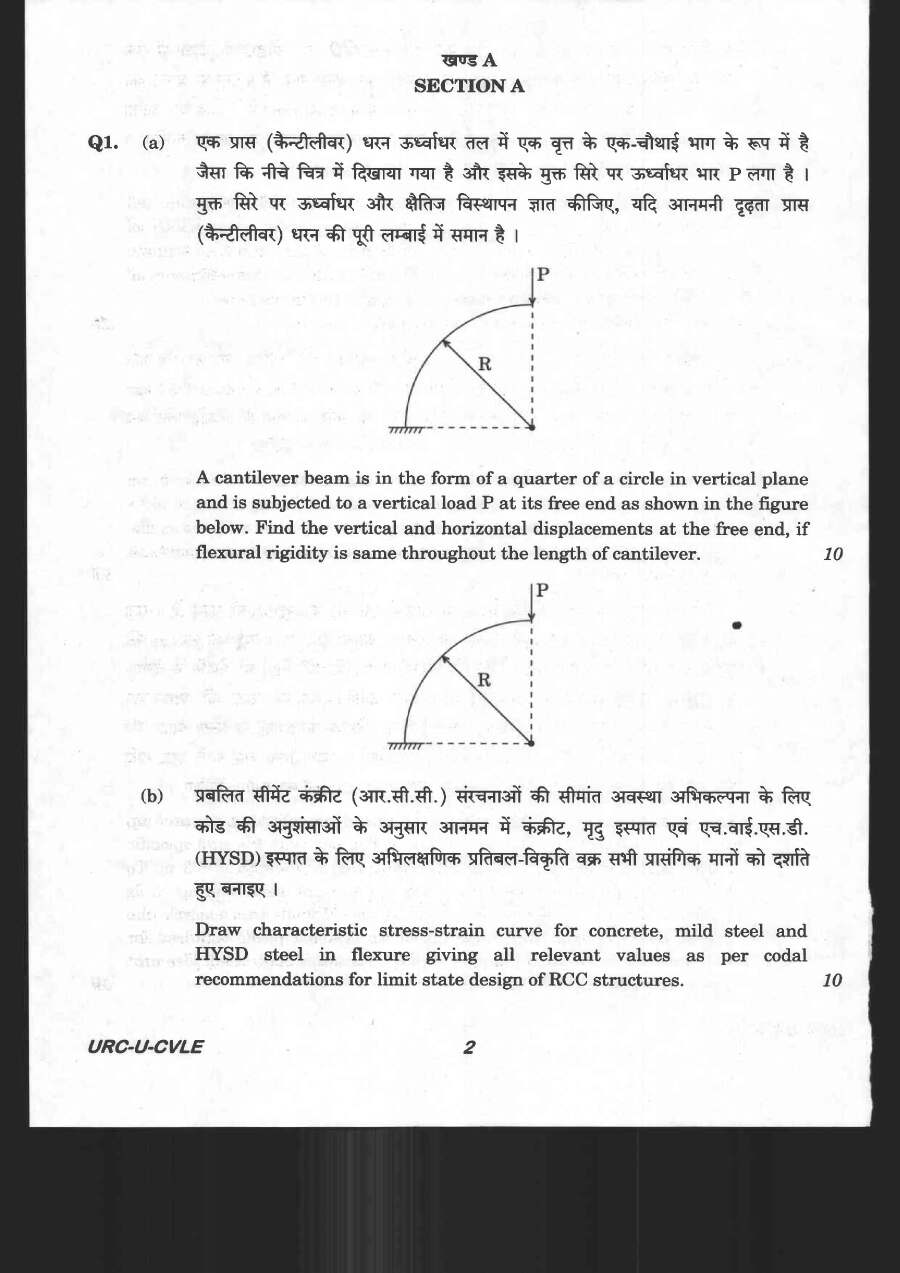

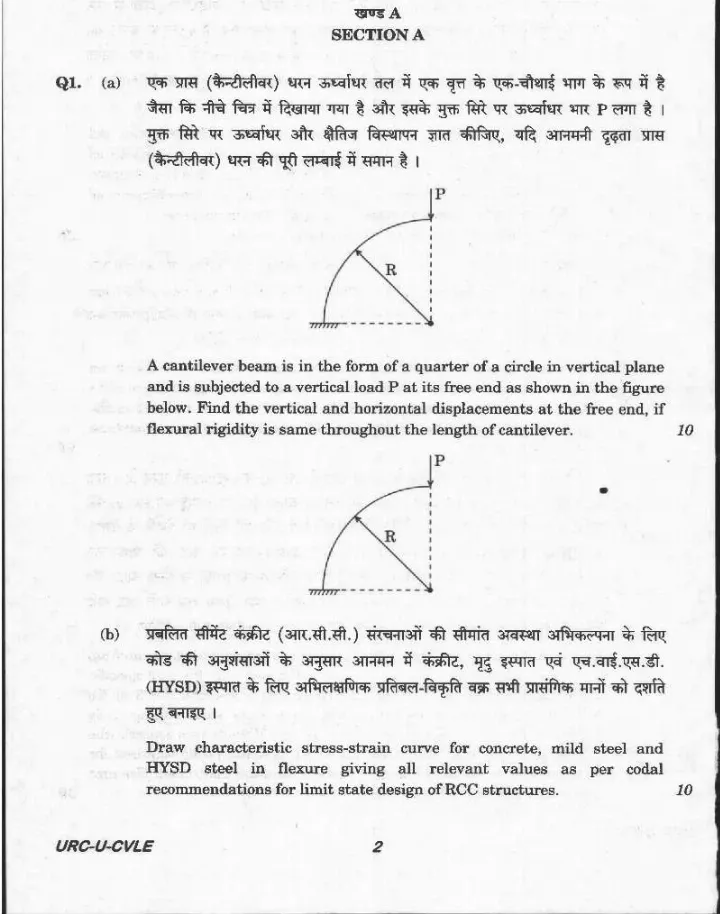

Page 2
CS (Main) Exam 2020 Civil Engineering Paper I question paper page 1 instructions scan PDF download UPSC

Free question paper download

Download question paper PDF

  • 1.7 MB
  • 20 pages
  • PDF format
