RPSC Lecturer Electrical Engineering Paper 2 Question Paper 2020 PDF

Rajasthan Government Jobs Lecturer 2020

  • Year 2020
  • Conducted By RPSC
  • Languages Hindi & English

Exam Details

Detail Information
Examination Lecturer (Tech. Edu.) Exam 2020
Year 2020
Conducting Body RPSC
Paper Electrical Engineering Paper - 2
Subject Electrical Engineering
Question Type Objective (MCQ)

This is the official question paper for the Lecturer (Technical Education) Examination 2020, specifically Paper 2 for Electrical Engineering, conducted by RPSC. The paper consists of objective-type questions designed to assess candidates' knowledge in Electrical Engineering. This paper is crucial for aspirants preparing for Rajasthan Government Jobs, particularly for the Lecturer position. Understanding the exam pattern, question types, and difficulty level from this paper can significantly aid in focused preparation. The exam aims to recruit qualified individuals for technical education roles within the state.

Major Topics Covered

  • Analog Data Acquisition
  • A/D Converters
  • FET and MOSFET
  • BJT
  • Microwave Telemetry
  • Repeaters
  • Clipper Circuits
  • Zener Diodes
  • Voltage Regulators
  • Voltmeters
  • Electrical Engineering

Why This Paper is Important

  • Useful for Lecturer (Tech. Edu.) Exam preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • RPSC Lecturer Electrical Engineering Paper 1 2020
  • RPSC Lecturer Computer Science Paper 2 2020
  • RPSC AE Electrical Engineering Previous Year Paper
  • RPSC Lecturer Electrical Engineering Paper 2 Answer Key 2020
  • RPSC Lecturer Electrical Engineering Syllabus
  • RPSC Lecturer Exam Pattern
  • RPSC Assistant Engineer Exam
  • SSC Junior Engineer Exam

Instructions

  • सभी प्रश्नों के अंक समान हैं । Only one answer is to be given for each question.
  • प्रत्येक प्रश्न का केवल एक ही उत्तर दीजिए If more than one answers are marked, it would be treated as।
  • एक से अधिक उत्तर देने की दशा में प्रश्न के उत्तर को मलत माना जाएगा । wrong answer. Each question has four alternative responses marked serially.
  • प्रत्येक प्रश्न के चार वैकल्पिक उत्तर दिये गये हैं, जिन्हें क्रमश: 1, 2, 3,
  • You have to darken only one circle or bubble 4 अंकित किया गया है ।
  • अभ्यर्थी को सही उत्तर निर्दिष्ट करते हुए उनमें indicating the correct answer on the Answer Sheet using BLUE से केवल एक गोले अथवा बबल को उत्तर-पत्रक पर नीले बॉल BALL POINT PEN. प्वाइंट पेन से गहरा करना है। The OMR Answer Sheet is inside this Test Booklet. When OMR उत्तर-पत्रक इस परीक्षा पुस्तिका के अन्दर रखा है ।
  • परीक्षा पुस्तिका खोलने को कहा जाए, तो उत्तर-पत्रक निकाल कर Answer Sheet and fill in the particulars carefully with blue ध्यान से केवल नीले बॉल पॉइंट पेन से विवरण भरें । ball point pen only.
  • फ्रान्येक गलत उत्तर के लिए प्रश्न अंक का 1/3 भाग काटा जायेगा ।
  • गलत deducted for each wrong answer. A wrong answer means उत्तर से तात्पर्य अशुद्ध उत्तर अथवा किसी भी प्रश्न के एक से अधिक an incorrect answer or more than one answers for any उत्तर से है ।
  • किसी भी प्रश्न से संबंधित गोले या बबल को खाली छोड़ना question. Leaving all the relevant circles or bubbles of any गलत उत्तर नहीं माना जायेगा । question blank will not be considered as wrong answer.
  • मोबाइल फोन अथवा इलेक्ट्रोनिक यंत्र का परीक्षा हॉल में प्रयोग पूर्णतया Mobile Phone or any other electronic gadget in the वर्जित है ।
  • यदि किसी अभ्यर्थी के पास ऐसी कोई वर्जित सामग्री
  • examination hall is strictly prohibited. A candidate found मिलती है तो उसके विरुद्ध आयोग द्वारा नियमानुसार कार्यवाही की with any of such objectionable material with him/her will be जायेगी । strictly dealt as per rules.
  • कृपया अपना रोल नम्बर ओ.एम.आर. पत्रक पर सावधानीपूर्वक सही
  • Please correctly fill your Roll Number in O.M.R. Sheet. भरें ।
  • गलत अथवा अपूर्ण रोल नम्बर भरने पर 5 अंक कुल प्राप्तांकों में 5 Marks can be deducted for filling wrong or incomplete Roll से काटे जा सकते हैं । Number. Warning: If a candidate is found copying or if any unauthorized चेतावनी : अगर कोई अभ्यर्थी नकल करते पकड़ा जाता है या उसके पास material is found in his/her possession, F.I.R. would be lodged से कोई अनधिकृत सामग्री पाई जाती है, तो उस अभ्यर्थी के विरुद्ध पुलिस में against him/her in the Police Station and he/she would liable to be प्राथमिकी दर्ज कराते हुए विविध नियमों-प्रावधानों के तहत कार्यवाही की prosecuted. Department may also debar him/her permanently जाएगी ।
  • साथ ही विभाग ऐसे अभ्यर्थी को भविष्य में होने वाली विभाग की from all future examinations. समस्त परीक्षाओं से विवर्जित कर सकता है ।
  • इस परीक्षा पुस्तिका को तब तक न खोलें जब तक कहा न जाएँ । Do not open this Test Booklet until you are asked to do so. 08 - 1 \mathcal{N}

  • you are directed to open the Test Booklet, take out the
  • 1/3 part of the mark(s) of each question will be

Questions (page 2)

Q1. In an analog data acquisition unit, what is correct sequence of the blocks starting from the input ?

  • (1) Transducer - Recorder - Signal conditioner
  • (2) Transducer - Signal conditioner - Recorder
  • (3) Signal conditioner - Transducer - Recorder
  • (4) Signal conditioner - Recorder - Transducer

Q2. A 12 bit A/D converter has a range 0 - 10 V. What is the approximate resolution of the converter ?

  • (1) 1 mV
  • (2) 2.4 mV
  • (3) 2.4 \muV
  • (4) 24 mV

Q3. In modern electric multi-meter, an FET or MOSFET is preferred over BJT because

  • (1) Its input resistance is low.
  • (2) Its input resistance is high.
  • (3) Its input resistance is high and does not vary with the change of range.
  • (4) It is cheaper.

Q4. In microwave telemetry, repeater stations are required at every

  • (1) 2 km
  • (2) 5 km
  • (3) 40 km
  • (4) 100 km

Q5. A clipper

  • (1) removes part of the input signal
  • (2) increases DC value of the input signal
  • (3) reduces DC value of the input signal
  • (4) modifies shape of the input signal

Q6. A Zener diode is used in regulator because

  • (1) It is operated in breakdown region
  • (2) It has efficiency for heavy load currents
  • (3) It is always connected in parallel with load
  • (4) Voltage across it remains constant for large changes of current through it.

Q7. What is the series resistance required to extend the 0 – 100 V range of a 20000 \Omega/V meter to 0 – 1000 V ?

  • (1) 10 M\Omega
  • (2) 16 M\Omega
  • (3) 18 M\Omega
  • (4) 20 M\Omega

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

Page 1
RPSC Lecturer Electrical Engineering Paper 2 question paper page 1 instructions scan PDF download for RPSC Tech Edu Exam 2020

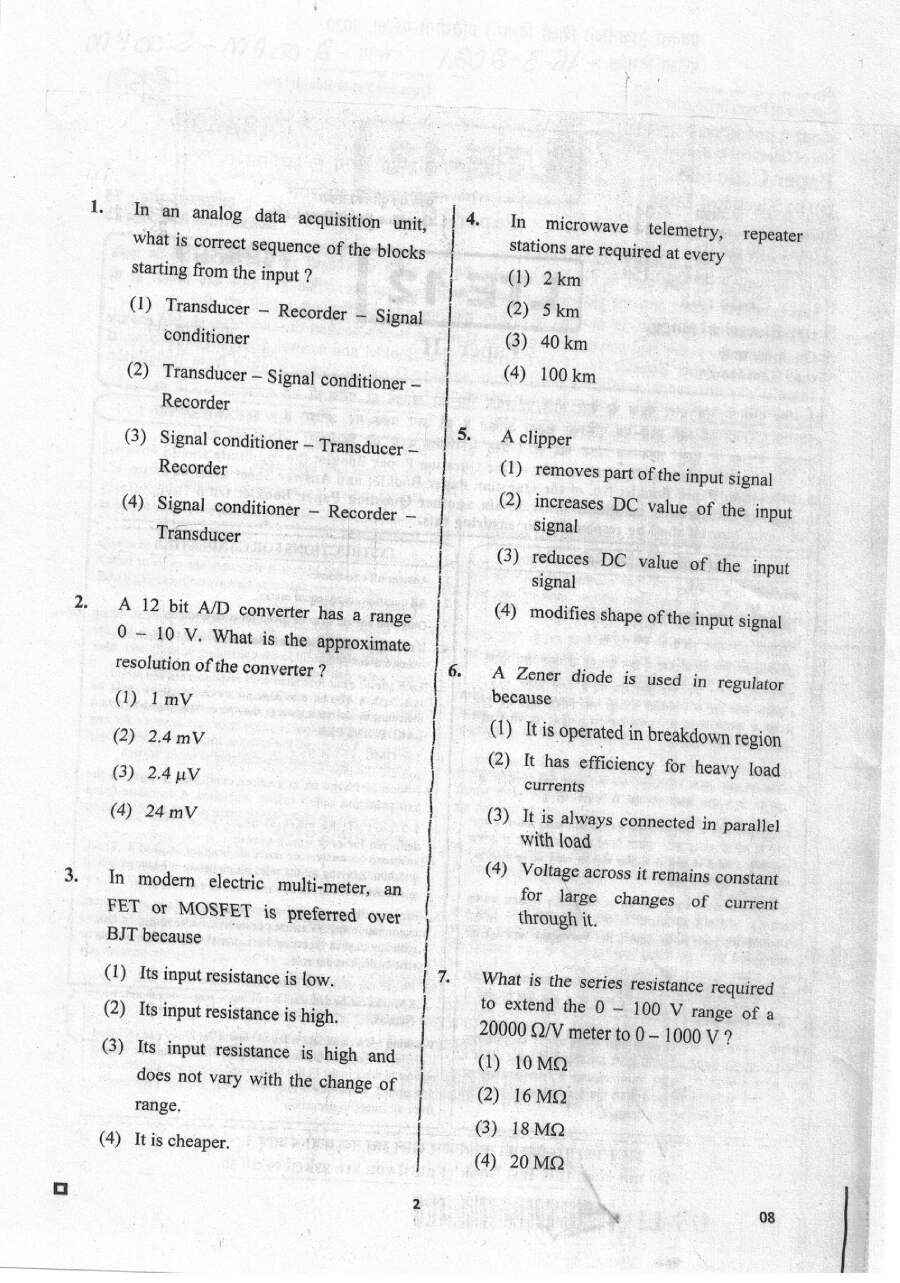

Page 2
RPSC Lecturer Electrical Engineering Paper 2 question paper page 1 instructions scan PDF download for RPSC Tech Edu Exam 2020

Free question paper download

Download question paper PDF

  • 21.1 MB
  • 24 pages
  • PDF format

Frequently asked questions

What is the name of the exam?

The exam is the Lecturer (Technical Education) Examination 2020.

Which paper is this question paper for?

This is for Electrical Engineering Paper - 2.

Who conducts the Lecturer (Tech. Edu.) Exam?

The exam is conducted by RPSC (Rajasthan Public Service Commission).

What is the year of this question paper?

The year is 2020.

What type of questions are included in this paper?

This paper consists of objective-type questions.

What is the language of the question paper?

The question paper is available in both Hindi and English.
