MPSC Civil Engineering Services Main Exam 2009 Paper I Previous Year Question Paper
- Year 2009
- Conducted By Maharashtra Public Service Commission (MPSC)
- Maximum Marks 200
- Duration 3 Hours
- Languages English
Exam Details
| Detail | Information |
|---|---|
| Examination | Civil Engineering Services Main Examination |
| Year | 2009 |
| Conducting Body | Maharashtra Public Service Commission (MPSC) |
| Paper | Civil Engineering - Paper I |
| Subject | Civil Engineering |
| Duration | 3 Hours |
| Maximum Marks | 200 |
| Question Type | Descriptive / Subjective |
This document contains the Civil Engineering Services Main Examination 2009 Paper I question paper, conducted by the Maharashtra Public Service Commission (MPSC). The paper, with a maximum of 200 marks and a time duration of 3 hours, covers various aspects of Civil Engineering. It includes descriptive questions requiring detailed answers and calculations. Key topics touched upon in the provided questions include statics, friction, work and energy, structural analysis, and material properties under thermal stress. The exam instructions emphasize solving one question from each section, the use of non-programmable calculators, and the prohibition of IS codes and Steel Table Codes. Candidates are also warned against revealing their identity in the answer book. The paper aims to assess the in-depth knowledge and problem-solving skills of candidates in Civil Engineering.
Major Topics Covered
- Civil Engineering
- Engineering Services Examination
- MPSC Exams
- Previous Year Question Papers
- 2009 Exam
- Paper I
- Statics
- Friction
- Work and Energy
- Structural Analysis
- Material Science
- Thermal Expansion
- Mechanics of Materials
- Engineering Mechanics
- Maharashtra Government Jobs
- Engineering Recruitment
- Competitive Exams
- Engineering Aptitude
- Problem Solving
- Engineering Calculations
Why This Paper is Important
- Useful for Civil Engineering Services Main Examinat preparation
- Helps understand the latest exam pattern
- Useful for practice and self-assessment
- Covers frequently asked General Studies topics
- Helpful for analysing question trends
Related Resources
- Dy.Engg.(Mech) 2013 Deputy Engineer Mechanical Question Paper
- MPSC Deputy Engineer 2013 General Aptitude Question Paper with Solutions
- MPSC Assistant Motor Vehicle Inspector Mechanical Engineering 2005 Paper
- MPSC Engineering Services 2012 Paper-I Civil Engineering Previous Year Question Paper
- MPSC Engineering Services Main Exam 2012 Paper II Civil Engineering Question Paper
Instructions
- Civil Mah. Engineening Services Main Examination - 2009 ASP 2009 106277 CIVIL ENGINEERING (Paper I) Time allowed : 3 Hours } | Maximum Marks: 200
- Note: (i) Solve one question from each section.
Questions (page 2)
Q1. What should be the value of 'θ' of the inclined plane shown in Figure 1, which will make the motion of 900 N block down the plane to impend ? The coefficient of friction for all contact surfaces is 1/3.
Q2. A man wishes to move a wooden box of 1 m cube to a distance of 5 m with the least amount of work. If the block weighs 1 kN and the coefficient of friction is 0.3, determine whether he should tip the box or slide it.
Q3.

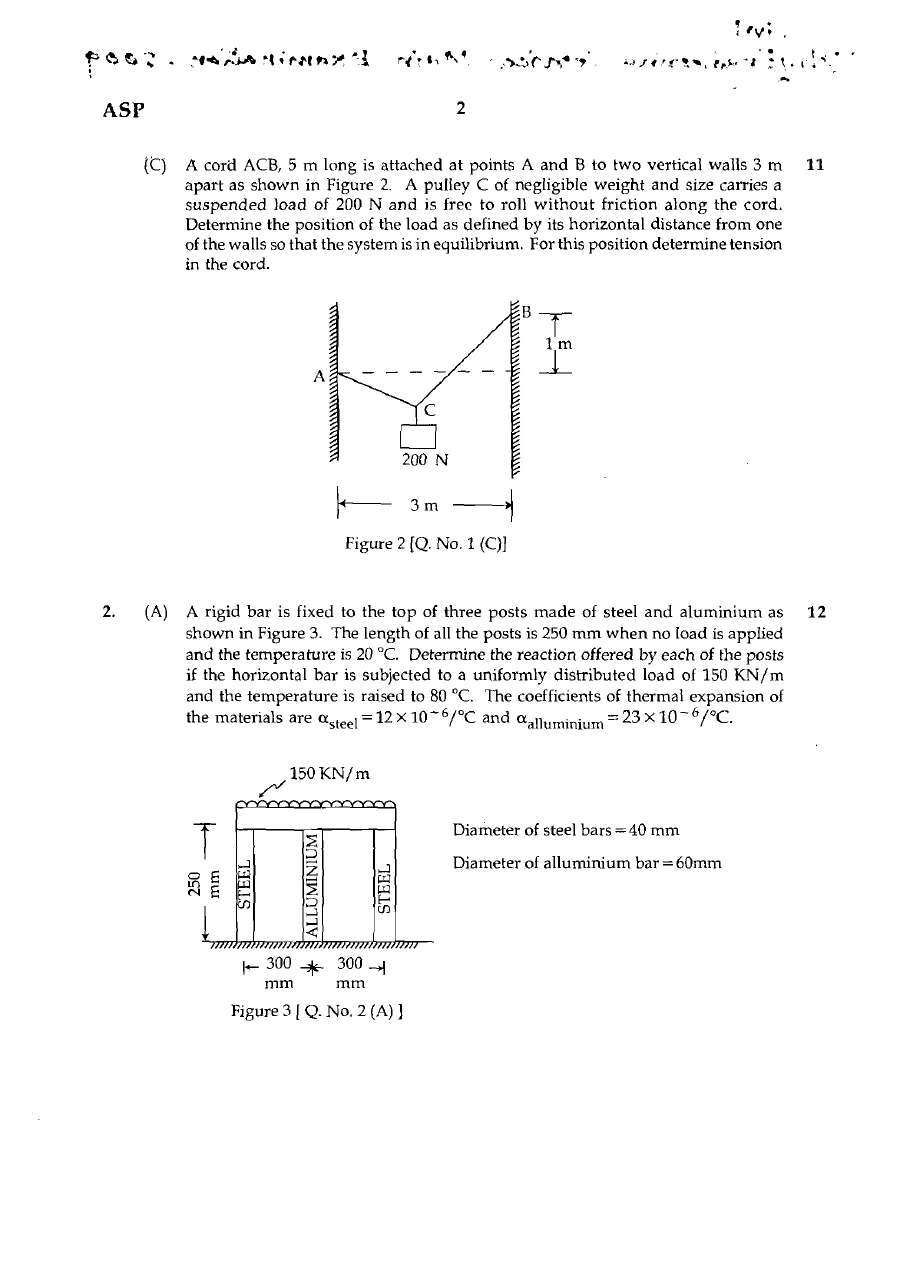

A cord ACB, 5 m long is attached at points A and B to two vertical walls 3 m apart as shown in Figure
2. A pulley C of negligible weight and size carries a suspended load of 200 N and is free to roll without friction along the cord. Determine the position of the load as defined by its horizontal distance from one of the walls so that the system is in equilibrium. For this position determine tension in the cord.
1m A C 200 N 3m Figure 2 [Q. No. 1
(C) ]
Q4.
A rigid bar is fixed to the top of three posts made of steel and aluminium as shown in Figure 3. The length of all the posts is 250 mm when no load is applied and the temperature is 20°C. Determine the reaction offered by each of the posts if the horizontal bar is subjected to a uniformly distributed load of 150 KN/m and the temperature is raised to 80 °C. The coefficients of thermal expansion of the materials are α_{\textsteel} = 12 × 10-6 / \text°C and α_{\textalluminjum} = 23 × 10-6 / \text°C.
150 KN/m nnnnnnnnnn Diameter of steel bars = 40 mm Diameter of alluminium bar = 60mm Ē STEEL 250 mm mm Figure 3 [ Q. No. 2 (A) ]
Question paper preview
Scanned pages 1–2 for reference. Download the official PDF for the full paper.
Free question paper download
Download question paper PDF
Your download starts in 10s
Preparing your question paper file…
Frequently asked questions
What is the exam name and year?
The exam is the Civil Engineering Services Main Examination held in 2009.
Which paper is this question paper for?
This is Paper I of the Civil Engineering subject.
What is the maximum marks and time allowed for this paper?
The maximum marks are 200, and the time allowed is 3 hours.
Who conducts the Civil Engineering Services Main Examination?
The Maharashtra Public Service Commission (MPSC) conducts this examination.
What are the instructions regarding solving questions?
Candidates must solve one question from each section. If more than one question is attempted in a section, the excess will be ignored.
Are calculators permitted?
Yes, use of log-tables and non-programmable calculators is permitted.
