What is the question type for Mechanical Engineering Paper-II?

The question type is subjective.

In which language are the answers to be written?

Answers must be written in ENGLISH only.

How many sections are there in the paper?

The question paper contains a total of 2 Sections: Section-A and Section-B.

How many questions are there in each section?

There are FOUR questions in each section.

Which questions are compulsory?

Question No. 1 of Section 'A' and Question No. 5 of Section 'B' are compulsory.

How many additional questions must candidates attempt?

Candidates have to attempt another THREE questions choosing at least ONE question from each section.

What is the advertisement number for this examination?

The advertisement number is 05/2019.

JPSC AE Mechanical Engineering Paper II Subjective 2019 Question Paper PDF

Name: JPSC AE Mechanical Engineering Paper II Subjective 2019 Question Paper PDF
Creator: JPSC
Keywords: JPSC AE Mechanical Engineering Paper II, JPSC Assistant Engineer Mains, Mechanical Engineering Subjective Paper, JPSC 2019 AE Exam, Combined Assistant Engineer Question Paper, JPSC AE Previous Year Paper, Mechanical Engineering Mains Exam, JPSC Paper II, Subjective Mechanical Engineering, AE Recruitment, JPSC Engineering Jobs, Mechanical Engineering Theory, JPSC Mains Syllabus, Assistant Engineer Mechanical, JPSC AE 2019

Jharkhand Government Jobs Engineer

Conducted By JPSC
Maximum Marks 200
Duration 3 Hours
Languages English

Exam Details

Detail	Information
Examination	COMBINED ASSISTANT ENGINEER (MAIN EXAMINATION)
Conducting Body	JPSC
Paper	MECHANICAL ENGINEERING PAPER-II SUBJECTIVE
Subject	MECHANICAL ENGINEERING
Duration	3 Hours
Maximum Marks	200
Question Type	Descriptive / Subjective

This is the Mechanical Engineering Paper II (Subjective) for the JPSC Combined Assistant Engineer Main Examination, advertised under Advt. No. 05/2019. Conducted by JPSC, this paper is designed to assess candidates' in-depth knowledge in Mechanical Engineering. It is a subjective paper with a duration of 3 hours and a maximum of 200 marks. The paper is divided into two sections, with compulsory questions and a requirement to attempt a minimum number of questions from each section. Aspirants can use this previous year's question paper to understand the exam pattern, question types, and difficulty level, aiding their preparation for the JPSC AE Mains.

Major Topics Covered

Clutch
Helical Gears
Flywheel
Hollow Shaft
Steel Rod Loading
Journal Bearing
Rivet Arrangement
Spur Gear

Why This Paper is Important

Useful for COMBINED ASSISTANT ENGINEER (MAIN EXAMIN preparation
Helps understand the latest exam pattern
Useful for practice and self-assessment
Covers frequently asked General Studies topics
Helpful for analysing question trends

Related Resources

JPSC AE Mechanical Engineering Paper I Subjective 2019
JPSC AE Mechanical Engineering Paper I Objective 2019
JPSC AE Civil Engineering Paper II Subjective 2019
JPSC AE Electrical Engineering Paper II Subjective 2019
JPSC AE Mechanical Engineering Paper II Answer Key 2019
JPSC AE Mechanical Engineering Syllabus
JPSC AE Mains Syllabus
JPSC AE Exam Pattern

Instructions

Answers must be written in ENGLISH only. \Omega The question paper contains a total of 8 questions in TWO Sections : Section-A (2) and Section-B.
(FOUR questions in each section) Question No. 1 of Section 'A' and Question No. 5 of Section 'B' are compulsory.
(3) Candidates have to attempt another THREE questions from remaining SIX (4) questions choosing atleast ONE question from each section.
Assume suitable data if found necessary.

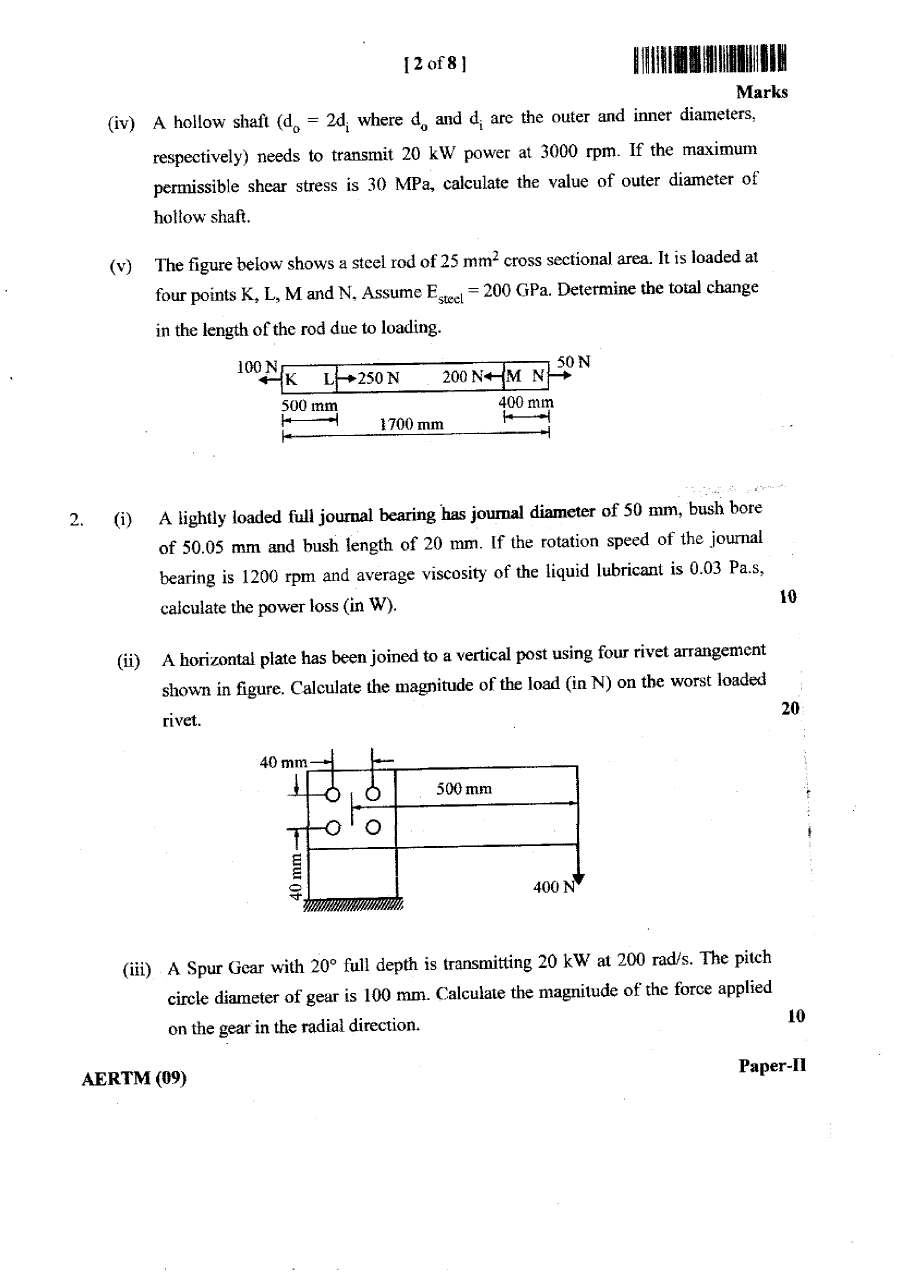

Questions (page 2)

Q1.

(iv) A hollow shaft (d₀ = 2d_i where d₀ and d_i are the outer and inner diameters, respectively) needs to transmit 20 kW power at 3000 rpm. If the maximum permissible shear stress is 30 MPa, calculate the value of outer diameter of hollow shaft.

(v) The figure below shows a steel rod of 25 mm² cross sectional area. It is loaded at four points K, L, M and N. Assume E_{\textsteel} = 200 \text GPa. Determine the total change in the length of the rod due to loading.

Q2.

(i) A lightly loaded full journal bearing has journal diameter of 50 mm, bush bore of 50.05 mm and bush length of 20 mm. If the rotation speed of the journal bearing is 1200 rpm and average viscosity of the liquid lubricant is 0.03 Pa.s, calculate the power loss (in W).

(ii) A horizontal plate has been joined to a vertical post using four rivet arrangement shown in figure. Calculate the magnitude of the load (in N) on the worst loaded rivet.

(iii) A Spur Gear with 20° full depth is transmitting 20 kW at 200 rad/s. The pitch circle diameter of gear is 100 mm. Calculate the magnitude of the force applied on the gear in the radial direction.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

JPSC AE Mechanical Engineering Paper II Subjective 2019 question paper page 1 instructions scan PDF download — Page 1

Free question paper download

Download question paper PDF

185 KB
7 pages
PDF format

Frequently asked questions

What is the full name of the exam?

The full name of the exam is COMBINED ASSISTANT ENGINEER (MAIN EXAMINATION).

Which conducting body organizes this exam?

The exam is conducted by JPSC.

What is the subject of this paper?

The subject is MECHANICAL ENGINEERING.

What is the paper code?

The paper code is 09.

What is the duration of the exam paper?

The time allowed for this paper is 3 Hours.

What is the maximum marks for this paper?

The maximum marks for this paper is 200.
