| Detail | Information |
|---|---|
| Examination | Combined Assistant Engineer (Main Examination) |
| Conducting Body | JPSC |
| Paper | Civil Engineering Paper-II |
| Subject | Civil Engineering |
| Duration | 3 Hours |
| Maximum Marks | 200 |
| Number of Questions | 8 |
| Question Type | Descriptive / Subjective |
This document contains the Civil Engineering Paper-II (Subjective) for the JPSC Combined Assistant Engineer Main Examination, advertised under Advt. No. 05/2019. The paper is designed to assess candidates' in-depth knowledge of civil engineering principles through subjective questions. It allows 3 hours to complete and carries a maximum of 200 marks. The paper is divided into two sections, A and B, with compulsory questions and a requirement to attempt a minimum number from each section. This paper is crucial for aspirants aiming to secure a position as an Assistant Engineer in Jharkhand.
(a) Design a regime channel for a discharge of 35 m3/s with silt factor of 0.9 by Lacy's theory, taking side slopes as 1H : 2V.
(b) The ordinates of a flood hydrograph, resulting from two successive storms each of 1 cm rainfall excess and 6 hour duration, are tabulated below. Find a 6-hour unit hydrograph. Assume base flow of 10 m3/s.
(a)
While aligning a highway in a built-up area, it was necessary to provide a horizontal circular curve of radius 300 metres. Design the following geometric features :
(Assume design speed 80 kmph, Pavement width 7m)
(i) Super elevation
(ii) Extra widening of pavement
(iii) Length of transition curve
(b) A turbine for the following site condition is to be designed. Head is 120 m, power produced = 5 × 120 MW. Numer of turbines 5, Head loss due to friction as 3% the gross head. Length of the penstock 1300 m. each. Overall efficiency 0.87. Number of pairs of poles 18, speed 166.7 rpm, breadth to diameter 0.3. Darcy Weishach f = 0.02. Determine the diameter of the penstock, runner and the type of turbine for speed ratio \phi of 0.75.
(a) From a BG main line curve of 2°, a 1 : 2 turn out takes off in contrary flexure for a branch line. The speed on the branch line is restricted to 42 km/h. Determine the speed restriction on the main line. Assume permissible deficiency in cant as 75 mm.
(b) At an energy dissipater structure below a low spillway, the discharge is 19 m3/s and the energy loss is 1 m at the hydraulic jump forming therein. Determine the depth of flow at both ends of the jump (Assume rectangular section).

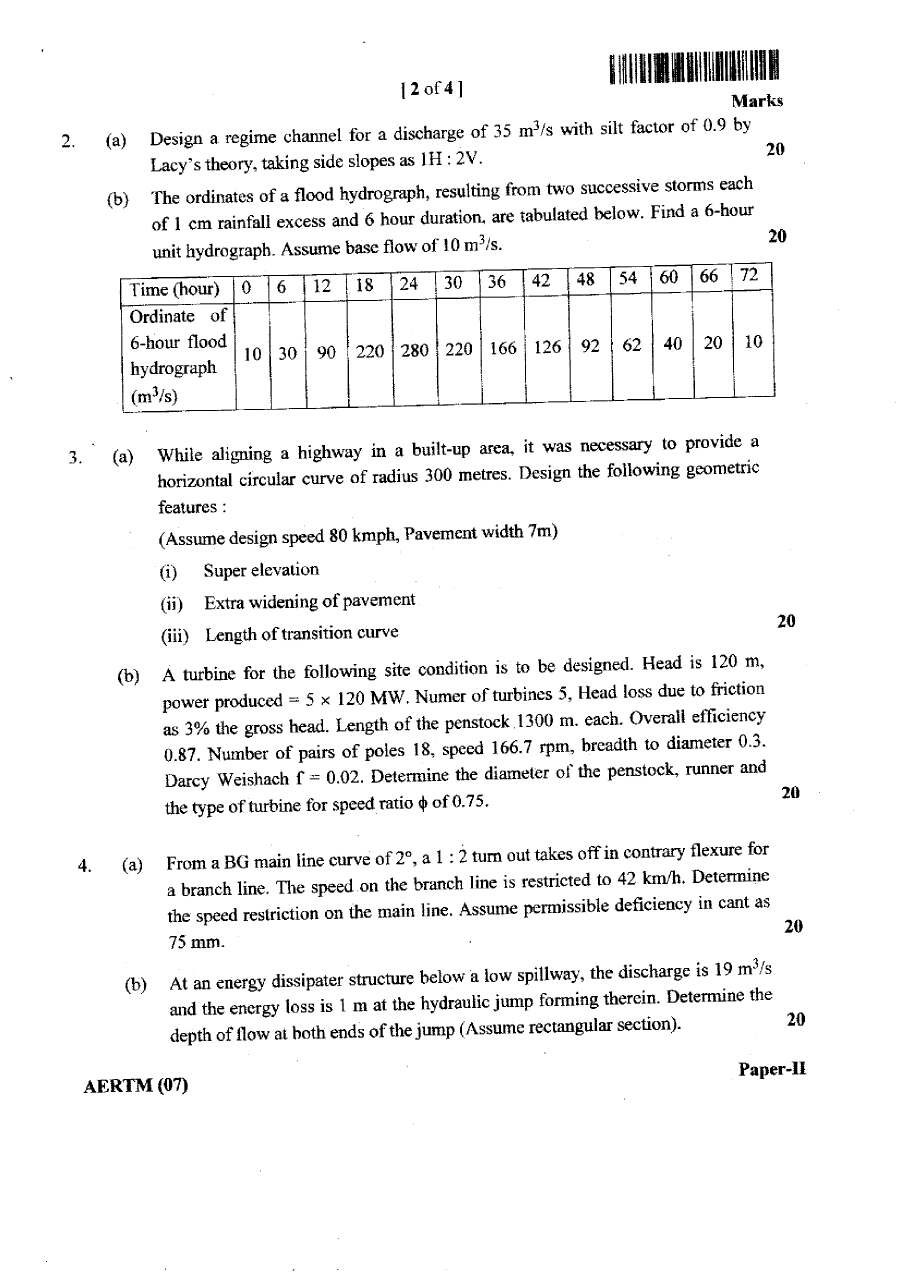

Scanned pages 1–2 for reference. Download the official PDF for the full paper.
Free question paper download
Your download starts in 10s
Preparing your question paper file…
The exam is the JPSC Combined Assistant Engineer (Main Examination).
This is for Civil Engineering Paper-II (Subjective).
The conducting body is JPSC (Jharkhand Public Service Commission).
The maximum marks for Civil Engineering Paper-II is 200.
The time allowed for this paper is 3 Hours.
The subject code is 07.
