Civil Engineering Paper - II

Central Government Jobs Engineer 2021

Year 2021
Questions 8
Maximum Marks 200
Duration Three Hours Maximum Marks: 200
Languages English

Exam Details

Detail	Information
Examination	Indian Forest Service (Main) Examination
Year	2021
Paper	Civil Engineering Paper - II
Subject	Civil Engineering
Duration	Three Hours Maximum Marks: 200
Maximum Marks	200
Number of Questions	8
Question Type	Objective (MCQ)

This document combines PAGE 1 and PAGE 2 OCR for Civil Engineering Paper II of the Indian Forest Service (Main) Examination, 2021. Page 1 provides the exam header, paper details, timing, total marks (200), and general instructions—eight questions in total with questions 1 and 5 compulsory, and a choice of five questions from two sections. Page 2 contains Section A with objective questions (MCQ). The repaired OCR reveals Q1 with five sub-parts focusing on cement oxide compositions, project costs, crane classifications, railway turnout design, and a tape-measurement length correction problem; Q2 addresses setting out a curve using Rankine’s method for a radius of 350 m. The metadata supports SEO with topics, keywords, and an FAQ-ready structure to enhance discoverability. Language for answers remains English as per paper instructions; LaTeX math snippets are preserved as in the original OCR.

Major Topics Covered

Civil Engineering
Surveying
Geodesy
Construction Planning
Measurement
Cement Chemistry
Project Management
Crane Classification
Railway Turnout Design
Tapes and Measurements
Curve Setting Out
Rankine Method
Surveying Instruments
Engineering Mathematics
Error Corrections
Building Materials
Soil Mechanics
Hydraulics
Structures
Engineering Economics

Why This Paper is Important

Useful for Indian Forest Service (Main) Examination preparation
Helps understand the latest exam pattern
Useful for practice and self-assessment
Covers frequently asked General Studies topics
Helpful for analysing question trends

Related Resources

Instructions

There are EIGHT questions in all, out of which FIVE are to be attempted.
Out of the remaining SIX questions, THREE are to be attempted selecting at least ONE question from each of the two Sections A and B.
Attempts of questions shall be counted in sequential order.
Unless struck off, attempt of a question shall be counted even if attempted partly.
Any page or portion of the page left blank in the Question-cum-Answer Booklet must be clearly struck off.
The number of marks carried by a question/part is indicated against it.
Unless otherwise mentioned, symbols and notations have their usual standard meanings.
Assume suitable data, if necessary and indicate the same clearly.
Neat sketches may be drawn, wherever required.
Answers must be written in ENGLISH only.

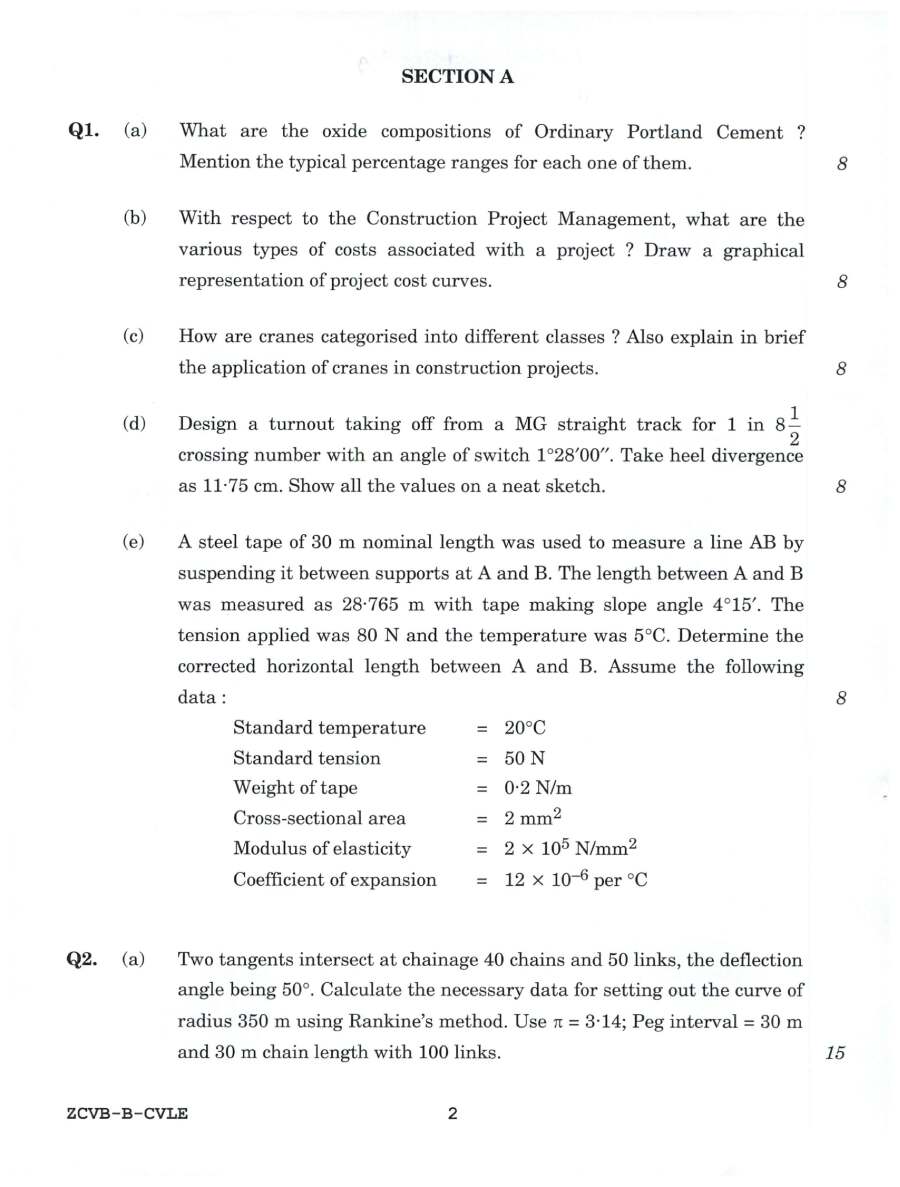

Questions (page 2)

Q1. Q1. What are the oxide compositions of Ordinary Portland Cement ?

(a) Mention the typical percentage ranges for each one of them.
(b) With respect to the Construction Project Management, what are the various types of costs associated with a project? Draw a graphical representation of project cost curves.
(c) How are cranes categorised into different classes ? Also explain in brief the application of cranes in construction projects.
(d) Design a turnout taking off from a MG straight track for 1 in 8½. Crossing number with an angle of switch 1°28'00". Take heel divergence as 11.75 cm. Show all the values on a neat sketch.
(e) A steel tape of 30 m nominal length was used to measure a line AB by suspending it between supports at A and B. The length between A and B was measured as 28.765 m with tape making slope angle 4°15'. The tension applied was 80 N and the temperature was 5°C. Determine the corrected horizontal length between A and B. Assume the following data: Standard temperature 20°C; Standard tension 50 N; Weight of tape 0.2 N/m; Cross-sectional area = 2 mm²; Modulus of elasticity = 12 × 10⁹ N/mm^2; Coefficient of expansion; Two tangents intersect at chainage 40 chains and 50 links, the deflection.

Q2. Q2. (a) angle being 50°. Calculate the necessary data for setting out the curve of radius 350 m using Rankine's method. Use π = 3.14; Peg interval = 30 m and 30 m chain length with 100 links.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

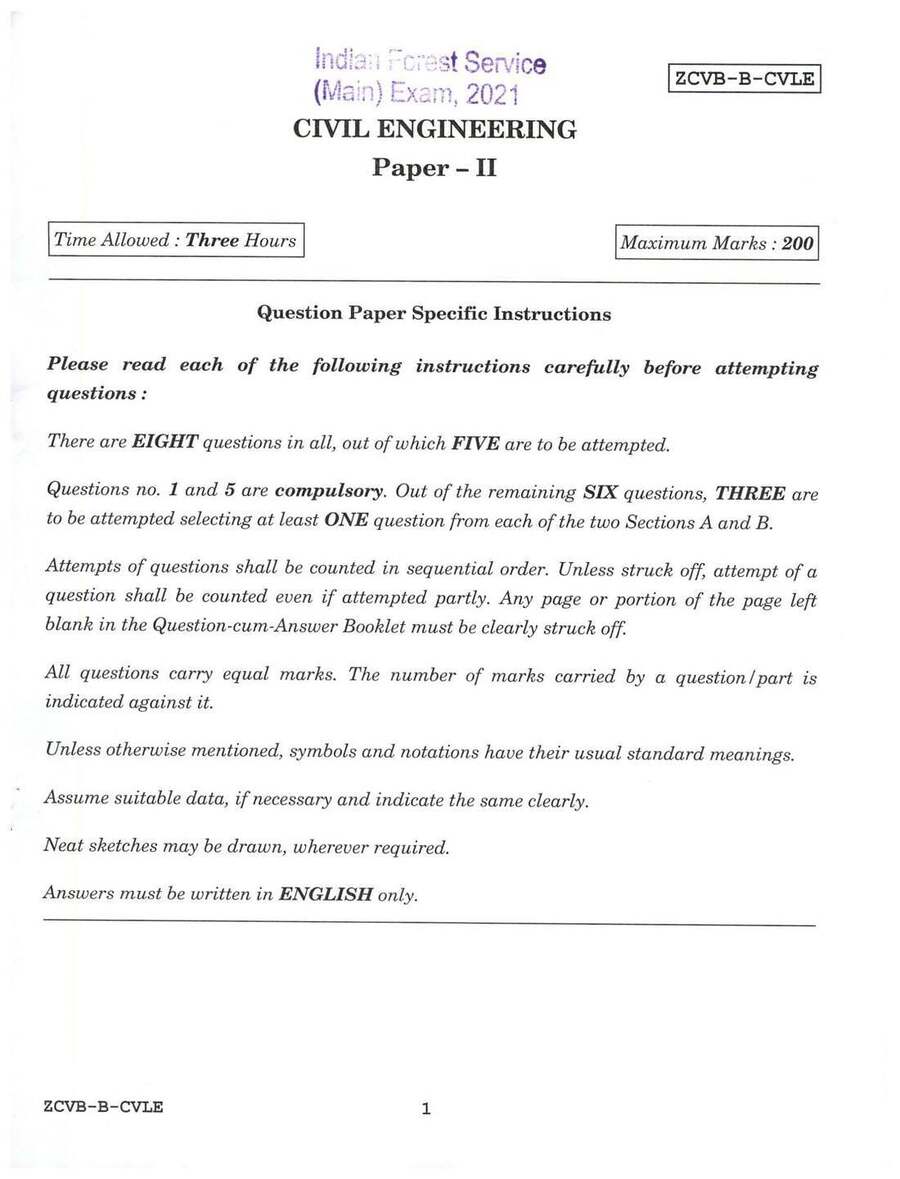

Indian Forest Service (Main) Examination 2021 Civil Engineering Paper - II question paper page 1 instructions scan PDF download — Page 1

Free question paper download

Download question paper PDF

2.9 MB
8 pages
PDF format

Frequently asked questions

What is the exam name and year?

Indian Forest Service (Main) Examination, Civil Engineering Paper II, 2021.

Which paper is this?

Civil Engineering Paper II of the Indian Forest Service (Main) Examination, 2021.

How many questions are there in total?

Eight questions in total.

How many questions must be attempted?

Five questions must be attempted.

Which questions are compulsory?

Questions 1 and 5 are compulsory.

What is the language requirement for answers?

Answers must be written in English.
