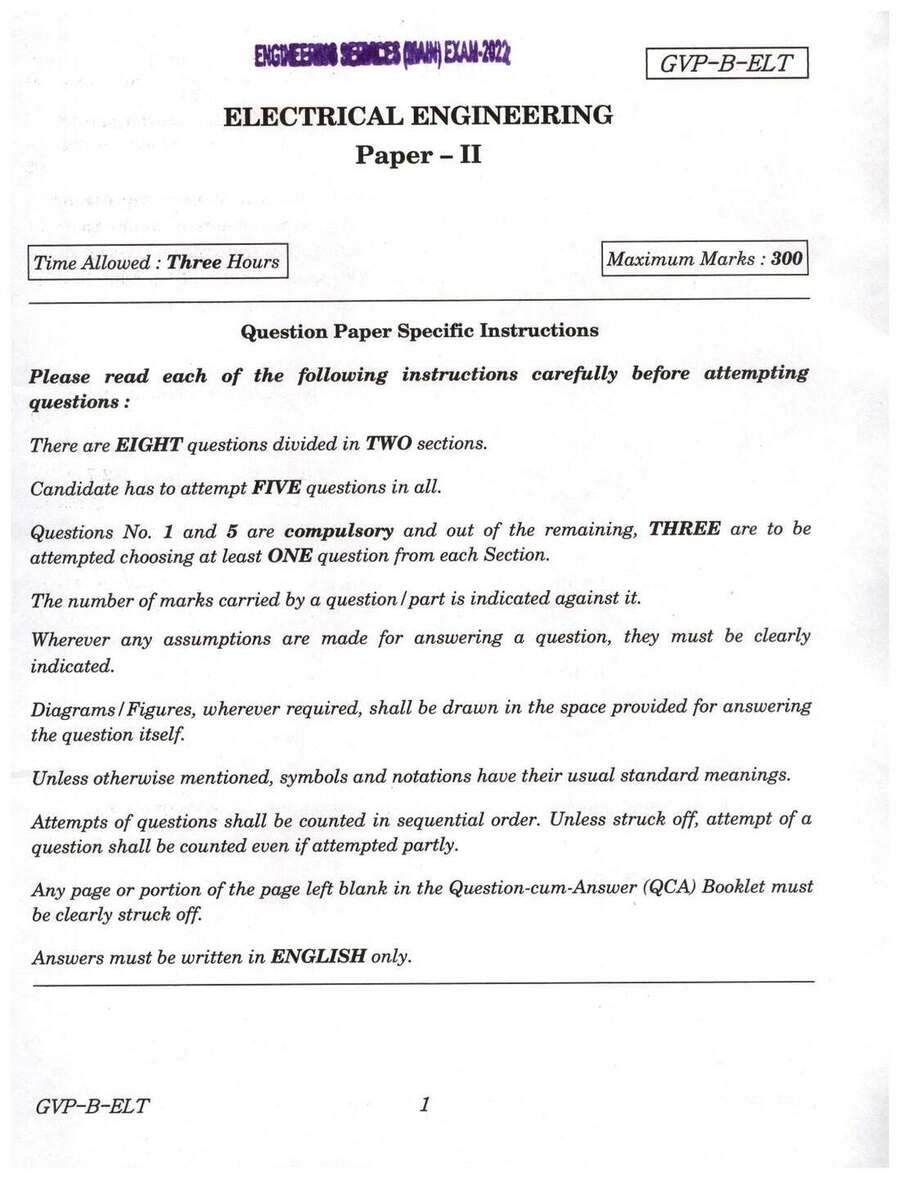

Instructions

There are EIGHT questions divided in TWO sections.
Candidate has to attempt FIVE questions in all.
Questions No. 1 and 5 are compulsory and out of the remaining, THREE are to be attempted choosing at least ONE question from each Section.
The number of marks carried by a question / part is indicated against it.
Wherever any assumptions are made for answering a question, they must be clearly indicated.
Diagrams/Figures, wherever required, shall be drawn in the space provided for answering the question itself.
Unless otherwise mentioned, symbols and notations have their usual standard meanings.
Attempts of questions shall be counted in sequential order.
Unless struck off, attempt of a question shall be counted even if attempted partly.
Any page or portion of the page left blank in the Question-cum-Answer (QCA) Booklet must be clearly struck off.
Answers must be written in ENGLISH only.

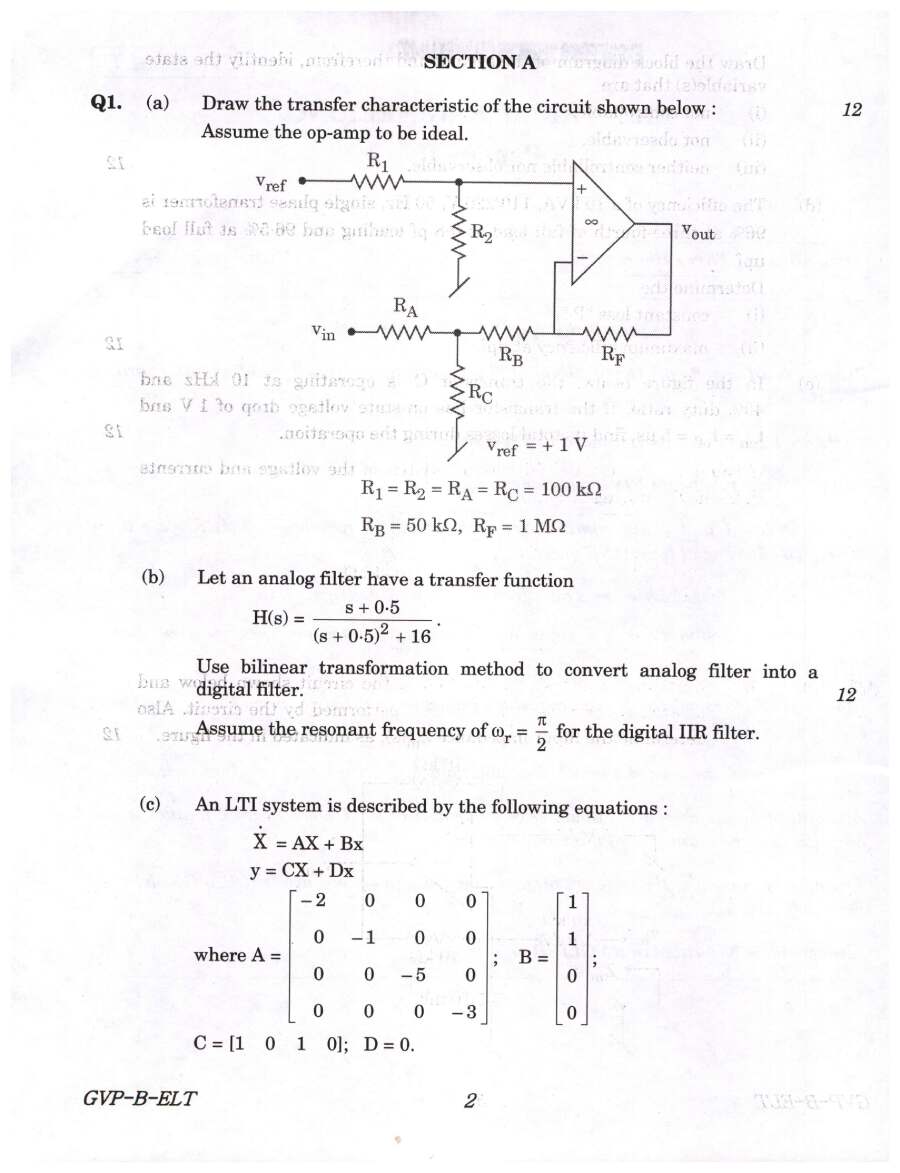

Questions (page 2)

Q1. Q1. (a) 12 Assume the op-amp to be ideal.

Q2. Q1. (b) Let an analog filter have a transfer function H(s) = (s + 0.5) / ((s + 0.5)^2 + 16). Use bilinear transformation method to convert analog filter into a digital filter.

Q3. Q1.
(c) An LTI system is described by the following equations: x' = A x + B u, y = C x + D u, where A = [ [-2, 0, 0, 0], [0, -1, 0, 0], [0, 0, -5, 0] ]; B = [not legible in OCR], C = [1 0 1 0], D = 0.
