IFS Civil Engineering Paper II 2022 (Main) – MCQ Preview

Central Government Jobs Engineer 2022

  • Year 2022
  • Questions 8
  • Maximum Marks 200
  • Duration Three Hours Maximum Marks: 200
  • Languages English

Exam Details

Detail Information
Examination Indian Forest Service (Main) Examination
Year 2022
Paper Civil Engineering Paper - II
Subject Civil Engineering
Duration Three Hours Maximum Marks: 200
Maximum Marks 200
Number of Questions 8

This JSON summarizes the Civil Engineering Paper II for the Indian Forest Service (Main) Examination 2022. The paper carries 200 marks across eight questions, with Q1 and Q5 compulsory and a requirement to answer five questions in total, selecting from Section A and Section B. Page 1 provides general exam details (time, marks, instructions in English) and page 2 ( repaired OCR ) presents Section A content and two multi-part questions with topics spanning deterioration of concrete, photogrammetry height estimation, and transportation engineering concepts such as traffic growth, vehicle damage factors, standard axles, and curve geometry. The extracted objective questions preview reflects the MCQ style with subparts (a), (b), etc., and includes mathematical notations for photogrammetry and cant deficiency.

Major Topics Covered

  • Civil Engineering
  • Structural Engineering
  • Concrete Deterioration
  • Photogrammetry
  • Surveying
  • Height from Photographs
  • Vertical Photography
  • Camera Geometry
  • PERT and CPM
  • Slack and Float
  • Time Estimation
  • Two-Lane Road Design
  • Traffic Engineering
  • Cant Deficiency
  • Super-Elevation
  • Curve Design
  • Axle Load Design
  • Road Design Economics
  • Construction Planning
  • Transportation Engineering

Why This Paper is Important

  • Useful for Indian Forest Service (Main) Examination preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

Instructions

  • There are EIGHT questions in all, out of which FIVE are to be attempted.
  • Out of the remaining SIX questions, THREE are to be attempted selecting at least ONE question from each of the two Sections A and B.
  • Attempts of questions shall be counted in sequential order.
  • Unless struck off, attempt of a question shall be counted even if attempted partly.
  • Any page or portion of the page left blank in the Question-cum-Answer Booklet must be clearly struck off.
  • The number of marks carried by a question/part is indicated against it.
  • Unless otherwise mentioned, symbols and notations have their usual standard meanings.
  • Assume suitable data, if necessary and indicate the same clearly.
  • Neat sketches may be drawn, wherever required.
  • Answers must be written in ENGLISH only.

Questions (page 2)

Q1. (a) Q1. marks How can deterioration of concrete be prevented?

(a) Q1. marks How can deterioration of concrete be prevented?

(b) Define slack of an event and float of an activity.

(c) A section line AB 310 m long on a flat terrain measures 102.5 mm on the vertical photograph. A radio tower also appears on the photograph. The distance measured from the principal point to the image of the bottom and top of the radio tower were found to be 7.5 cm and 8.5 cm respectively. The average elevation of terrain was 550 m. Determine the height of the tower. Take focal length (f) of the camera as 152.4 mm.

  • (a) Q1. marks How can deterioration of concrete be prevented?
  • (b) Define slack of an event and float of an activity.
  • (c) A section line AB 310 m long on a flat terrain measures 102.5 mm on the vertical photograph. A radio tower also appears on the photograph. The distance measured from the principal point to the image of the bottom and top of the radio tower were found to be 7.5 cm and 8.5 cm respectively. The average elevation of terrain was 550 m. Determine the height of the tower. Take focal length (f) of the camera as 152.4 mm.

Q2.

(a) Q2. marks A two-lane two-way road is at present carrying a traffic of 1200 commercial vehicles per day. It is to be strengthened for the growing traffic needs. The vehicle damage factor has been found to be 3. The rate of growth of traffic is 12% per annum. The period of construction is years. The pavement is to be designed for years after completion. Calculate the cumulative standard axles to be used in design.

(b) If an 8^\circ curve track diverges from a main curve of 5^\circ in an opposite direction in the layout of a B.G. yard, calculate the super-elevation and the speed on the branch line, if the maximum speed on the main line is 50 km/hr. Use Cant deficiency as 7.6 cm.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

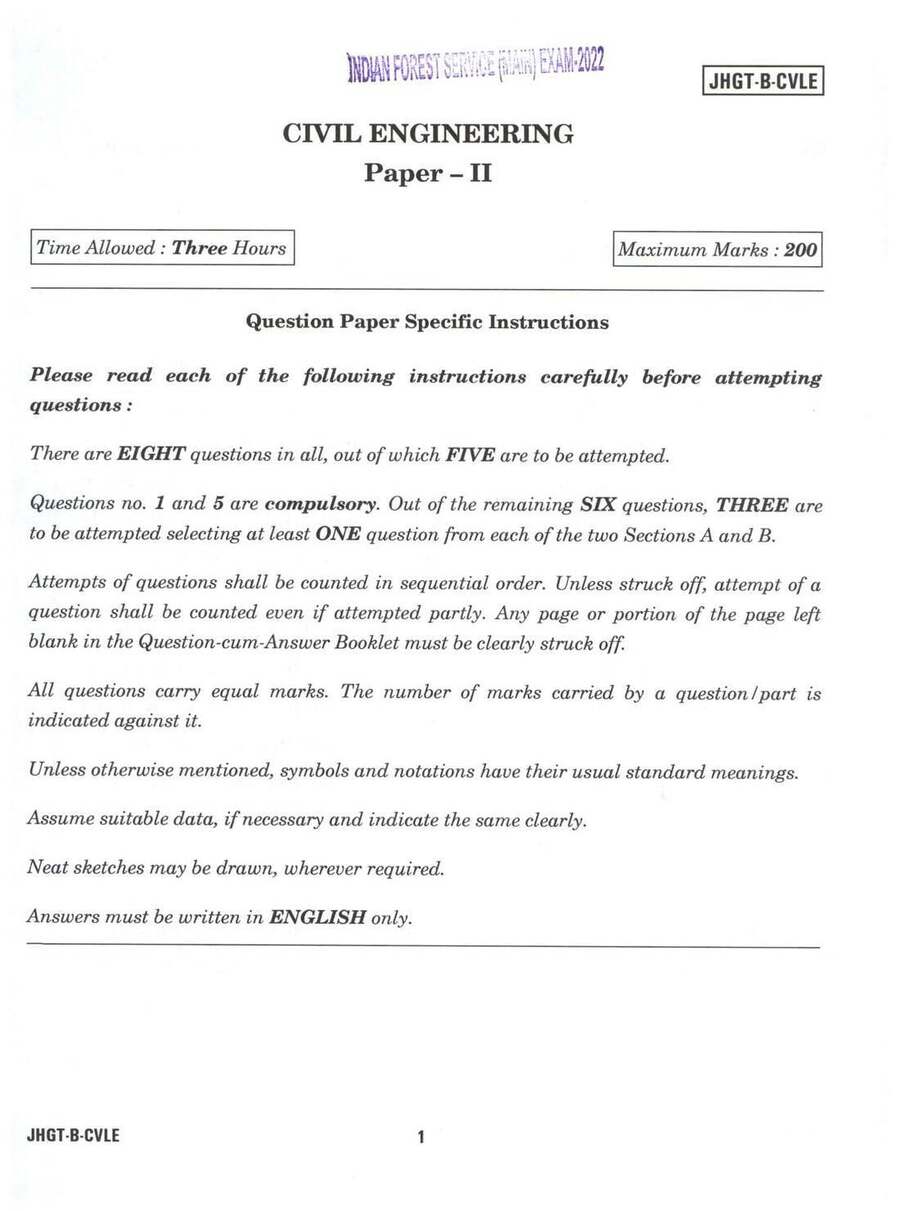

Page 1
IFS Civil Engineering Paper II 2022 (Main) – MCQ Preview — page 1 instructions scan PDF download
Page 2
IFS Civil Engineering Paper II 2022 (Main) – MCQ Preview — page 1 instructions scan PDF download

Free question paper download

Download question paper PDF

  • 3.1 MB
  • 8 pages
  • PDF format

Frequently asked questions

What exam is this?

Indian Forest Service (Main) Examination, Civil Engineering Paper II, 2022.

How many questions are there?

Eight questions in total.

Which questions are compulsory?

Questions 1 and 5 are compulsory.

How many questions must be attempted?

Five questions must be attempted in total.

In what language are answers written?

Answers must be written in English.

What is the time limit?

Three hours.
