Indian Forest Service 2022 Civil Engineering Paper-I Question Paper PDF

Central Government Jobs Engineer 2022

  • Year 2022
  • Conducted By UPSC
  • Questions 8
  • Maximum Marks 200
  • Duration Three Hours
  • Languages English

Exam Details

Detail Information
Examination Indian Forest Service (Main) Examination
Year 2022
Conducting Body UPSC
Paper Civil Engineering Paper-I
Subject Civil Engineering
Duration Three Hours
Maximum Marks 200
Number of Questions 8
Question Type Mixed

This document contains the Civil Engineering Paper-I for the Indian Forest Service (Main) Examination 2022, conducted by UPSC. The paper has a maximum of 200 marks and a duration of three hours. It comprises eight questions, of which five are to be attempted, with compulsory questions 1 and 5. Aspirants must select at least one question from each of the two sections (A and B) from the remaining six. The paper is designed to assess candidates' in-depth knowledge and application skills in Civil Engineering. This question paper is a valuable resource for aspirants preparing for the IFS Main examination, offering insights into the exam structure, question complexity, and key topics covered.

Major Topics Covered

  • Tension Test
  • Torsion Test
  • Modulus of Elasticity
  • Modulus of Rigidity
  • Poisson's Ratio
  • Bulk Modulus
  • Resultant of Forces
  • Truss Analysis
  • Virtual Work Principle
  • Unit Load Method
  • Deflection
  • Prestressing Concepts

Why This Paper is Important

  • Useful for Indian Forest Service (Main) Examination preparation
  • Helps understand the latest exam pattern
  • Useful for practice and self-assessment
  • Covers frequently asked General Studies topics
  • Helpful for analysing question trends

Related Resources

  • Indian Forest Service (Main) Examination 2021 Civil Engineering Paper-I
  • Indian Forest Service (Main) Examination 2022 Civil Engineering Paper-II
  • Engineering Services Examination 2022 Civil Engineering Paper-I
  • Indian Forest Service (Main) Examination 2022 Civil Engineering Paper-I Answer Key
  • Indian Forest Service Civil Engineering Syllabus
  • UPSC Main Exam Syllabus
  • Indian Forest Service Exam Pattern
  • UPSC Main Exam Pattern

Instructions

  • There are EIGHT questions in all, out of which FIVE are to be attempted.
  • Out of the remaining SIX questions, THREE are to be attempted selecting at least ONE question from each of the two Sections A and B.
  • The number of marks carried by a question/part is indicated against it.
  • Unless otherwise mentioned, symbols and notations have their usual standard meanings.
  • Assume suitable data, if necessary and indicate the same clearly.
  • Neat sketches may be drawn, wherever required.
  • Attempts of questions shall be counted in sequential order.
  • Unless struck off, attempt of a question shall be counted even if attempted partly.
  • Any page or portion of the page left blank in the Question-cum-Answer Booklet must be clearly struck off.
  • Answers must be written in ENGLISH only.

Questions (page 2)

Section A

Q1.

(a) In a tension test, a steel rod of gauge length 255 mm and diameter 32 mm was used. The rod during the test was stretched 0.108 mm under a pull of 65 kN. In a torsion test, the same rod was twisted 0.018 radian over a length of 255 mm at the torque of 500 × 103 N-mm. Determine the modulus of elasticity, modulus of rigidity, Poisson's ratio and bulk modulus.

(b) The tension in cable BC is 750 N. Determine the resultant of the three forces exerted at point B of the beam AB :

(c) Determine the vertical movements of joint C of the truss shown in the figure below, if the member FG is lengthened by 55 mm. Use the principle of virtual work :

(d) Using the unit load method, determine the vertical and horizontal deflection of the free end of the frame as shown in the figure below. Support A is fixed, B is rigid joint and point C is free. BC = I and BA = 2I. Take E = 210 GPa and I = 300 × 10-6 m4 :

(e) With the help of neat sketches, explain the stress concept and load-balancing concept of prestressing.

Question paper preview

Scanned pages 1–2 for reference. Download the official PDF for the full paper.

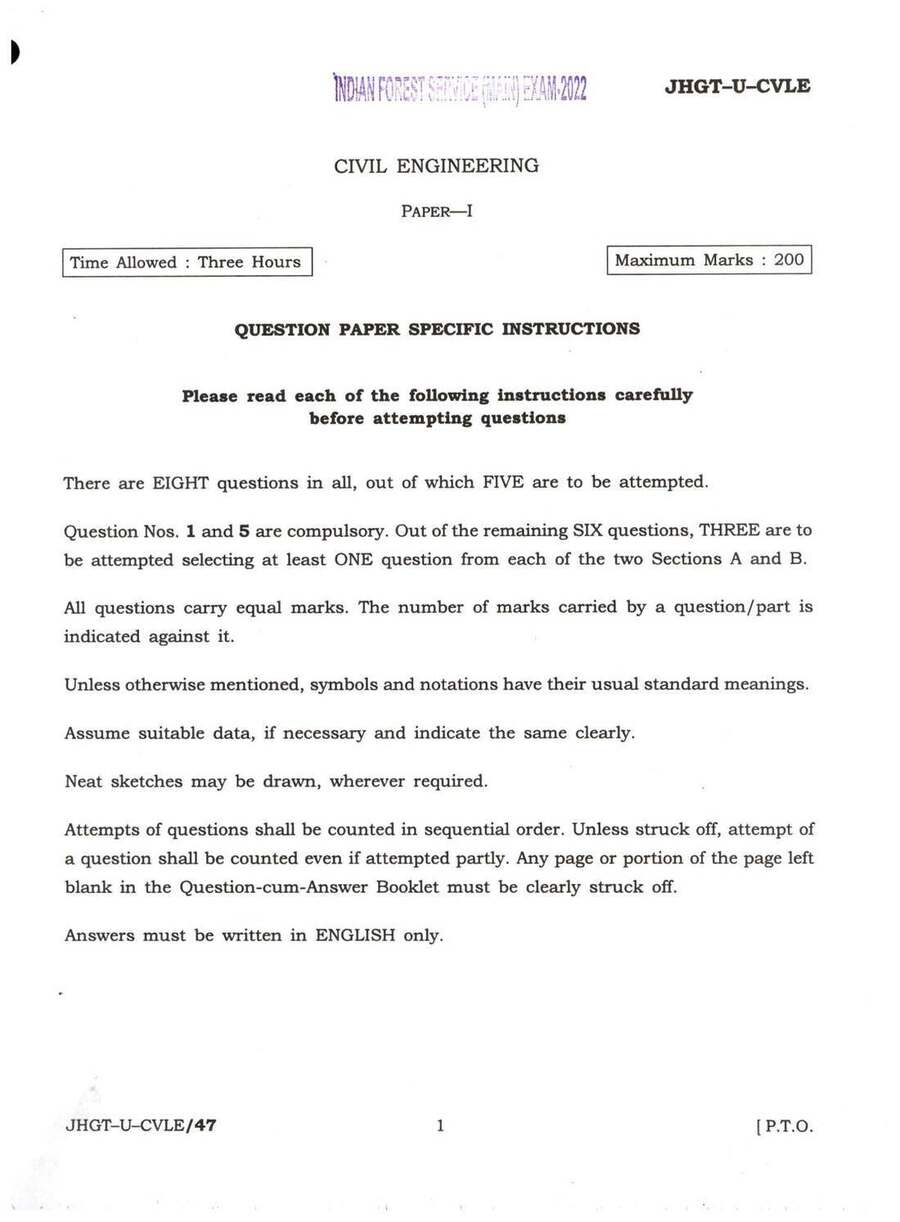

Page 1
Indian Forest Service 2022 Civil Engineering Paper-I question paper page 1 instructions scan PDF download UPSC
Page 2
Indian Forest Service 2022 Civil Engineering Paper-I question paper page 1 instructions scan PDF download UPSC

Free question paper download

Download question paper PDF

  • 3.7 MB
  • 12 pages
  • PDF format

Frequently asked questions

What is the name of the exam?

The exam is the Indian Forest Service (Main) Examination.

What is the year of this question paper?

This question paper is from the year 2022.

Which paper is this?

This is the Civil Engineering Paper-I.

Who conducts the Indian Forest Service Examination?

The Indian Forest Service Examination is conducted by UPSC (Union Public Service Commission).

What is the maximum marks for Civil Engineering Paper-I?

The maximum marks for Civil Engineering Paper-I is 200.

What is the time allowed for this paper?

The time allowed for this paper is Three Hours.
